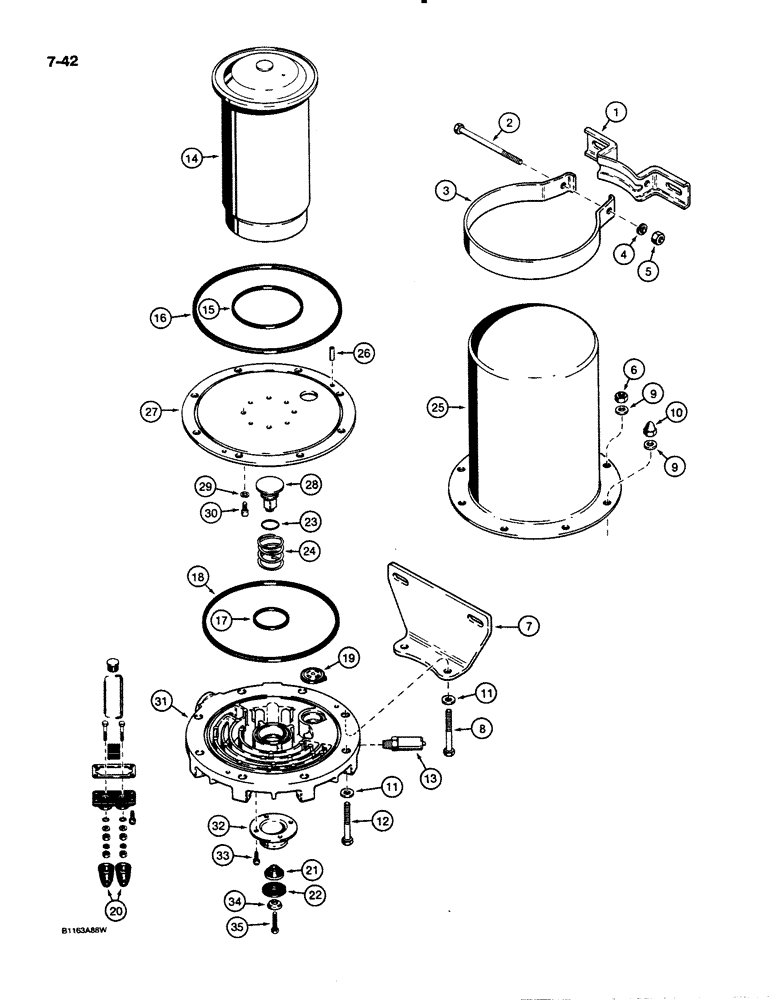

Запчасти Case 621 (7-42) - AIR DRYER, L124681 (07) - BRAKES

L124681

AIR CONDITIONER

DRYER ASSEMBLY - air, brake

1шт.

S300006

KIT

- mounting bracket

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

2

113-187

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

1шт.

3

NSS

NOT SOLD SEPARAT

STRAP - mounting

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - plate mounting

1шт.

8

114-260

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

- hex head, 3/8" - 24 NF x 2-1/2", grade 8

2шт.

9

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

8шт.

10

129-525

CROWN NUT,Crown, 3/8"-16

- dome, 3/8" - 16 NC

6шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

12

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

6шт.

13

S300008

VALVE

- safety

1шт.

S300007

KIT

- repair, air dryer

1шт.

14

109067A1

CARTRIDGE

- air dryer

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 4" ID

1шт.

S300011

SEAL KIT

KIT - seal and check valve

1шт.

16

NSS

NOT SOLD SEPARAT

RING - seal, cartridge cover to plate, 8" ID

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 2" ID

1шт.

18

NSS

NOT SOLD SEPARAT

RING - seal, dryer body to plate, 7" ID

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

20

S107727

BOOT

- thermostat terminal

2шт.

S300010

KIT

- valve and diaphragm

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - air dryer

1шт.

22

NSS

NOT SOLD SEPARAT

DIAGHRAGM - valve

1шт.

23

S113403

O-RING

SEAL - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - cartridge

1шт.

26

138-2031

PIN,3/16" x 7/8", Coiled

2шт.

27

NSS

NOT SOLD SEPARAT

PLATE - separation

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON - air dryer

1шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

30

165-142

HEX SOC SCREW,1/4" - 20 x 5/8"

BOLT - hex socket head, 1/4" - 20 NC x 5/8", plated

4шт.

31

NSS

NOT SOLD SEPARAT

BASE - air dryer, with heater element

1шт.

32

NSS

NOT SOLD SEPARAT

FLANGE - exhaust

1шт.

33

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- drive, round head, No. 10 x 5/8 inch

4шт.

34

NSS

NOT SOLD SEPARAT

WASHER - diaphragm retaining

1шт.

35

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.
