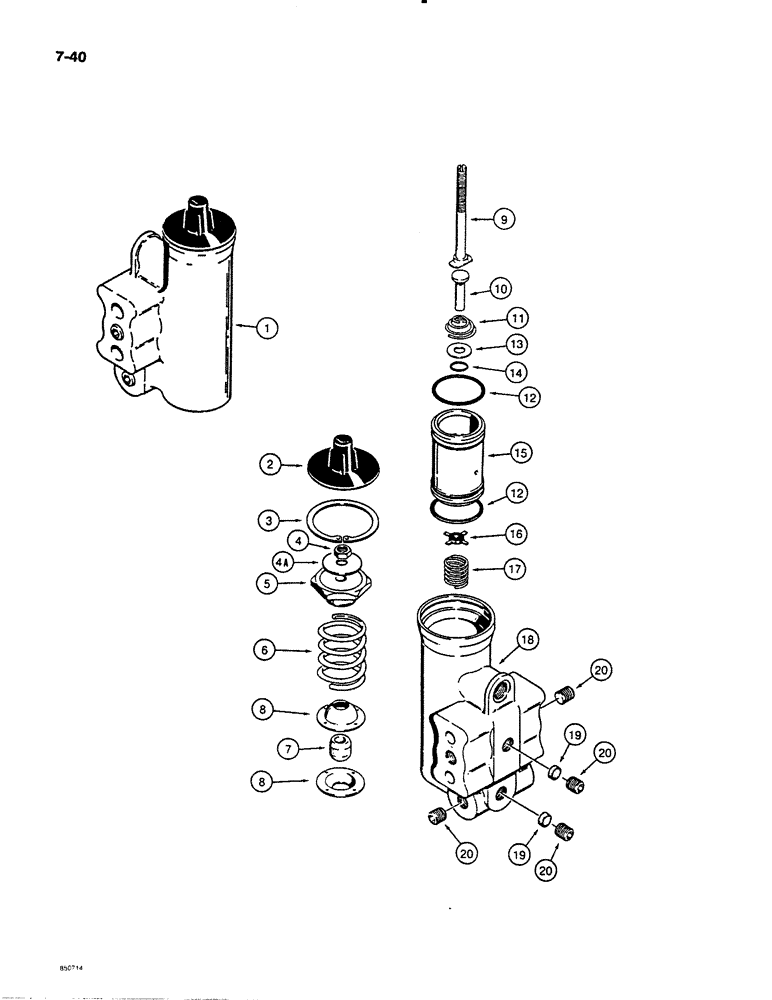

Запчасти Case 621 (7-40) - AIR COMPRESSOR GOVERNOR, D72831 (07) - BRAKES

1

D72831

GOVERNOR

ASSEMBLY - air compressor

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

Part of governor repair kit P/N L31808

1шт.

3

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , governor 1.50", Int, #150

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor

1шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

4a

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

L31532

STEM

- exhaust

1шт.

11

L31531

VALVE SPRING

SPRING - stem, exhaust

1шт.

12

L31499

O-RING,1" ID x 40546" OD x 3"

- piston

2шт.

Part of governor repair kit P/N L31808

1шт.

N13939

PISTON ASSY.

PISTON ASSEMBLY - governor

1шт.

13

L31541

WASHER

- special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- stem

1шт.

Part of governor repair kit P/N L31808

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - governor

1шт.

16

L31529

LOCK VALVE

VALVE - inlet and exhaust

1шт.

Part of governor repair kit P/N L31808

1шт.

17

L31530

SPRING

- valve, inlet and exhaust

1шт.

Part of governor repair kit P/N L31808

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - governor

1шт.

19

L31809

FILTER

- inlet and outlet ports

2шт.

Part of governor repair kit P/N L31808

1шт.

20

221-1849

PLUG

- hex, socket head, 1/8" NPT

4шт.

L31808

KIT

- governor repair, Includes Refs. 2, 12, 14, 16, 17 and 19

1шт.
