Запчасти Case 621 (7-38) - AIR COMPRESSOR (07) - BRAKES

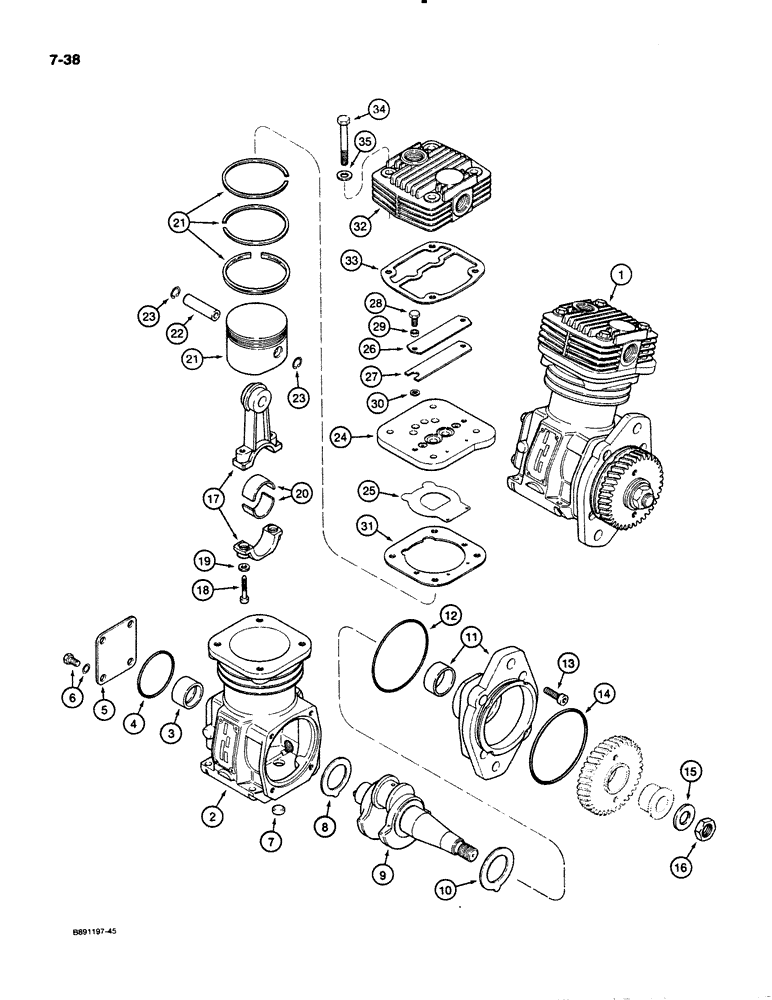

Схема запчастей Case 621 - (7-38) - AIR COMPRESSOR (07) - BRAKES
33
9
2
22
18
16
32
34
10
13
3
31
28
35
14
4
19
25
7
30
1
12
23
8
20
29
6
17
26
27
24
23
15
5
21
11
21

Артикул

Название

Примечание

Количество

1

J912703

COMPRESSOR

ASSEMBLY - air

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

N13160

BUSHING

- compressor housing

1шт.

4

A184123

O-RING,57 mm ID x 3 mm

- housing

1шт.

5

A184124

COVER

- compressor housing

1шт.

6

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

7

A184127

TUBE

PLUG - housing

2шт.

8

A184130

WASHER

- friction

1шт.

9

A189075

CRANKSHAFT

- compressor

1шт.

10

A184125

WASHER

- friction

1шт.

11

A184128

HOUSING

- flange

1шт.

Ref. 11, Bushing is P/N N13185.

1шт.

12

N13164

O-RING

- flange housing

1шт.

13

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

BOLT - hex socket, M8 x 25 mm

4шт.

14

A184133

O-RING,90 mm ID x 5 mm

- crankshaft cover

1шт.

15

895-11018

WASHER,M18 x 34 x 3

- crankshaft

1шт.

16

525-5110

NUT,M18 x 1.5, Cl 8

- hex, M18 x 1.5

1шт.

17

N13168

ROD

ASSEMBLY - connecting

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - hex socket, M6 x 35 mm

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - connecting rod

2шт.

20

N13167

BEARING LINER

BEARING - connecting rod

2шт.

21

A184131

PISTON

ASSEMBLY - compressor

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - piston

1шт.

23

NSS

NOT SOLD SEPARAT

RING - piston pin retaining

2шт.

24

N13171

VALVE

PLATE ASSEMBLY - valve; Incl. Refs. 25 - 30

1шт.

25

N13174

PLATE

VALVE - inlet

1шт.

26

NSS

NOT SOLD SEPARAT

STOP - delivery valve

1шт.

27

N13175

VALVE

- delivery

1шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex, M6 x 1.5 mm

2шт.

29

NSS

NOT SOLD SEPARAT

BUSHING - valve stop

2шт.

30

NSS

NOT SOLD SEPARAT

WASHER - delivery valve

1шт.

31

N13170

SEAL

- valve

1шт.

32

A184132

HEAD

- compressor

1шт.

33

N13172

SEAL

- compressor head

1шт.

34

514-612

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

- hex, 8 mm - 65 mm

4шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

Выбрано товаров: 36
