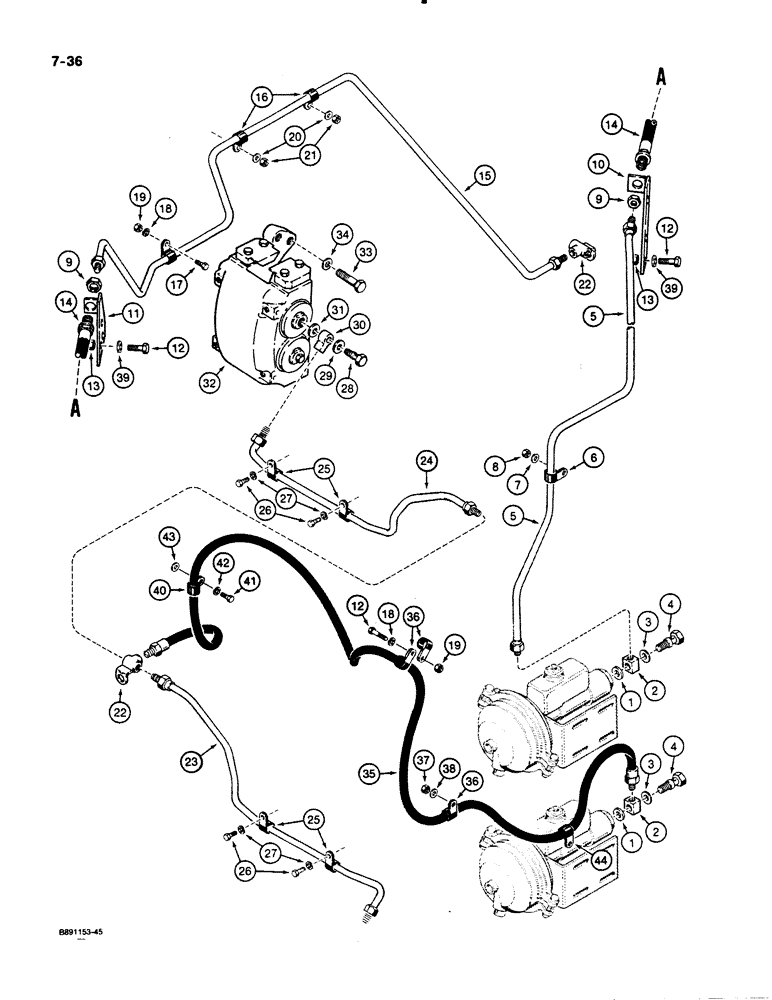

Запчасти Case 621 (7-36) - BRAKE ACTUATORS TO WHEEL CYLINDERS, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

1

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter, .540 inch (13.72 mm) ID, inner

2шт.

2

A18531

FITTING

- special

2шт.

3

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, brake actuator

2шт.

4

A12864

BOLT

- special, brake actuator

2шт.

5

L128121

TUBE,6.35 mm OD

- front brake, upper brake actuator to hose

1шт.

6

49851

SHIELD

- retaining

1шт.

7

S95569

WASHER

- flat, hardened

1шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

9

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

10

L119129

SUPPORT

BRACKET - brake hose, rear

1шт.

11

L119107

SUPPORT

BRACKET - brake hose, front

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

5шт.

13

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

14

L119035

HOSE,3.18 mm ID x 450.00 mm, SAE 1401

Brake 3.18 mm ID x 450.00 mm, SAE 1401

1шт.

15

L119024

TUBE,6.35 mm OD

- front brake, hose to front axle

1шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

3шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

S95569

WASHER

- flat, hardened

2шт.

21

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

22

L76365

FITTING

TEE - brake lines, at axles

2шт.

23

L124099

TUBE ASSY.,6.35 mm OD

TUBE - brake lines, left-hand front, not shown, and right-hand rear, shown (Replaces L126252)

2шт.

24

L124101

TUBE ASSY.,6.35 mm OD x 544, 475 mm L

TUBE - brake lines, right-hand front, not shown, and left-hand rear, shown

2шт.

25

A38799

CLAMP

- tubes, brake line

8шт.

26

413-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5

- hex, 1/4 NC x 3/8 inch

8шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

28

A12864

BOLT

- special, brake line tube to brake caliper

4шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, at brake line tube to brake caliper

4шт.

30

A18531

FITTING

- special

4шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter, .540 inch (13.72 mm) ID, inner

4шт.

32

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, service replacement part for L127646, parts list Figure 7-62

4шт.

32

L127645R

REMAN-BRAKE ASSY.

621 BSN JAK0027127

4шт.

32

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

33

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

34

L79179

WASHER

- flat, hardened

24шт.

35

L117847

HOSE,4.76mm ID x 1750mm L

Lower Actuator To Rear Axle 4.76 mm ID x 1750.00 mm, SAE J1401

1шт.

36

49838

CLAMP

- mounting, hose

3шт.

37

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

38

S95569

WASHER

- flat, hardened

1шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

40

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hose to rear axle

1шт.

41

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 20 mm

1шт.

42

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

44

49838

CLAMP

- mounting, hose, uses existing brake actuator mounting hardware

1шт.
