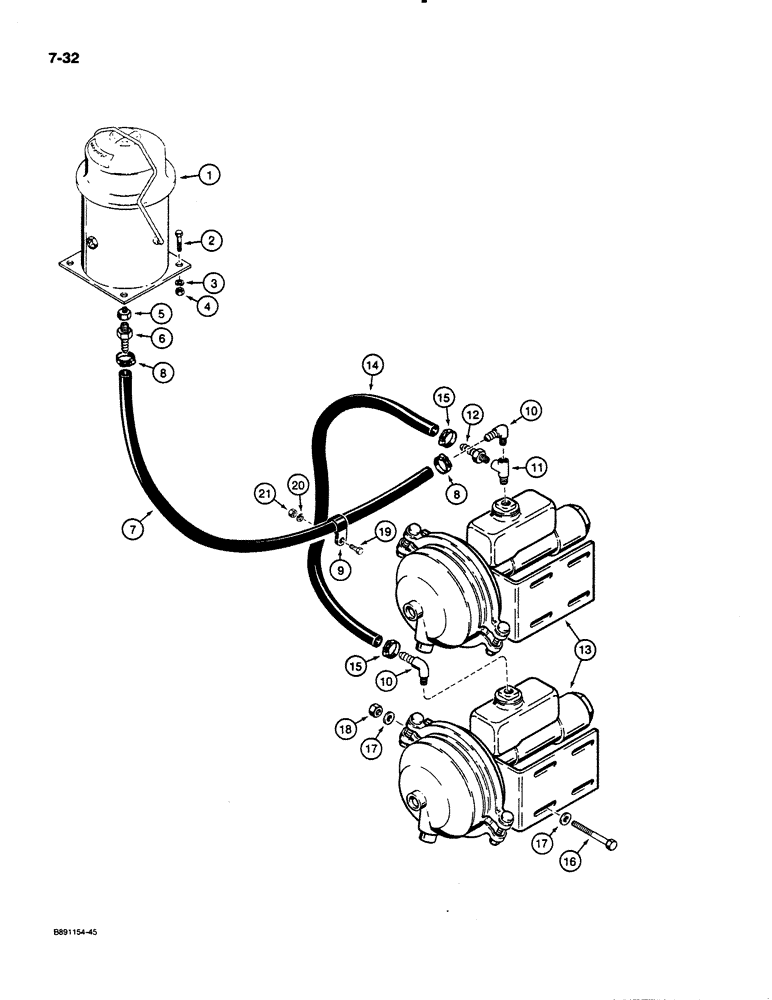

Запчасти Case 621 (7-32) - BRAKE FLUID RESERVOIR TO BRAKE ACTUATORS, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

1

L124318

RESERVOIR

ASSEMBLY - brake fluid, parts list Figure 7-58

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8 x 1/4 inch PT

1шт.

6

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 inch barb end x 1/4 inch PT

1шт.

7

L119048

HOSE,6.4 mm ID x 960.00 mm, SAE J1403

1шт.

42-1/8 inch (1070 mm) long, actuator supply

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

9

49838

CLAMP

- mounting, tube

1шт.

10

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 inch barb end x 1/4 inch PT

2шт.

11

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x male run x female run

1шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 inch barb end x 1/4 inch PT

1шт.

13

L113007

CYLINDER

ACTUATOR ASSEMBLY - brake, parts list Figure 7-50

2шт.

14

L109193

HOSE

- 1/4 (6 mm) x 1/2 (13 mm) x 15-1/2 inch (374 mm)

1шт.

cut from L109194 hose, see below

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

4шт.

17

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

8шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", if used

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

L109194

HOSE

- 1/4 inch (6 mm) x 1/2 inch (13 mm) x

1шт.

25 inch (635 mm) long

1шт.
