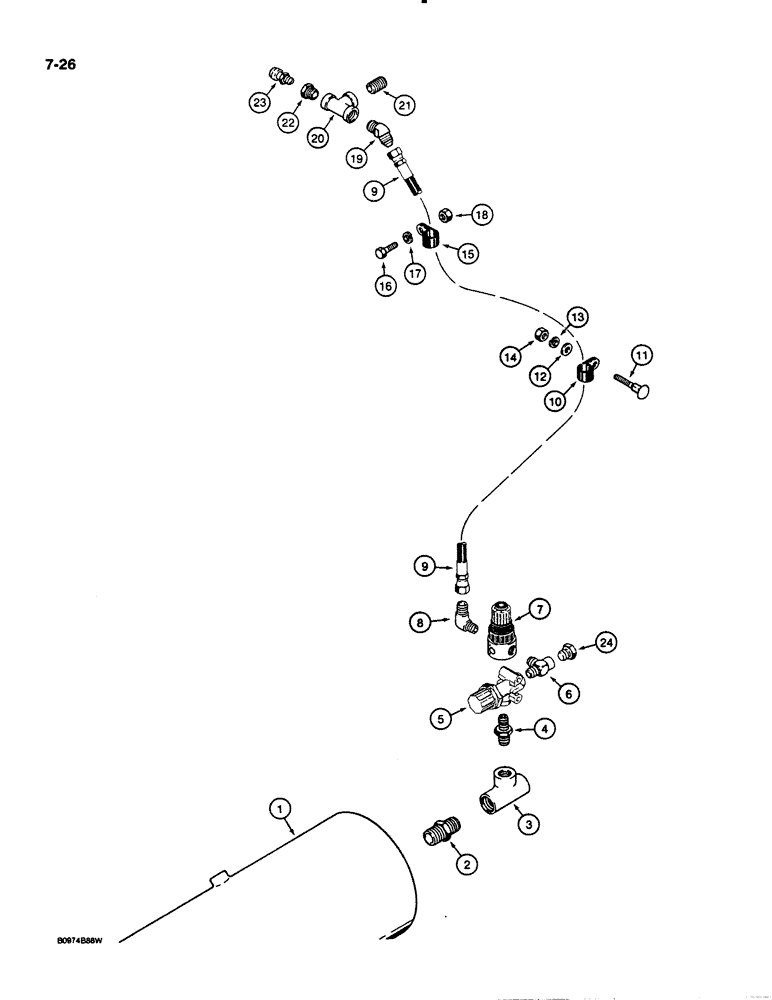

Запчасти Case 621 (7-26) - AIR RESERVOIR TO HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JAK0020901 (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system

1шт.

2

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

CONNECTOR - straight, air reservoir to tee at pressure protection valve

1шт.

3

217-1171

TEE,Female, 1/2"-14 x 3/8"-18 Br

- connector, at pressure protection valve

1шт.

4

217-1083

HYD CONNECTOR,3/8" - 18 NPTF x 1/4" - 18 NPTF

CONNECTOR - straight

1шт.

5

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-54

1шт.

6

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- 1/4" NPT

1шт.

7

L112300

VALVE

ASSEMBLY - pressure reducing, brake, parts list Figure 7-52

1шт.

8

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, pressure reducing valve to hydraulic reservoir hose

1шт.

9

L52184

HOSE

- 56" (1422 mm) long, to hydraulic reservoir

1шт.

10

49838

CLAMP

- hose, to hydraulic reservoir

1шт.

11

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

12

495-21044

WASHER,3/8"

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

49838

CLAMP

- hose, to bracket at upper hydraulic reservoir

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree

1шт.

20

221-422

TEE,Pipe, 1/4" NPT

- 1/4" NPT, hose to hydraulic reservoir

1шт.

21

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

22

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

23

D38663

VENT

VALVE - relief, hydraulic reservoir

1шт.

24

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.
