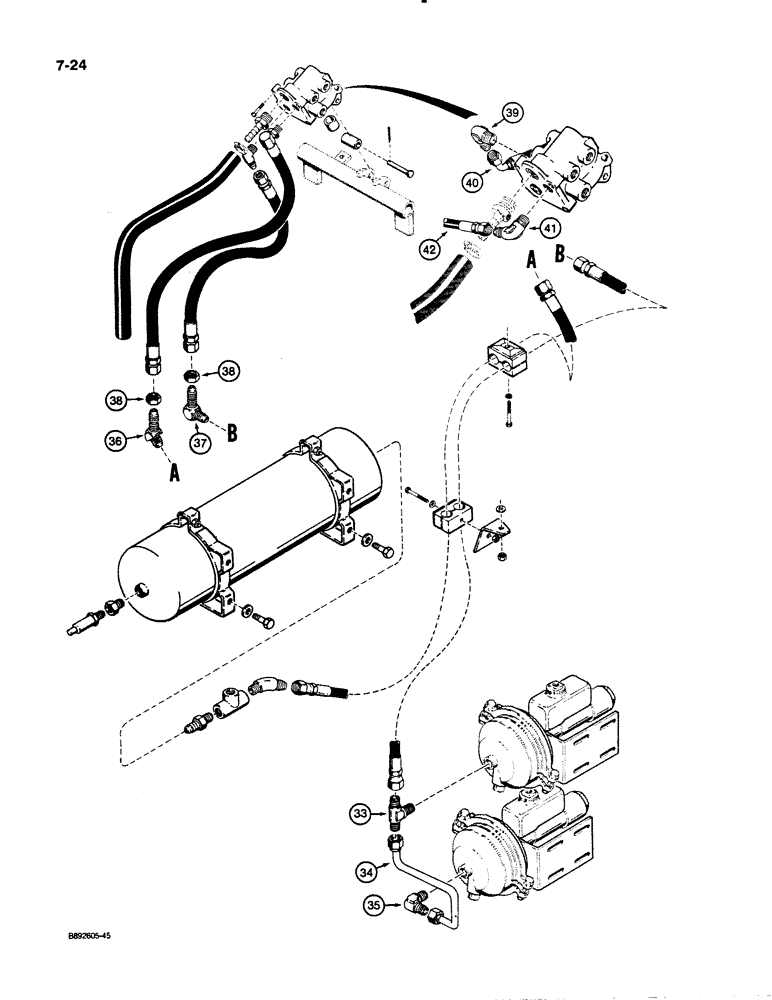

Запчасти Case 621 (7-24) - UPPER RESERVOIR TO BRAKE VALVE AND ACTUATORS, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

33

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

- 3/4-16 flare x 3/8 inch PT

1шт.

34

L125042

PIPE

TUBE - connecting, upper actuator to lower actuator

1шт.

35

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 x 3/8 inch PT

1шт.

36

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree, bulkhead, 3/4-16 inch

1шт.

37

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

38

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT, models, models with cab, Start Serial: JAB0076980

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT, models, canopy, Start Serial: JAB0086240

1шт.

40

1340427C1

HOSE

- 500 mm long, delivery, models with cab, Start Serial: JAB0076980

1шт.

40

1340427C1

HOSE

- 500 mm long, delivery, canopy, Start Serial: JAB0086240

1шт.

41

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, models with cab, Start Serial: JAB0076980

1шт.

41

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, canopy, Start Serial: JAB0086240

1шт.

42

1340426C1

HOSE

- 460 mm long, supply, models with cab, Start Serial: JAB0076980

1шт.

42

1340426C1

HOSE

- 460 mm long, supply, canopy, Start Serial: JAB0086240

1шт.
