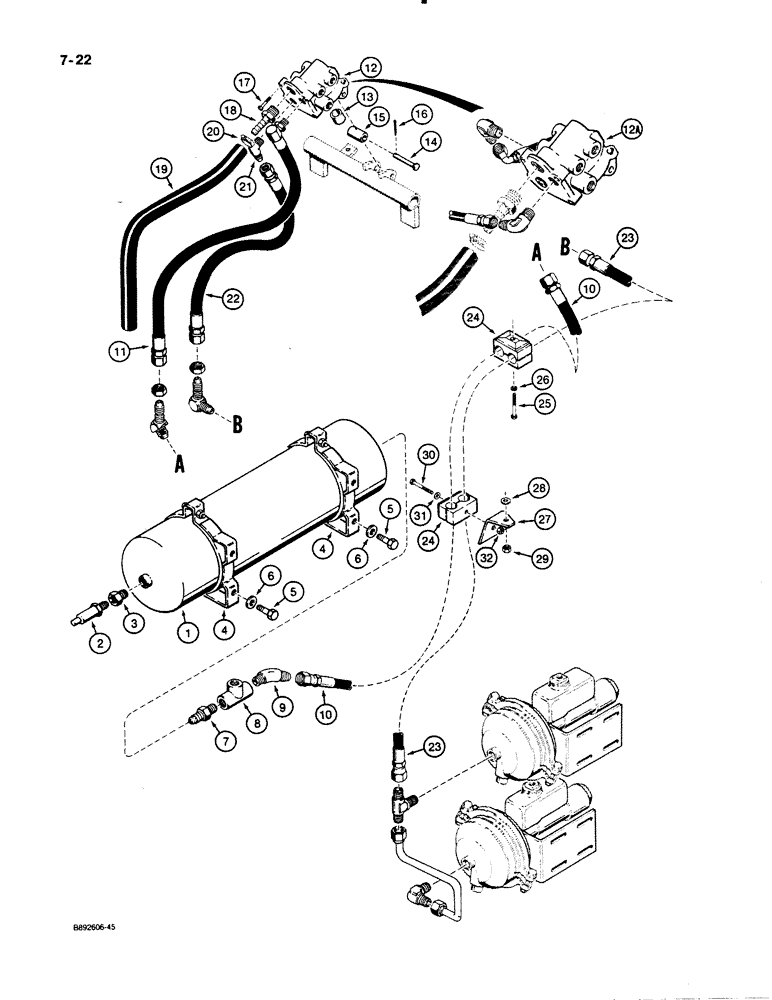

Запчасти Case 621 (7-22) - UPPER RESERVOIR TO BRAKE VALVE AND ACTUATORS, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system, upper

1шт.

2

L48992

VALVE,1/4"

- check, air reservoir, rear

1шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

4

L110438

SUPPORT

BRACKET - reservoir, mounting

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

4шт.

6

D41740

WASHER

- flat, hardened

4шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - straight, 1/2 PT x 1-7/8 inch

1шт.

8

217-1171

TEE,Female, 1/2"-14 x 3/8"-18 Br

- pipe, 1/2 x 1/2 x 3/8 inch PT

1шт.

9

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, 3/4-16 x 1/2 PT

1шт.

10

L119033

AIR HOSE,12.70 mm ID x 2175.00 mm, SAE J1402 A

Supply 12.70 mm ID x 2175.00 mm, SAE J1402 A

1шт.

11

1970015C1

HOSE

- 530 mm long, supply, models with cab, Serial Range: -JAB0076980

1шт.

11

1970015C1

HOSE

- 530 mm long, supply, models with canopy, Serial Range: -JAB0086240

1шт.

12

1970018C1

VALVE

ASSEMBLY - brake, parts list Figure 7-46, no longer available, order item 12A, 1970018C2 valve and (1) 221-1841 plug shown on Figure 7-46

1шт.

12a

1970018C2

VALVE

ASSEMBLY - brake, parts list Figure 7-46, item 5A

1шт.

13

L124593

TAPPET

PLUNGER - valve, brake

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, hardened

1шт.

15

1339691C1

SHIFTER ROLLER

ROLLER - brake actuating

1шт.

16

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

18

1340073C1

FITTING

ADAPTER - straight, 3/8 inch barb end x 1/2 inch PT

1шт.

19

1340074C1

HOSE

- 3/8 inch (10 mm) x 36 inch (914 mm) long

1шт.

exhaust, cut from 1338159C1 bulk hose, see below

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2-2 x 1/2 inch PT, models with cab, Serial Range: -JAB0076980

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2-2 x 1/2 inch PT, models with canopy, Serial Range: -JAB0076980

1шт.

22

1970016C1

HOSE

- 460 mm long, delivery, models with cab, Serial Range: -JAB0076980

1шт.

22

1970016C1

HOSE

- 460 mm long, delivery, models with canopy, Serial Range: -JAB0076980

1шт.

23

L127651

AIR HOSE,12.70 mm ID x 1950.00 mm, SAE J1402 A

Delivery 12.70 mm ID x 1950.00 mm, SAE J1402 A

1шт.

24

L107932

CLAMP

- double, includes both plastic halves and top

1шт.

steel plate

2шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

L119034

SUPPORT

BRACKET - mounting, delivery hose to rear frame, if used

1шт.

28

S95569

WASHER

- flat, 1/2", hardened, plated, if used

1шт.

29

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8, if used

1шт.

30

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

31

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

32

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 1 inch NC

1шт.

1338159C1

HOSE

- 3/8 inch (10 mm) x 100 ft (2540 mm) long

1шт.
