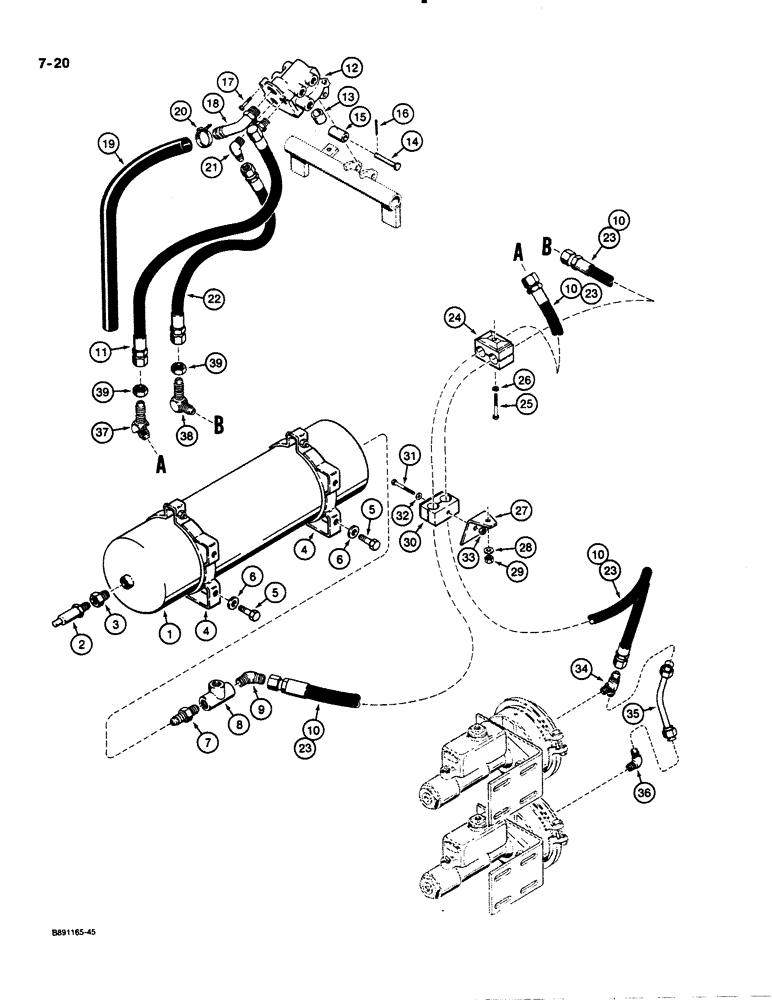

Запчасти Case 621 (7-20) - UPPER RESERVOIR TO BRAKE VALVE AND ACTUATORS, PRIOR TO P.I.N. JAK0020901 (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system, upper

1шт.

2

L48992

VALVE,1/4"

- check, air reservoir, rear

1шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

Check valve to air reservoir 1/2"-14 NPTF x 1/4"-18 Fem NPTF

1шт.

4

L110438

SUPPORT

BRACKET - reservoir, mounting

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

4шт.

6

D41740

WASHER

- flat, 3/8 x 1 x 1/8, hardened

4шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

CONNECTOR - straight, reservoir to tee at supply hose

1шт.

8

217-1171

TEE,Female, 1/2"-14 x 3/8"-18 Br

- special, connector at reservoir to supply hose

1шт.

9

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, tee to supply hose

1шт.

10

L119033

AIR HOSE,12.70 mm ID x 2175.00 mm, SAE J1402 A

Supply 12.70 mm ID x 2175.00 mm, SAE J1402 A

1шт.

Prior to P.I.N. JAK0020620 use Ref. 10 hose from air reservoir to cab floor plate and Ref. 23 hose from cab floor plate to upper brake actuator. For P.I.N. JAK0020620 through JAK0020900 reverse the hoses.

1шт.

11

1970015C1

HOSE

- 530 mm long, supply, floor plate to brake valve

1шт.

12

1970018C1

VALVE

ASSEMBLY - brake, parts list Figure 7-46

1шт.

13

L124593

TAPPET

PLUNGER - valve, brake

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8", special length

1шт.

15

1339691C1

SHIFTER ROLLER

ROLLER - brake actuating

1шт.

16

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

18

1970017C1

ELBOW

- 90 degree, special, brake valve to exhaust hose

1шт.

19

1970014C1

HOSE

- 5/8" (16 mm) x 24" (610 mm) long, exhaust

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, exhaust hose to brake valve

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, brake valve to delivery hose

1шт.

22

1970016C1

HOSE

- 460 mm long, delivery, brake valve to floor plate

1шт.

23

L119140

AIR HOSE,12.70 mm ID x 2325.00 mm, SAE 1402 A

Delivery 12.70 mm ID x 2325.00 mm, SAE 1402 A

1шт.

Prior to P.I.N. JAK0020620 use Ref. 10 hose from air reservoir to cab floor plate and Ref. 23 hose from cab floor plate to upper brake actuator. For P.I.N. JAK0020620 through JAK0020900 reverse the hoses.

1шт.

24

L107932

CLAMP

- double, includes both plastic halves and steel plate

2шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4", zinc plated

2шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

L119034

SUPPORT

BRACKET - mounting, delivery hose to rear frame

1шт.

28

S95569

WASHER

- flat, 1/2", hardened, plated

1шт.

29

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

1шт.

30

L107932

CLAMP

- double, includes both plastic halves and steel plate

1шт.

31

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 2-1/2", zinc plated

1шт.

32

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

34

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

- male, at upper brake actuator

1шт.

35

L118770

TUBE ASSY.,12.7 mm OD x 150, 60 mm L

TUBE - connecting, upper brake actuator to lower brake actuator

1шт.

36

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, tube to lower brake actuator

1шт.

37

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree, bulkhead

1шт.

38

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

39

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.
