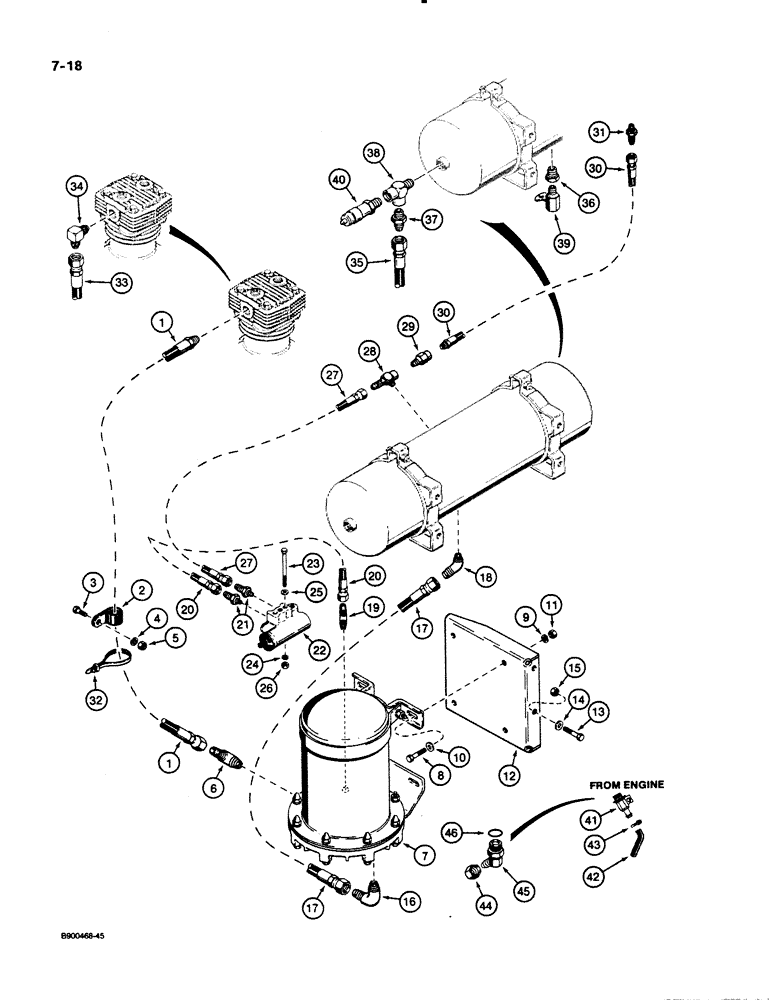

Запчасти Case 621 (7-18) - AIR DRYER SYSTEM (07) - BRAKES

1

L124683

HOSE ASSY.

HOSE - 1097 mm long, supply, air dryer, if used, models prior to P.I.N. JAK0020901

1шт.

2

49831

CLAMP

- hose

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, supply hose to air dryer

1шт.

7

L124681

AIR CONDITIONER

DRYER ASSEMBLY - air, brake, parts list Figures 7-42 and 7-44

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

495-21044

WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

L124670

BRACKET

- mounting, air dryer

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

14

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, air dryer to air dryer hose

1шт.

17

L119271

HOSE,12.7 mm ID x 614.00 mm, SAE J1402-A

Air Dryer to Air Reservoir, If Used 12.7 mm ID x 614.00 mm, SAE J1402-A

1шт.

18

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- 45 degree, air dryer hose to air reservoir, if used

1шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, air dryer to governor hose

1шт.

20

L125667

HOSE

- 600 mm long, air, Serial Range: dryer-governor

1шт.

21

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, at governor 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

22

D72831

GOVERNOR

ASSEMBLY - brake, parts list Figure 7-40

1шт.

23

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, 5/16", special, steel

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

L125667

HOSE

- 600 mm long, governor to tee at air reservoir

1шт.

28

L126259

TEE

- special, hoses to air reservoir

1шт.

29

L124443

FITTING

SNUBBER - air, air reservoir to air hose

1шт.

30

L124434

AIR HOSE,10.30 mm ID x 650.00 mm, SAE J1402 A

Air Reservoir to Low Air Switch 10.30 mm ID x 650.00 mm, SAE J1402 A

1шт.

31

218-861

HYD CONNECTOR,3/8", Tube x 1/4" NPTF, 37 Degree, Brass

ADAPTER - straight

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

L127403

HOSE ASSY.

HOSE - 850 mm long, supply, air dryer, if used, models P.I.N. JAK0020901 and after

1шт.

34

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, if used, models P.I.N. JAK0020901 and after

1шт.

35

L127055

HOSE,12.7 mm ID x 770.00 mm, SAE 1402-A

Air Dryer to Air Reservoir 12.7 mm ID x 770.00 mm, SAE 1402-A

1шт.

36

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8 x 1/4 inch PT, if used

1шт.

37

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 1/2 x 1/2 inch PT, if used

1шт.

38

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe, 1/2 inch PT, if used, see item 3 on page 7-21 or 7-23 for reducer used on some models

1шт.

39

L112624

LOCK VALVE

VALVE - drain, air reservoir, if used

1шт.

40

L48992

VALVE,1/4"

- check, air reservoir

1шт.

41

L125510

DRAIN VALVE

VALVE - drain, engine oil, no longer available, order items 44 and 45

1шт.

42

L127291

HOSE

- drain, engine oil, no longer available, order items 44 and 45

1шт.

43

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw, if used #4, 0.25/0.62 Type F Worm

1шт.

44

218-755

CAP,37 Degree, 3/4"-16

Use on models with air dryer system 37º, 3/4"-16

1шт.

45

CASL125989

ELBOW

- 45 degree, special, engine oil drain

1шт.

46

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

- 19/32 x 5/64 inch

1шт.
