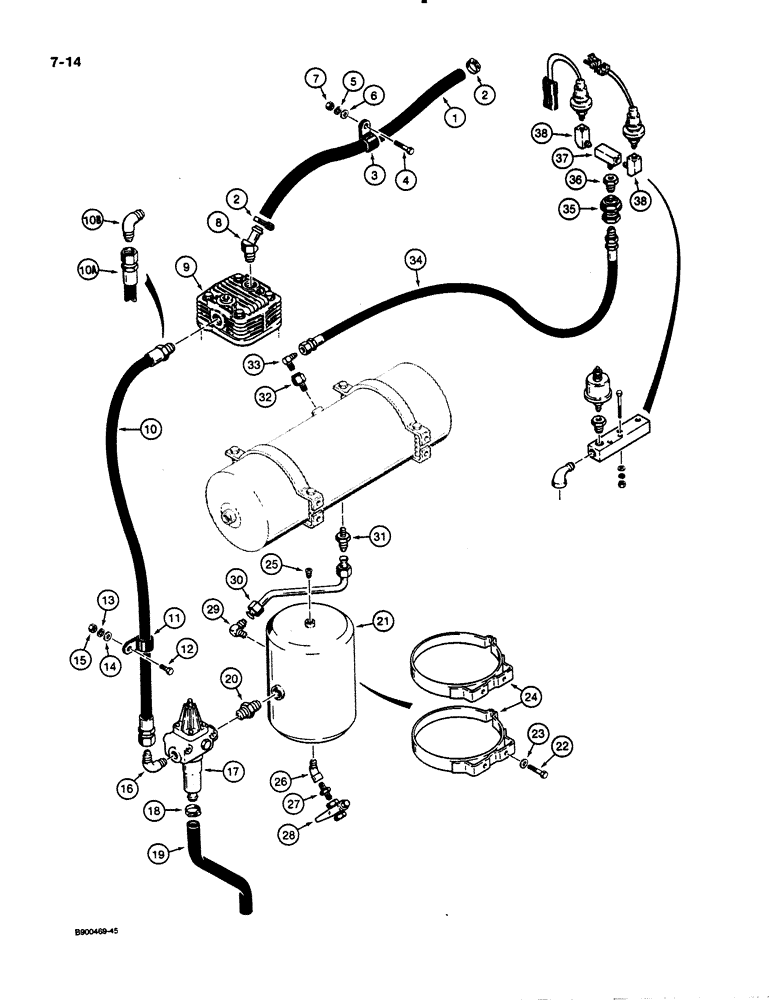

Запчасти Case 621 (7-14) - AIR COMPRESSOR INTAKE HOSE AND LOWER RESERVOIR (07) - BRAKES

1

L119235

INTAKE AIR HOSE,19.00 mm ID x 860.00 mm, SAE 20R1

Air Cleaner Tube to Air Compressor 19.00 mm ID x 860.00 mm, SAE 20R1

1шт.

2

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, to air cleaner elbow and elbow at air compressor

2шт.

3

D43364

CLAMP

- hose

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

495-21044

WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree, hose to air compressor

1шт.

9

J912703

COMPRESSOR

ASSEMBLY - air, parts list Figure 7-38

1шт.

10

L112994

HOSE,0.50" ID x 32.00"

Air Compressor to Unloading Valve, If Used 0.50" ID x 32.00"

1шт.

10a

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to lower reservoir, if used

1шт.

10b

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, if used

1шт.

11

49831

CLAMP

- hose, if used

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated, if used

1шт.

13

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

14

495-21044

WASHER,3/8"

If used 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

16

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, hose to unloading valve

1шт.

17

L115645

VALVE

ASSEMBLY - unloading, prior to P.I.N. JAK0020901, use with item 10, L112994 hose, parts list Figure 7-56

1шт.

18

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose to unloading valve

1шт.

19

L117793

INTAKE AIR HOSE,19.00 mm ID x 241.00 mm, SAE 20R1

Unloading Valve Drain 19.00 mm ID x 241.00 mm, SAE 20R1

1шт.

20

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

CONNECTOR - straight, unloading valve to lower reservoir

1шт.

21

L123951

RESERVOIR

- brake, lower

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

4шт.

23

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened

4шт.

24

L110438

SUPPORT

BRACKET - reservoir, lower

2шт.

25

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT, lower reservoir

1шт.

26

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street 45º, 3/8"-18 Female x 3/8"-18 Male

1шт.

27

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

CONNECTOR - straight

1шт.

28

L119050

DRAIN VALVE

VALVE - drain, air

1шт.

29

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, lower reservoir to tube

1шт.

30

L118768

TUBE,12.7 mm OD

- lower reservoir to upper air reservoir

1шт.

31

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, tube to air reservoir

1шт.

32

L124443

FITTING

SNUBBER - air, air reservoir to elbow at air hose

1шт.

33

218-881

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4", NPTF, Brass

- 90 degree, snubber to air hose

1шт.

34

L124434

AIR HOSE,10.30 mm ID x 650.00 mm, SAE J1402 A

Air Reservoir to Low Air Switch and Low Air Declutch Switch 10.30 mm ID x 650.00 mm, SAE J1402 A

1шт.

35

217-228

FITTING

ADAPTER - bulkhead, 1/4" NPT x 3/4"

1шт.

36

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4" NPT x 1/8" NPT

1шт.

37

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- 1/8" NPT, brass

1шт.

38

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street - brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.
