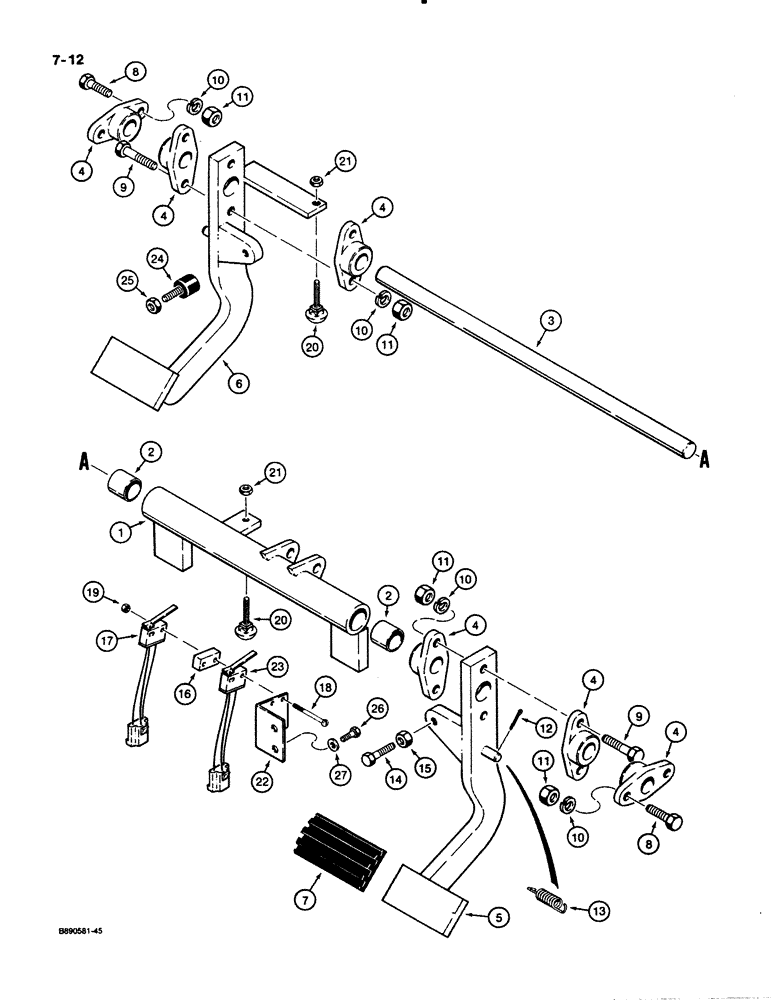

Запчасти Case 621 (7-12) - BRAKE PEDALS AND BRAKE SWITCHES, MODELS WITH 1977913C1 BRAKE PEDAL (07) - BRAKES

1

1977978C1

SHAFT

ASSEMBLY - brake, outer, pedal mounting

1шт.

2

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- brake shaft

2шт.

3

1339999C2

SHAFT

- brake, inner

1шт.

4

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- brake pedal

6шт.

5

1970044C1

PEDAL

- brake, right-hand

1шт.

6

1977913C1

PEDAL

- brake, left-hand

1шт.

7

1958503C1

PROTECTIVE COVER

COVER - pedal

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

4шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

12

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

4шт.

13

1970023C1

SPRING

- brake, mounts to clevis pin in upperpedestal cover

2шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

1977930C1

SPACER

- brake switch, left-hand

1шт.

17

A166333

SWITCH

- brake, declutch, left-hand brake pedal

1шт.

18

182-54

SCREW,Sl Pan Hd, #6 - 32 x 1 3/4"

- pan head slotted, No. 6-32 x 1-3/4 inch

2шт.

19

129-15

NUT,#6-32

2шт.

20

A181036

SQUARE BOLT

- special

2шт.

21

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

22

1977915C1

SUPPORT

BRACKET - brake light switch mounting, right-hand

1шт.

23

A166333

SWITCH

- brake lights

1шт.

24

F44935

BUMPER

- stop, brake pedal, Serial Range: mounted-cab

2шт.

25

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.
