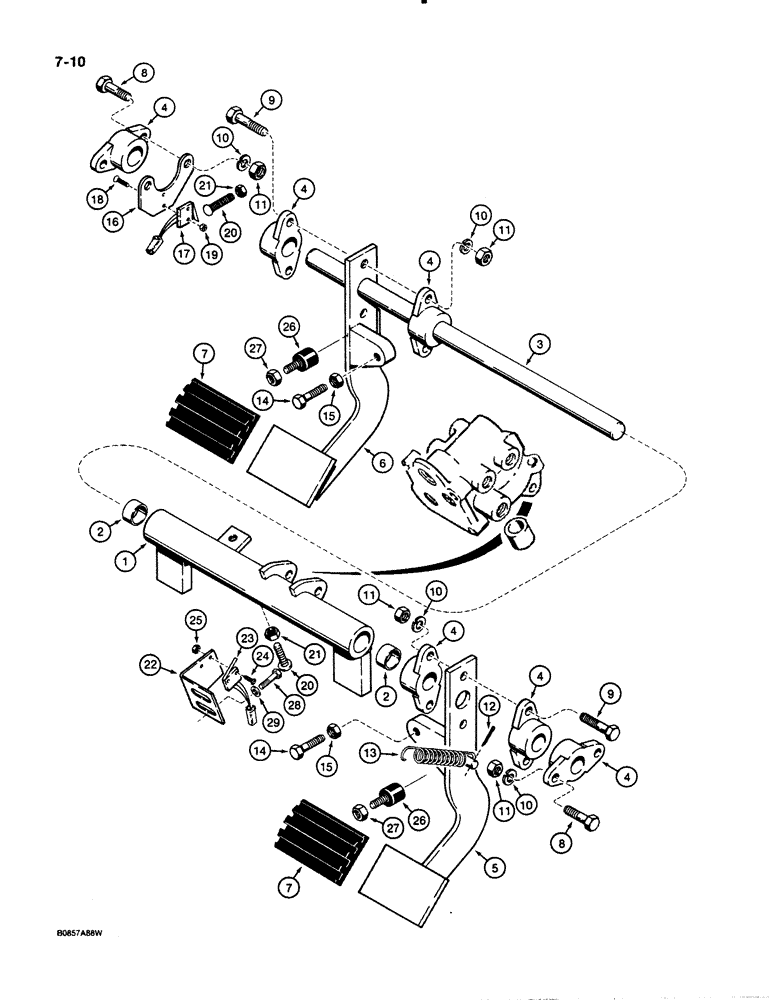

Запчасти Case 621 (7-10) - BRAKE PEDALS AND BRAKE SWITCHES, MODELS WITH 1970045C1 BRAKE PEDAL (07) - BRAKES

1

1970064C1

SHAFT ASSY.

SHAFT ASSEMBLY - brake, outer, pedal mounting

1шт.

2

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- brake shaft

2шт.

3

1339999C2

SHAFT

- brake, inner

1шт.

4

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- brake pedal

6шт.

5

1970044C1

PEDAL

- brake, right-hand

1шт.

6

1970045C1

PEDAL

- brake, left-hand

1шт.

7

1958503C1

PROTECTIVE COVER

COVER - pedal

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

12

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

4шт.

13

1970023C1

SPRING

- brake, mounts to clevis pin in upper pedestal cover

2шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

1970038C1

SUPPORT

BRACKET - mounting, left-hand brake switch

1шт.

17

A166333

SWITCH

- brake, declutch, left-hand brake pedal

1шт.

18

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head slotted, No. 6 - 32 NC x 3/4"

2шт.

19

129-15

NUT,#6-32

2шт.

20

A181036

SQUARE BOLT

- special

2шт.

21

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

22

1970039C1

SUPPORT

BRACKET - mounting, brake switch

1шт.

23

A166333

SWITCH

- brake lights

1шт.

24

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head slotted, No. 6 - 32 NC x 3/4"

2шт.

25

129-15

NUT,#6-32

2шт.

26

F44935

BUMPER

- stop, brake pedal, Serial Range: mounted-cab

2шт.

27

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

28

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.
