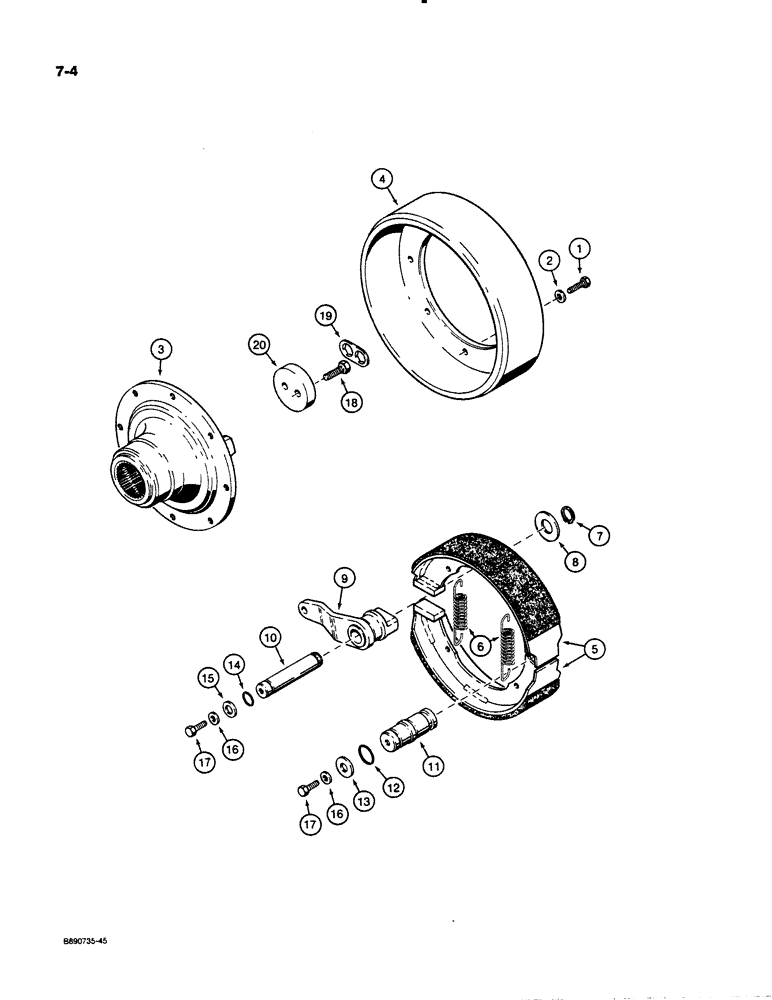

Запчасти Case 621 (7-04) - PARKING BRAKE, P.I.N. JAK0020901 AND AFTER (07) - BRAKES

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - P.I.N. JAK0020901 and after includes items 2 through 5 on Figure 6-36, items 12 through 16 and 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

1

30714R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.25 x 25, class 10.9

8шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, M10 x 20 x 2

8шт.

3

S300580

SHIN

FLANGE - output, parking brake, front

1шт.

4

S300478

BRAKE DRUM

DRUM, BRAKE DRUM - parking brake

1шт.

S300579

BRAKE, PARKING

PARKING BRAKE BRAKE ASSEMBLY - parking

1шт.

5

S300590

BRAKE PAD

PAD, BRAKE SHOE AND LINING ASSEMBLY - parking brake, components are not serviced separately or available in a kit

2шт.

6

3141953R1

SPRING

SPRING - shoe return

2шт.

7

933105R1

SNAP RING,M22, Ext

RING - snap, pin

1шт.

8

S300515

WASHER

WASHER - flat, pin

1шт.

9

S300516

BRAKE CAM

LEVER - includes cam, parking brake

1шт.

10

S300514

PIN

PIN - lever mounting

1шт.

11

S300513

PIN

PIN, Spacer - brake shoe

1шт.

12

S300481

O-RING,25.3mm ID x 2.4mm Width

O-RING - large

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-37 through 6-69 and 7-5

1шт.

13

S300480

WASHER

WASHER - flat, 33 mm OD x 15 mm ID x 6 mm wide right-hand

1шт.

14

3140876R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

O-RING - small

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-37 through 6-69 and 7-5

1шт.

15

3134279R1

WASHER

WASHER - flat, special, left-hand

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, M10 x 20 x 2

2шт.

17

931376R1

BOLT,Hex, M10 x 1.5 x 22mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.25 x 22, class 10.9

2шт.

18

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT - hex, 10 mm - 1.5 x 30 mm

4шт.

19

E135165

PLATE

PLATE, LARGE PLATE - locking

2шт.

SEAL FOR REF 18, S300580, IS E135151. (SHOWN ON Figure 6-62) 2/2/98 BW

1шт.

20

E135181

WASHER

RETAINER - flange

2шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 12 and 14 on Figures 6-36 through 6-68 and 7-4

1шт.
