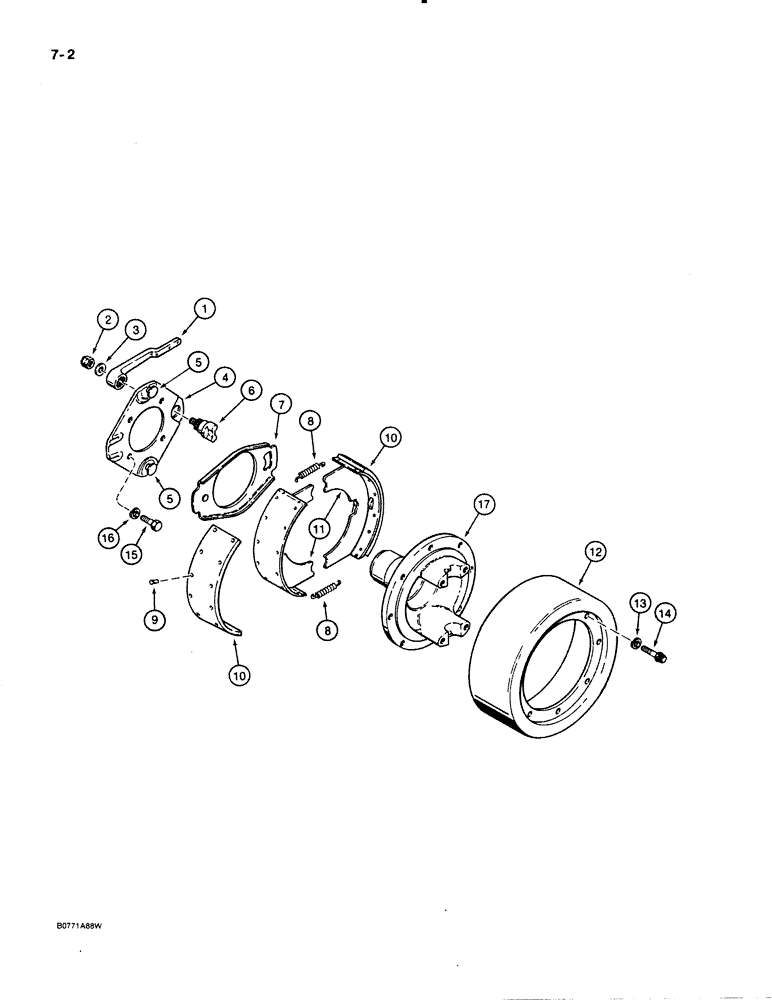

Запчасти Case 621 (7-02) - PARKING BRAKE, PRIOR TO P.I.N. JAK0020901 (07) - BRAKES

L123645

TRANSMISSION

ASSEMBLY - complete, with parking brake, prior to P.I.N. JAK0020620, parts list Figures 6-6 through 6-34, no longer available, order L127455

1шт.

L127455

TRANSMISSION

ASSEMBLY - complete, with parking brake, P.I.N. JAK0020620 through P.I.N. JAK0020900, see parts list Figures 6-6 through 6-34

1шт.

S300048

BRAKE ASSEMBLY - parking, for service order components below

1шт.

S300074

LEVER

ASSEMBLY - parking brake

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake actuating

1шт.

2

131-559

LOCK NUT,9/16"-18

NUT - hex, self-locking, 9/16" - 12 NC, special

1шт.

3

195-537

WASHER,9/16"

- flat, , plated 9/16"

1шт.

S300075

PLATE

ASSEMBLY - backing

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

5

S300080

SHIN

PIN - retaining, brake shoe

2шт.

6

S300076

CAMSHAFT

CAM - brake actuator

1шт.

7

S300077

STRUT

ACTUATOR - parking brake

1шт.

8

S300078

SPRING

- shoe return

2шт.

S300079

SHOE

AND LINING ASSEMBLY - parking brake

1шт.

9

NSS

NOT SOLD SEPARAT

RIVET -, Serial Range: lining-shoe

24шт.

10

NSS

NOT SOLD SEPARAT

LINING - brake shoe

2шт.

11

NSS

NOT SOLD SEPARAT

SHOE - parking brake

2шт.

12

S300049

BRAKE DRUM

DRUM - parking brake

1шт.

13

192-401

LOCK WASHER,3/8"

3/8"

8шт.

14

166-544

12 PT SCREW,Flg, 3/8" - 24 x 7/8", Gr 8

BOLT - Ferry head, 3/8" - 24 NF x 7/8", grade 8

8шт.

15

113-2412

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1 - 1/8", zinc plated

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

S300025

FLANGE

YOKE - output, front

1шт.

S300081

BRAKE LINING

KIT - lining and rivet, includes two linings and 24 rivets to service the entire parking brake

1шт.
