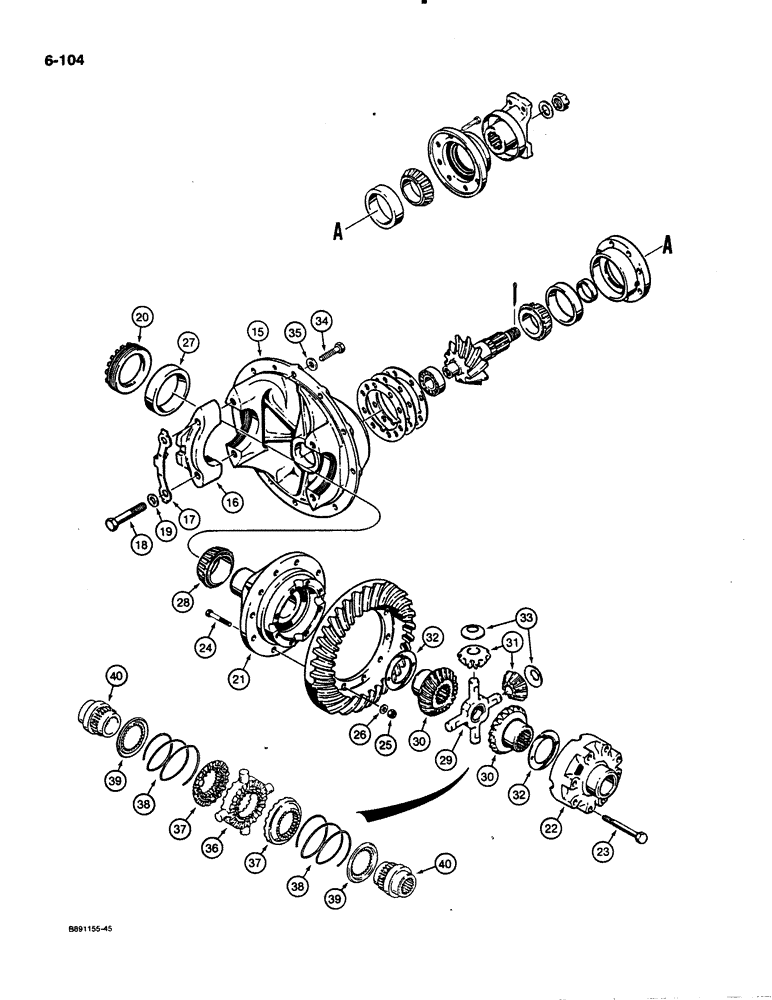

Запчасти Case 621 (6-104) - FRONT AND REAR AXLE DIFFERENTIAL, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127234

4WD AXLE ASSY

AXLE ASSEMBLY - front, continued, P.I.N. JAK0020901 and after, parts list Figures 6-94, 6-96, 6-102, and 6-104

1шт.

L127235

AXLE HOUSING

AXLE ASSEMBLY - rear, continued, P.I.N. JAK0020901 and after, parts list Figures 6-98 through 6-104

1шт.

L127236

AXLE HOUSING

AXLE ASSEMBLY - rear, with no-spin differential, continued, P.I.N. JAK0020901 and after, if used, parts list Figures 6-98 through 6-104

1шт.

S300715

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - L127234 and L127235 axles, without no-spin, continued from previous Figure

1шт.

S300715 differential assembly does not include Ref. 36 through 40 shown on this figure.

1шт.

S300767

DIFFERENTIAL

ASSEMBLY - L127236 rear axle, with no-spin, continued from previous Figure

1шт.

S300767 no-spin differential assembly does not include Ref. 29 through 33 shown on this figure.

1шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

17

D74484

PLATE ASSY.

PLATE - lock

2шт.

18

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex head, 16 mm - 2 x 90 mm, class 10.9

4шт.

19

D74504

WASHER

- flat

4шт.

20

D74477

NUT

- special

2шт.

D74449

CAGE ASSY.

CASE ASSEMBLY - differential

1шт.

21

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

22

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

23

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, 12 mm - 1.75 x 100mm, class 10.9, self-locking

8шт.

24

S300023

WHEEL BOLT

BOLT - special, ring, Serial Range: gear-case

12шт.

25

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

12шт.

26

D74508

WASHER

- special, 12 mm

12шт.

27

13363D

TAPERED BEARING

CUP - bearing

2шт.

28

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING - tapered roller

2шт.

29

N9844

TOGGLE

SPIDER - S300715 differential

1шт.

30

D74472

GEAR

- side, S300715 differential

2шт.

31

D74473

BEVEL GEAR

GEAR - pinion, S300715 differential

4шт.

32

D74474

WASHER

- thrust, side gear, S300715 differential

2шт.

33

N9843

CONE WASHER

WASHER - thrust, pinion, used with N9844 spider, S300715 differential

4шт.

34

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex head, 12 mm - 1.75 x 35 mm, self-locking

10шт.

35

D74508

WASHER

- flat, 12 mm

10шт.

L35996

TOGGLE

SPIDER AND GEAR ASSEMBLY - no-spin, S300767 differential

1шт.

36

L35997

TOGGLE

SPIDER - S300767 differential

1шт.

37

L35998

CLUTCH ASSEMBLY

CLUTCH - spider, S300767 differential

2шт.

38

L36000

VALVE SPRING

SPRING - spider, S300767 differential

2шт.

39

A44688

DIFFERENTIAL

RETAINER - spring, S300767 differential

2шт.

40

L35999

PINION

GEAR - side, outer, S300767 differential

2шт.
