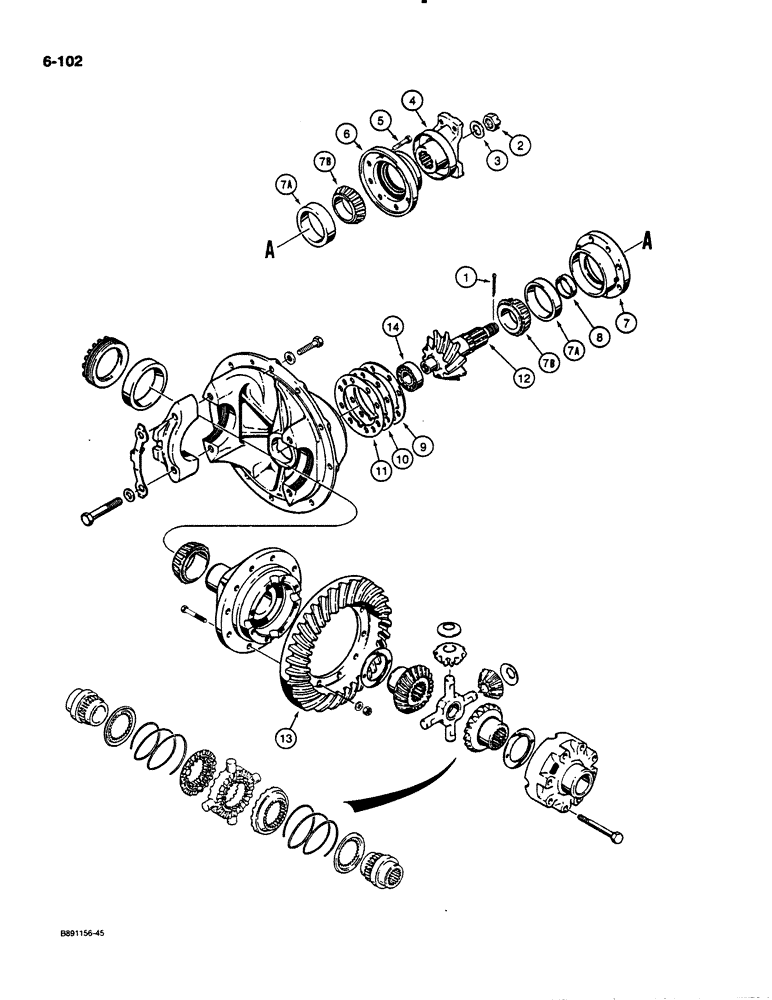

Запчасти Case 621 (6-102) - FRONT AND REAR AXLE DIFFERENTIAL, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127234

4WD AXLE ASSY

AXLE ASSEMBLY - front, P.I.N. JAK0020901 and after, parts list Figures 6-94, 6-96, 6-102, and 6-104

1шт.

L127235

AXLE HOUSING

AXLE ASSEMBLY - rear, P.I.N. JAK0020901 and after, if used, parts list Figures 6-98 through 6-104

1шт.

L127236

AXLE HOUSING

AXLE ASSEMBLY - rear, with no-spin differential, P.I.N. JAK0020901 and after, if used, parts list Figures 6-98 through 6-104

1шт.

S300715

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - L127234 and L127235 axles, without no-spin

1шт.

S300715 differential assembly does not include items 36 through 40 shown on Figure 6-104.

1шт.

S300767

DIFFERENTIAL

ASSEMBLY - L127236 rear axle, with no-spin

1шт.

S300767 no-spin differential assembly does not include items 29 through 33 shown on Figure 6-104.

1шт.

1

632-135

COTTER PIN,M3.2 x 45

PIN - cotter, 3 mm x 45 mm

1шт.

2

D74513

SLOTTED NUT

- castle, flange

1шт.

3

D74512

WASHER

- flat

1шт.

4

S300022

YOKE

FLANGE AND SLINGER - coupling

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex, 10 mm - 1.5 x 45 mm, class 10.9, self-locking

8шт.

6

D74479

COVER

AND SEAL - pinion shaft

1шт.

N7071

CAGE ASSY.

CAGE AND BEARINGS - pinion shaft

2шт.

7

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

7a

F61284

BEARING CUP

CUP - bearing

2шт.

7b

A44210

ROLLER BEARING,1.75" ID x 1.25"

BEARING - tapered roller

2шт.

D80557

SET

KIT - spacer, set of 10, use as required

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2145" (5.450 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2155" (5.475 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2165" (5.500 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2175" (5.525 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2185" (5.550 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2195" (5.575 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.2244" (5.700 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.228" (5.79 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.232" (5.89 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - 0.236" (5.99 mm)

1шт.

9

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

10

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

11

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

S300716

GEAR SET

AND PINION - differential

1шт.

If dealer is looking for a ring gear with 37 teeth, pinion gear with 8 teeth and a ring and pinion ratio of 4.62 : 1, order P/N S301452 Gear Set

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.
