Запчасти Case 621 (6-096) - FRONT AXLE HOUSING AND PLANETARY, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

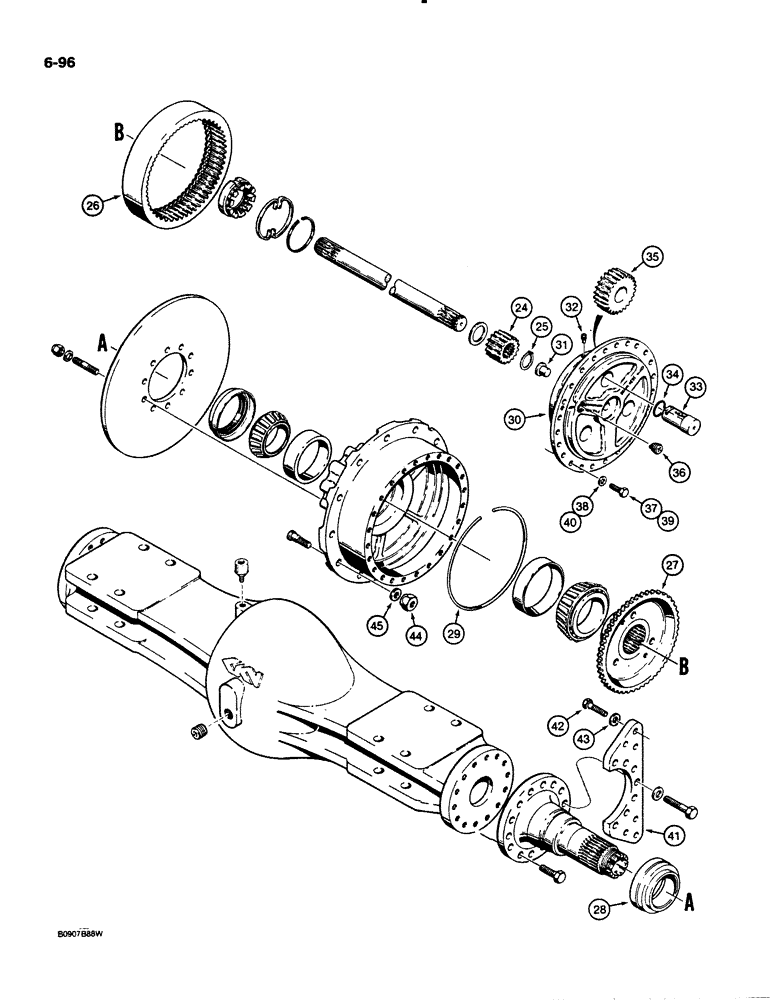

Схема запчастей Case 621 - (6-096) - FRONT AXLE HOUSING AND PLANETARY, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN
26
45
34
32
38
28
42
31
44
35
40
33
25
29
41
39
30
37
24
43
36
27

Артикул

Название

Примечание

Количество

L127234

4WD AXLE ASSY

AXLE ASSEMBLY - front, P.I.N. JAK0020901 and after, parts list Figures 6-94, 6-96, 6-102, and 6-104

1шт.

24

N9839

SUN GEAR

GEAR - sun, planetary

2шт.

25

K12922

RING, SNAP

RING - snap, sun gear

2шт.

26

N9835

SLEWING RING

GEAR - ring, planetary

2шт.

27

N9836

RING, FLYWHEEL

HUB - ring gear

2шт.

28

S300013

SPACER

- hub

2шт.

29

D74456

RING

- retaining, ring gear

2шт.

30

D74451

COVER

- planetary

2шт.

31

D74467

PLUG

- thrust

2шт.

32

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

- set, cover

6шт.

33

D74453

SHAFT

- pinion

6шт.

34

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

35

N9837

GEAR

- pinion, planetary

6шт.

36

D74516

PLUG

- cover

2шт.

37

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, 12 mm - 1.75 x 35 mm, (10.9), self-locking

46шт.

38

D74508

WASHER

- flat, 13 mm

46шт.

39

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex, 14 mm - 2 x 35 mm, (10.9), self-locking, oil drain

2шт.

40

D74509

WASHER

- flat, 15 mm

2шт.

41

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

42

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

24шт.

43

L79179

WASHER

- flat

24шт.

44

29-1712

NUT,3/4"-16, G8, Hvy

- hex, 3/4" - 16 NF (Replaces 25-1712)

48шт.

45

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened, plated

48шт.

Выбрано товаров: 23
