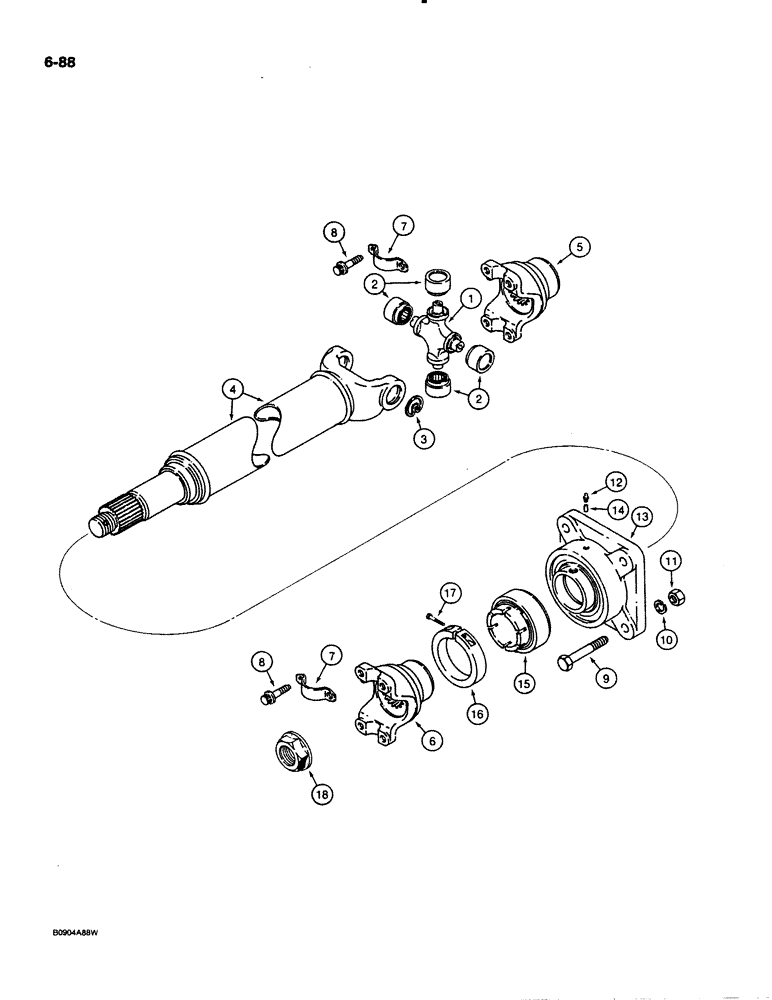

Запчасти Case 621 (6-088) - FRONT DRIVE SHAFT AND SUPPORT BEARING, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127280

SHAFT

DRIVE SHAFT ASSEMBLY - front axle

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

KIT - universal joint, journal and bearing, front drive shaft

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, front drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing, front drive shaft

4шт.

3

S92378

RING, SNAP

RING - retaining, universal joint, front drive shaft

4шт.

4

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end, front

1шт.

5

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see Figure 6-102, item 4

1шт.

6

L116944

YOKE

- drive shaft to center bearing, front

1шт.

7

L116943

SECURING STRAP

STRAP - bearing, front drive shaft

2шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Front drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

4шт.

9

413-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex, 9/16 NC x 1-3/4 inch, drive shaft support bearing

4шт.

10

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft support bearing 9/16"

4шт.

11

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING SUPPORT ASSEMBLY - front drive shaft

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, drive shaft support bearing

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, drive shaft support bearing

1шт.

14

L33788

AXLE PIN

PIN - lock, 1/4 inch diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, drive shaft support

1шт.

16

L33789

COLLAR

- bearing, drive shaft support

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch, drive shaft support bearing

1шт.

18

L117413

NUT

- hex, flanged, 1 inch NS, drive shaft support bearing

1шт.
