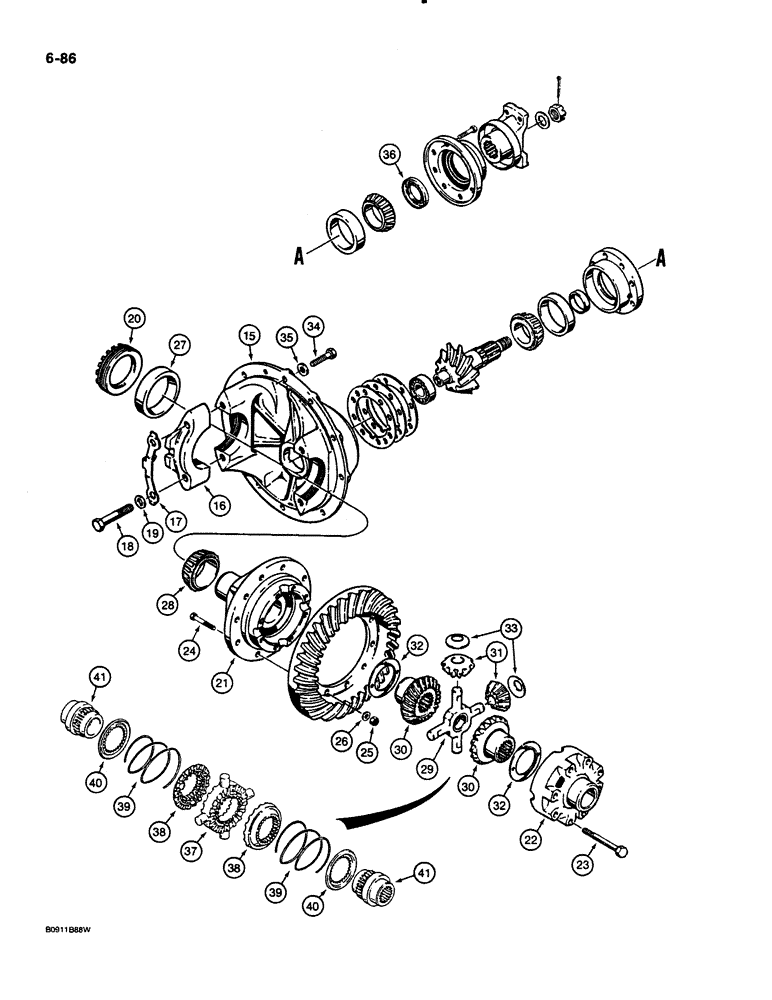

Запчасти Case 621 (6-086) - FRONT AND REAR AXLE DIFFERENTIAL, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

L123766

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12/10-0312, continued

1шт.

L123767

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10/10-318, continued

1шт.

L126305

AXLE HOUSING

AXLE ASSEMBLY - rear, no-spin, GKN No. RP10/10-322, continued

1шт.

S300018

DIFFERENTIAL

ASSEMBLY - axle, use on models with L123766 and L123767, continued

1шт.

S300324

DIFFERENTIAL

ASSEMBLY - axle, no-spin, use on models with L126305 axle, continued

1шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

17

D74484

PLATE ASSY.

PLATE - lock

2шт.

18

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex head, 16 mm - 2 x 90 mm, class 10.9

4шт.

19

D74504

WASHER

- flat

4шт.

20

D74477

NUT

- special

2шт.

D74449

CAGE ASSY.

CASE ASSEMBLY - differential

1шт.

21

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

22

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

23

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, 12 mm - 1.75 x 100mm, class 10.9, self-locking

8шт.

24

S300023

WHEEL BOLT

BOLT - special, ring, Serial Range: gear-case

12шт.

25

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

12шт.

26

D74508

WASHER

- special, 12 mm

12шт.

27

13363D

TAPERED BEARING

CUP - bearing

2шт.

28

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING - tapered roller

2шт.

29

N9844

TOGGLE

SPIDER - differential

1шт.

30

D74472

GEAR

- side, differential

2шт.

31

D74473

BEVEL GEAR

GEAR - pinion, differential

4шт.

32

D74474

WASHER

- thrust, side gear

2шт.

33

N9843

CONE WASHER

WASHER - thrust, pinion, used with N9844 spider

4шт.

34

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex head, 12 mm - 1.75 x 35 mm, self-locking

10шт.

35

D74508

WASHER

- flat, 12 mm

10шт.

36

N6265

OIL SEAL

SEAL - oil, if used

1шт.

L35996

TOGGLE

SPIDER AND GEAR ASSEMBLY - no-spin, L126305 rear axle, if used

1шт.

37

L35997

TOGGLE

SPIDER - differential

1шт.

38

L35998

CLUTCH ASSEMBLY

CLUTCH - spider

2шт.

39

L36000

VALVE SPRING

SPRING - spider

2шт.

40

A44688

DIFFERENTIAL

RETAINER - spring

2шт.

41

L35999

PINION

GEAR - side, outer

2шт.
