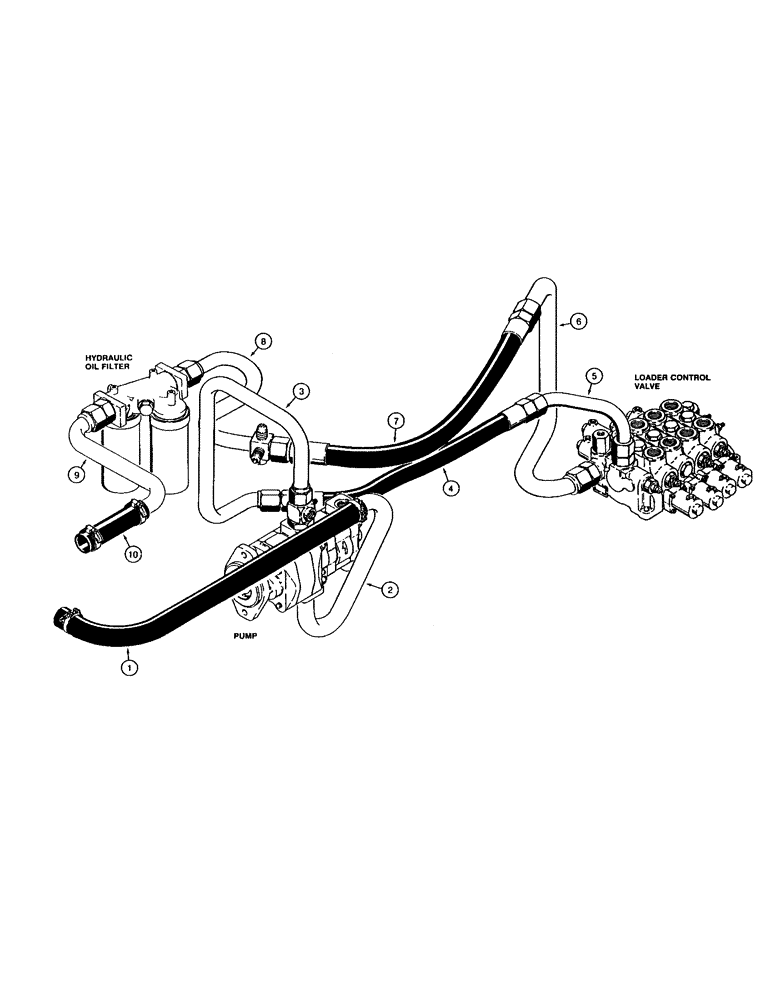

Запчасти Case 621 (1-16) - PICTORIAL INDEX, LOADER CONTROL VALVE SUPPLY AND RETURN LINES, PRIOR TO P.I.N. JAK0020901 (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir to formed tube at pump, Page 8-5

1шт.

2

Formed tube, from suction hose at hydraulic reservoir to pump, Page 8-5

1шт.

3

Formed supply tube, pump to hose to loader control valve, Page 8-5

1шт.

4

Supply hose, supply tube at pump to supply tube at loader control valve, Page 8-5

1шт.

5

Formed supply tube, at loader control valve, Page 8-5

1шт.

6

Formed return tube, from loader control valve to hose, Page 8-9

1шт.

7

Return hose, loader control valve to tube at hydraulic oil filter, Page 8-9

1шт.

8

Formed return tube, hose from loader control valve to hydraulic oil filter, Page 8-9

1шт.

9

Formed tube, hydraulic oil filter to hose at hydraulic reservoir, Page 8-11

1шт.

10

Hose, formed tube at hydraulic oil filter to hydraulic reservoir, Page 8-11

1шт.
