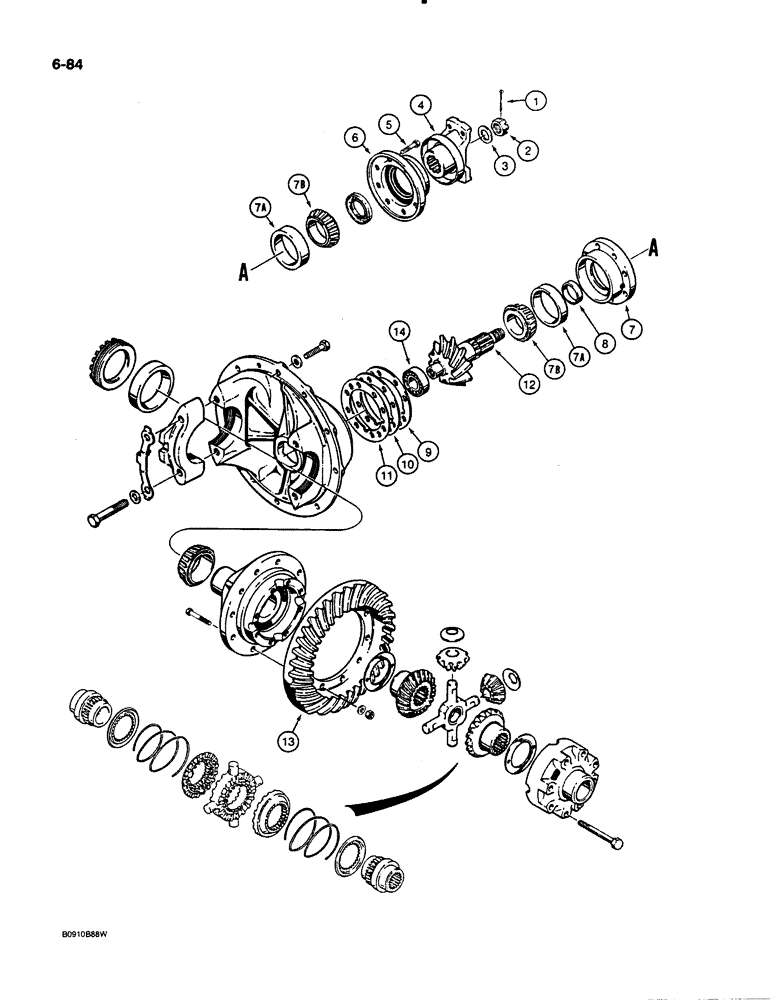

Запчасти Case 621 (6-084) - FRONT AND REAR AXLE DIFFERENTIAL, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

L123766

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12/10-0312

1шт.

L123767

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10/10-0318

1шт.

L126305

AXLE HOUSING

AXLE ASSEMBLY - rear, no-spin, GKN No. RP10/10-0322

1шт.

S300018

DIFFERENTIAL

ASSEMBLY - axle, use on models with L123766 or L123767 axles

1шт.

S300324

DIFFERENTIAL

ASSEMBLY - rear axle, no-spin, use on models with L126305 axle

1шт.

1

632-135

COTTER PIN,M3.2 x 45

PIN - cotter, 3 mm x 45 mm

1шт.

2

D74513

SLOTTED NUT

- castle, flange

1шт.

3

D74512

WASHER

- flat

1шт.

4

S300022

YOKE

FLANGE AND SLINGER - coupling

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex, 10 mm - 1.5 x 45mm, class 10.9, self-locking

8шт.

6

D74479

COVER

AND SEAL - pinion shaft

1шт.

7

N7071

CAGE ASSY.

CAGE AND BEARINGS - pinion shaft

2шт.

7a

F61284

BEARING CUP

CUP - bearing

2шт.

7b

A44210

ROLLER BEARING,1.75" ID x 1.25"

BEARING - tapered roller

2шт.

D80557

SET

KIT - spacer, set of 10

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2145" (5.450 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2155" (5.475 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2165" (5.500 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2175" (5.525 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2185" (5.550 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2195" (5.575 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2244" (5.700 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .228" (5.79 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .232" (5.89 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .236" (5.99 mm)

1шт.

9

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

10

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

11

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

D80555

GEAR WHEEL

GEAR AND PINION - differential

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.
