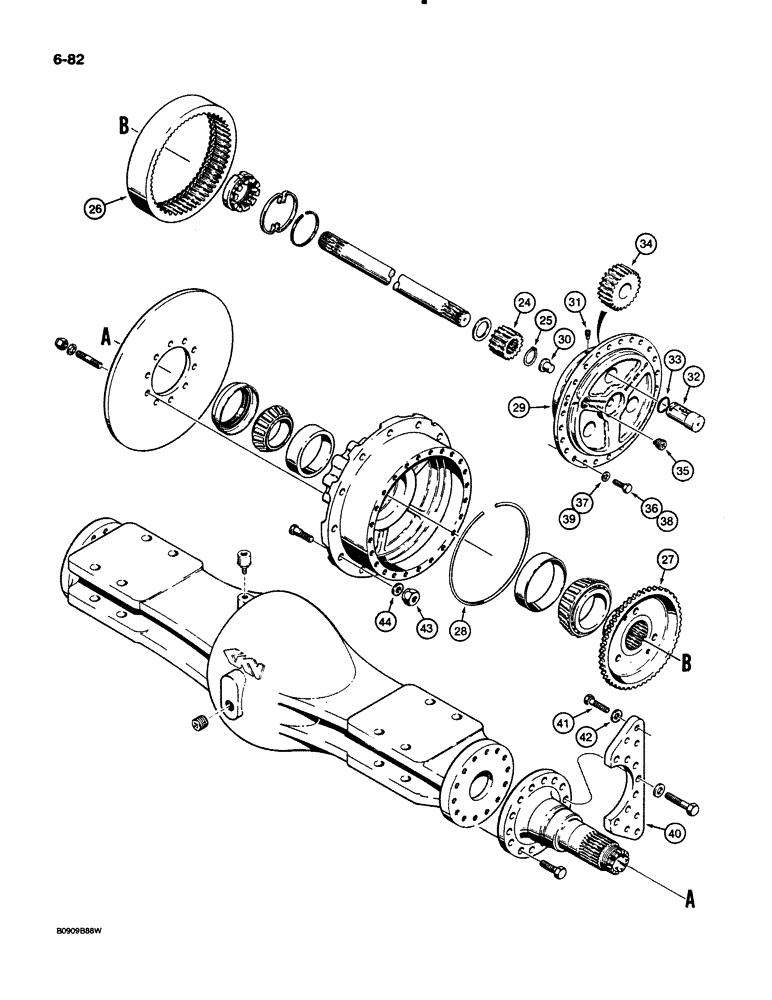

Запчасти Case 621 (6-082) - REAR AXLE HOUSING AND PLANETARY, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

L123767

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10/10-0318, continued

1шт.

L126305

AXLE HOUSING

AXLE ASSEMBLY - rear, no-spin, GKN No. RP10/10-0322, continued

1шт.

24

N9839

SUN GEAR

GEAR - sun, planetary

2шт.

25

K12922

RING, SNAP

RING - snap, sun gear

2шт.

26

N9835

SLEWING RING

GEAR - ring, planetary

2шт.

27

N9841

RING, FLYWHEEL

HUB - ring gear

2шт.

28

D74456

RING

- retaining, ring gear

2шт.

29

D74451

COVER

- planetary

2шт.

30

D74467

PLUG

- thrust

2шт.

31

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

- set, cover

6шт.

32

D74453

SHAFT

- pinion

6шт.

33

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

34

N9837

GEAR

- pinion, planetary

6шт.

35

D74516

PLUG

- cover

2шт.

36

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex head, 12 mm - 1.75 x 35 mm, class 10.9, self-locking

46шт.

37

D74508

WASHER

- flat, 13 mm

46шт.

38

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex head, 14 mm - 2 x 35 mm, class 10.9, self-locking, oil drain

2шт.

39

D74509

WASHER

- flat, 15 mm

2шт.

40

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

41

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

24шт.

42

L79179

WASHER

- flat

24шт.

43

29-1712

NUT,3/4"-16, G8, Hvy

- hex, 3/4" - 16 NF (Replaces 25-1712)

48шт.

44

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 3/4", hardened, plated

48шт.
