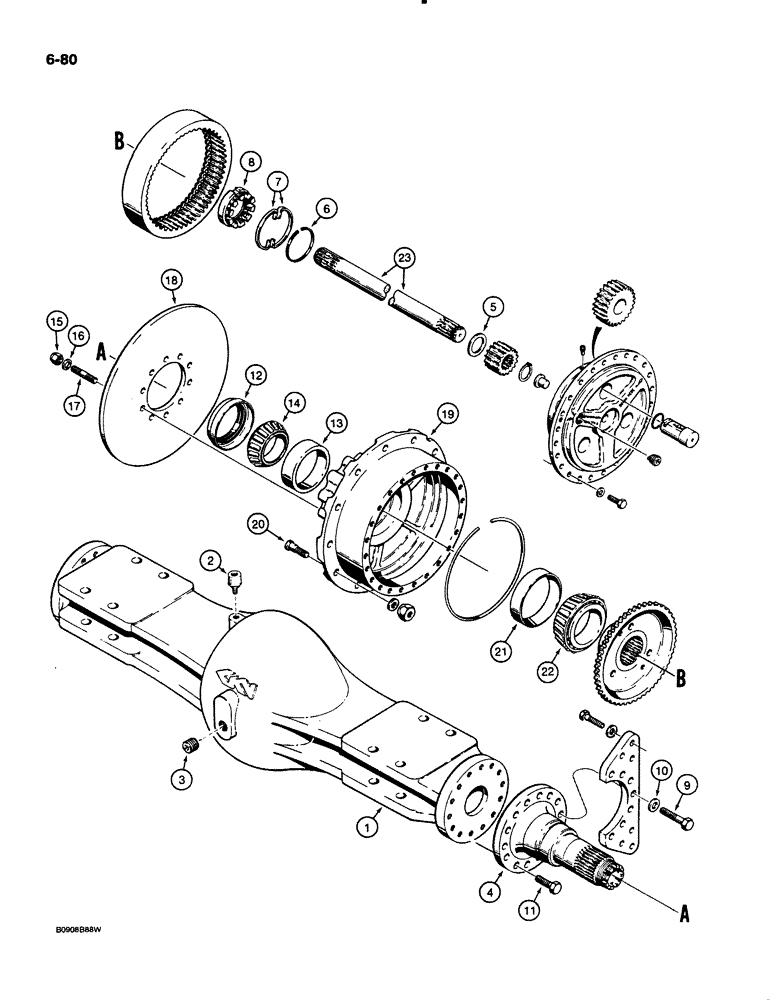

Запчасти Case 621 (6-080) - REAR AXLE HOUSING AND PLANETARY, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

L123767

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10/10-0318

1шт.

L126305

AXLE HOUSING

AXLE ASSEMBLY - rear, no-spin, GKN No. RP10/10-0322

1шт.

1

S300017

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

Ref #2A - S301626 Breather, installed after running change in June 93. No Sub 04/19/96

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300021

SHAFT

SPINDLE - rear axle

2шт.

5

D77572

WASHER

- thrust, spindle

2шт.

6

D77571

VALVE SPRING

RING - snap

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex head, 20 mm - 2.5 x 80mm, class 10.9, self-locking

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex head, 20 mm - 2.5 x 55mm, class 10.9, self-locking

14шт.

12

S300019

OIL SEAL

- hub

2шт.

13

A7892

BEARING, CUP

CUP - bearing

2шт.

14

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING - tapered roller

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

S300020

BRAKE DISC

DISC - brake

2шт.

19

D74450

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - press in

24шт.

21

64371H

BEARING ASSY

CUP - bearing

2шт.

22

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

BEARING - tapered roller

2шт.

23

D74465

SHAFT

- axle, left-hand front and right-hand rear, 39.724" (1009mm) long

1шт.

23

D74466

SHAFT

- axle, right-hand front and left-hand rear, 42.008" (1067mm) long

1шт.
