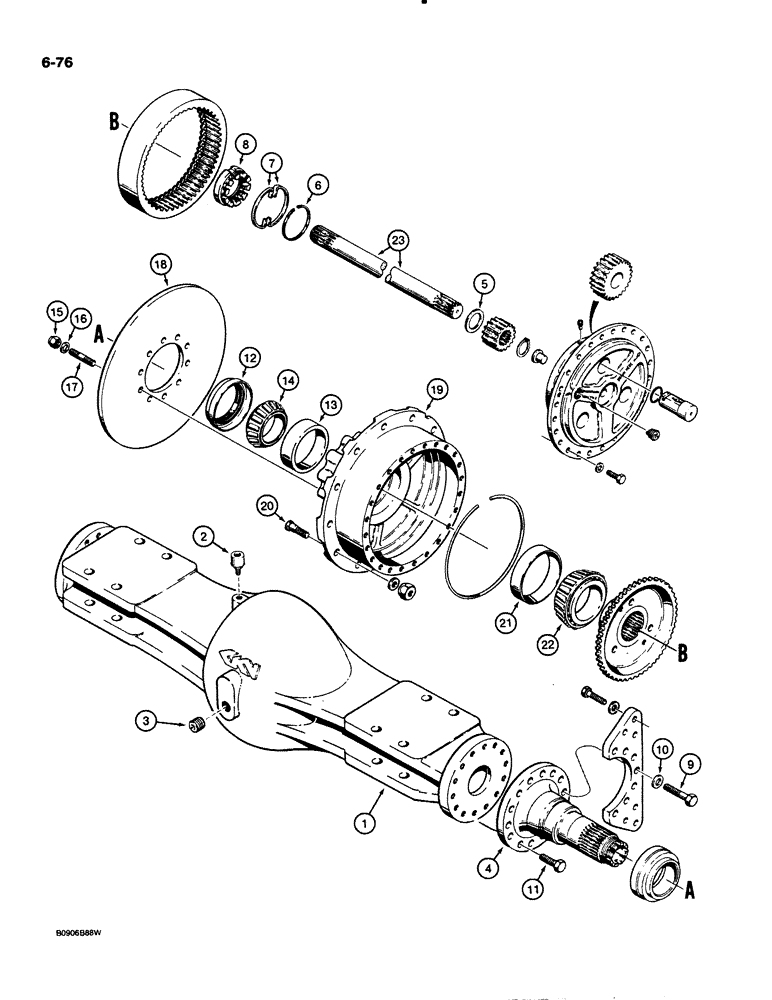

Запчасти Case 621 (6-076) - FRONT AXLE HOUSING AND PLANETARY, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

L123766

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12/10-0312

1шт.

1

S300017

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

Ref #2A - S301626 Breather, installed after running change in June 93. No Sub 04/19/96

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300014

SHAFT

SPINDLE - front axle

2шт.

5

D77572

WASHER

- thrust, spindle

2шт.

6

D77571

VALVE SPRING

RING - spring

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex head, 20 mm - 2.5 x 80mm, (10.9), self-locking

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex head, 20 mm - 2.5 x 55mm, (10.9), self-locking

14шт.

12

S300015

OIL SEAL

SEAL - hub

2шт.

13

ST982

BEARING CUP

CUP - bearing

2шт.

14

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

BEARING - tapered roller

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

S300016

BRAKE DISC

DISC - brake

2шт.

19

N9830

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - press in

24шт.

21

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - bearing

2шт.

22

L35045

ROLLER BEARING

BEARING - tapered roller

2шт.

23

D74465

SHAFT

- axle, left-hand front and right-hand rear, 39.724" (1009mm) long

1шт.

23

D74466

SHAFT

- axle, right-hand front and left-hand rear, 42.008" (1067mm) long

1шт.
