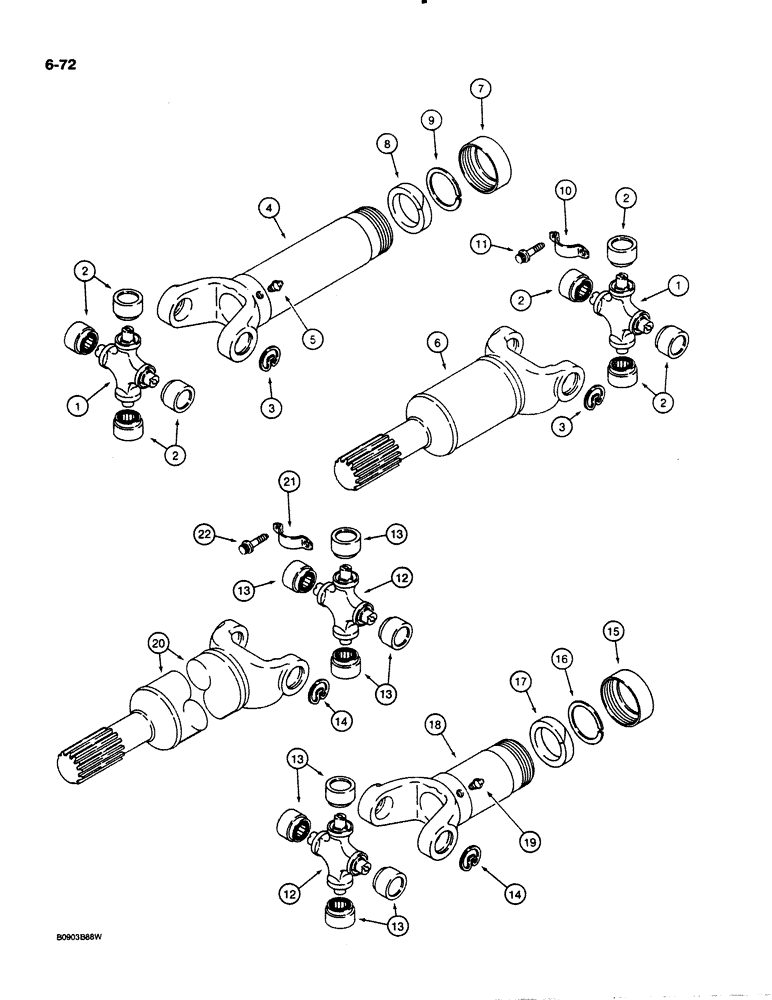

Запчасти Case 621 (6-072) - CENTER AND REAR DRIVE SHAFT, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L118696
SHAFT
ASSEMBLY - drive, center
1шт.
S300313
SPIDER ASSY.,35.1mm Cap Dia, 126mm L
KIT - universal joint, journal and bearing, center drive shaft
2шт.
1
NSS
NOT SOLD SEPARAT
JOURNAL - universal joint, center drive shaft
1шт.
2
NSS
NOT SOLD SEPARAT
RACE - bearing, center drive shaft
4шт.
3
S92378
RING, SNAP
RING - retaining, universal joint, center drive shaft
4шт.
4
N13547
YOKE
- slip, center drive shaft
1шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT, center drive shaft
1шт.
6
S300001
SHAFT
YOKE - spline, center drive shaft
1шт.
7
S85992
CAP COVER
CAP - dust, drive shaft, center
1шт.
8
S85994
WASHER
- cork, center drive shaft
1шт.
9
S88377
WASHER
- metal, center drive shaft
1шт.
10
L116943
SECURING STRAP
STRAP - bearing, center drive shaft
4шт.
11
12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8
BOLT, , Special, Bearing strap, Center drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8
8шт.
L118695
SHAFT
ASSEMBLY - drive, rear axle
1шт.
S300313
SPIDER ASSY.,35.1mm Cap Dia, 126mm L
UNIVERSAL JOINT ASSEMBLY - drive shaft, rear
2шт.
12
NSS
NOT SOLD SEPARAT
JOURNAL - universal joint, rear drive shaft
1шт.
13
NSS
NOT SOLD SEPARAT
RACE - bearing, rear drive shaft
4шт.
14
S92378
RING, SNAP
RING - retaining, universal joint, rear drive shaft
4шт.
15
S85992
CAP COVER
CAP - yoke end, rear drive shaft
1шт.
16
S88377
WASHER
- metal, rear drive shaft
1шт.
17
S85994
WASHER
- cork, rear drive shaft
1шт.
18
D47592
HALF SHAFT
YOKE - slip, rear drive shaft
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT, rear drive shaft
1шт.
20
S300000
SHAFT
YOKE - spline, rear drive shaft
1шт.
21
L116943
SECURING STRAP
STRAP - bearing, rear drive shaft
4шт.
22
12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8
BOLT, , Special, Bearing strap, Rear drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8
8шт.
Выбрано товаров: 26
