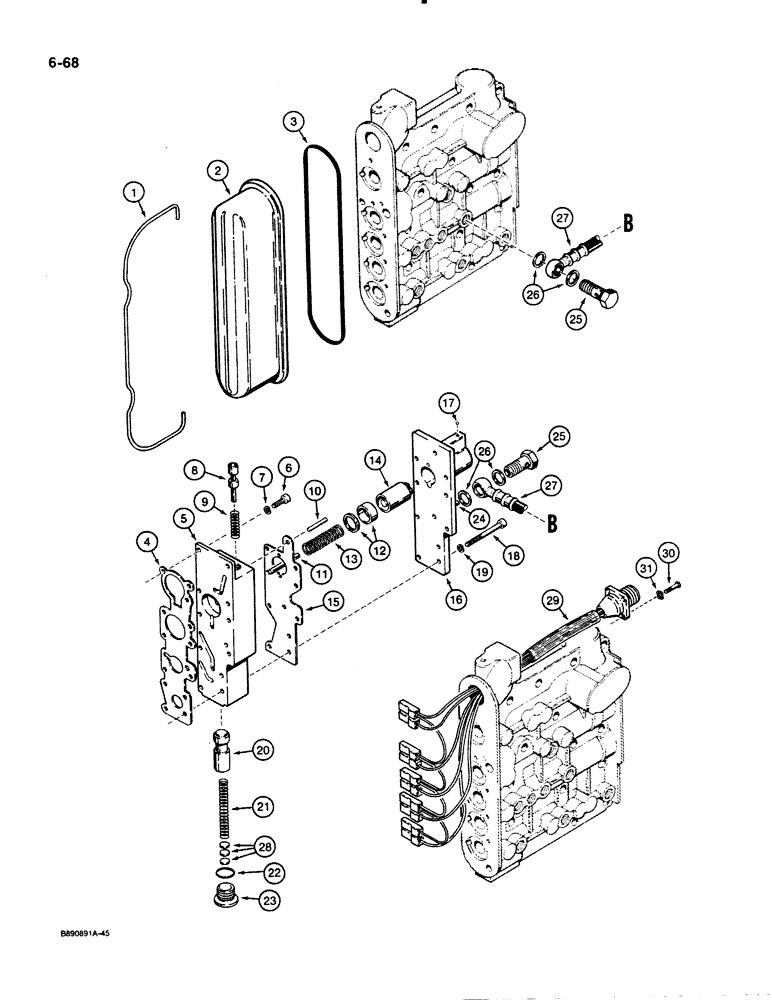

Запчасти Case 621 (6-068) - TRANSMISSION ASSEMBLY, CONTROL VALVE, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

S300492

VALVE

VALVE ASSEMBLY - transmission control, see Figure 6-66

1шт.

*

for additional components

1шт.

1

E135183

CLAMP

CLAMP - wire, solenoid cover

1шт.

2

E135190

PROTECTIVE COVER

COVER - solenoid

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

4

S300545

GASKET

GASKET - section, intermediate valve

1шт.

Ref #4A - S301595 for Non-Asbestos Gasket 04/19/96

1шт.

Ref #4 - (Asbestos) 04/19/96

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

5

S300556

LARGE PLATE

PLATE, LARGE SECTION - valve,intermediate

1шт.

6

S300557

SCREW

BOLT - hex, 5 mm - 0.8 x 16 mm

2шт.

7

892-1005

LOCK WASHER

WASHER - lock, 5 mm

2шт.

8

E135000

VALVE POPPET

SPOOL - relief

1шт.

9

E135139

SPRING

SPRING - relief spool, 9.45 mm OD x 29.9 mm

1шт.

10

S300558

DOWEL

PIN - dowel, 4 mm OD x 25 mm

1шт.

11

S300563

NEEDLE

ROLLER - needle

1шт.

12

S300564

SHIM

SHIM - 2.0 mm thick, if used

1шт.

12

S300565

SHIM

SHIM - 1.0 mm thick, if used

1шт.

12

S300566

BUSHING

SHIM - 7.0 mm thick, if used

1шт.

13

E135133

SPRING

SPRING - piston

1шт.

14

S300562

PISTON

PISTON - valve

1шт.

15

S300559

GASKET

GASKET - cover

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

16

S300560

COVER

COVER - valve

1шт.

17

S300561

BALL

BALL - cover

1шт.

18

E135073

BOLT

BOLT - hex, 5 mm - 0.8 x 50 mm

9шт.

19

892-1005

LOCK WASHER

WASHER - lock, 5 mm

9шт.

20

S300573

PISTON

SPOOL - valve, intermediate

1шт.

21

N14721

SPRING

SPRING - valve

1шт.

22

S300495

O-RING,2mm Thk x 15mm ID

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

23

934164R1

PLUG,Hex Soc, M18 x 1.5

PLUG - hex, 18 mm - 1.5

1шт.

24

E135212

DIAPHRAGM

ORIFICE - hex socket headless,5mm - 0.8 x 6 mm x 0.7

1шт.

25

E135088

BANJO BOLT

CONNECTOR - hydraulic, hex head

2шт.

26

A52231

SEALING RING

RING - seal, plug

4шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

27

S300572

HOSE

HOSE - valve

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - intermediate valve spool

1шт.

29

S300555

HARNESS

HARNESS - transmission control valve

1шт.

30

E135287

SCREW,Pan Slotted, M14 x 12mm

SCREW - cap, 4 mm x 12 mm

4шт.

31

E135286

WASHER

WASHER - wave

4шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 3, 4, 15, 22 and 26 on Figures 6-36 through 6-68 and 7-4

1шт.
