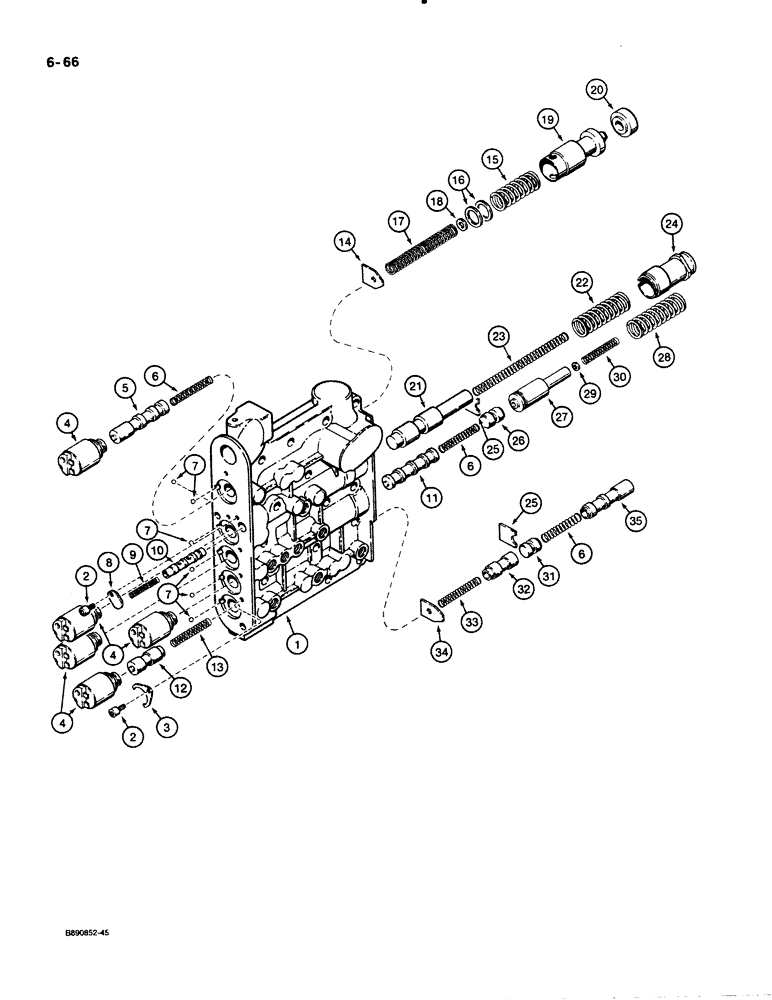

Запчасти Case 621 (6-066) - TRANSMISSION ASSEMBLY, CONTROL VALVE, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

S300492

VALVE

VALVE ASSEMBLY - transmission control, see Figure 6-68

1шт.

*

for additional components

1шт.

1

S300517

VALVE BODY

BODY - transmission control valve

1шт.

2

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 10, 8.8

6шт.

3

S300554

LARGE PLATE

PLATE, LARGE PLATE - support, solenoid valve

5шт.

4

S300553

VALVE

VALVE - solenoid

5шт.

5

S300548

PISTON

SPOOL - valve, number 4

1шт.

6

S300542

COMPRESSION SPRING

SPRING - compression, valve

3шт.

7

S300552

BALL

BALL - valve

10шт.

8

S300551

LARGE PLATE

PLATE, LARGE PLATE - support, reducing valve

1шт.

9

S300550

COMPRESSION SPRING

SPRING - compression, reducing valve

1шт.

10

S300549

VALVE

VALVE - reducing

1шт.

11

S300547

PISTON

SPOOL - valve, number 2

1шт.

12

S300546

PISTON

SPOOL - valve, number 1

1шт.

13

S300540

COMPRESSION SPRING

SPRING - valve

1шт.

14

S300518

LARGE PLATE

PLATE, LARGE SEAT - spring

1шт.

15

S300519

COMPRESSION SPRING

SPRING - compression, valve

1шт.

16

S300522

SHIM,2mm Thk

SHIM, , Spring tension, if used 2mm Thk

1шт.

16

S300523

SHIM,1.8mm Thk

SHIM, , Spring tension, if used 1.8mm Thk

1шт.

16

S300524

SHIM,1.6mm Thk

SHIM, , Spring tension, if used 1.6mm Thk

1шт.

16

S300525

SHIM,1.4mm Thk

SHIM, , Spring tension, if used 1.4mm Thk

1шт.

16

S300526

SHIM,1.2mm Thk

SHIM, , Spring tension, if used 1.2mm Thk

1шт.

16

S300527

SHIM,1mm Thk

SHIM, , Spring tension, if used 1mm Thk

1шт.

17

S300521

COMPRESSION SPRING

SPRING - compression, valve

1шт.

18

S300528

SHIM,0.5mm Thk

SHIM, , Spring, if used 0.5mm Thk

1шт.

18

S300529

SHIM,1mm Thk

SHIM, , Spring, if used 1mm Thk

1шт.

18

S300530

SHIM,5.5mm ID x 13mm OD x 2mm Thk

SHIM, , Spring, if used 2mm Thk

1шт.

18

S300531

SHIM,3mm Thk

SHIM, , Spring, if used 3mm Thk

1шт.

18

S300532

SHIM,5mm Thk

SHIM, , Spring, if used 5mm Thk

1шт.

19

S300520

PISTON

SPOOL - valve, main relief

1шт.

20

S300533

BUSHING

BUSHING - spool

1шт.

21

S300534

PISTON

SPOOL - modulation

1шт.

22

E135137

SPRING

SPRING - modulation spool, 21.8mm OD x 76.7 mm

1шт.

23

E135138

SPRING

SPRING - modulation spool, 10.6mm OD x 132.4 mm

1шт.

24

S300535

PISTON

PISTON - spool

1шт.

25

S300536

LARGE PLATE

PLATE, LARGE STOP - spool

2шт.

26

S300537

STOP

BLOCK - detent

1шт.

27

S300538

PISTON

SPOOL - reset valve

1шт.

28

E135130

SPRING

SPRING - reset spool, 13.2 mm ID x 65.4 mm

1шт.

29

E135006

WASHER

WASHER - spring seat, 4.3 mm ID x 9 mm OD x 0.8 mm thick

1шт.

30

E135129

SPRING

SPRING - reset spool, 5.55 mm ID x 58 mm

1шт.

31

S300539

STOP

BLOCK - detent

1шт.

32

S300544

PISTON

SPOOL - valve, number 3, inner

1шт.

33

S300540

COMPRESSION SPRING

SPRING - spool, number 3, inner

1шт.

34

S300541

LARGE PLATE

PLATE, LARGE SEAT - spring

1шт.

35

S300543

PISTON

SPOOL - valve, number 3, outer

1шт.
