Запчасти Case 621 (6-064) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

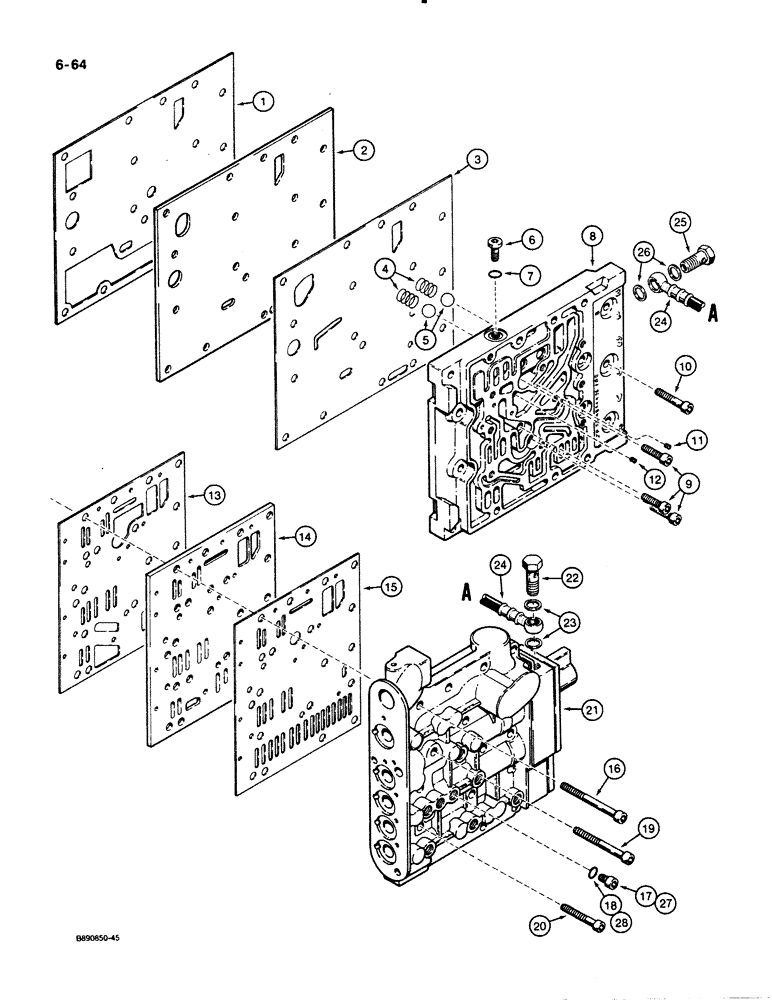

Схема запчастей Case 621 - (6-064) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN
22
1
7
15
3
5
14
19
12
28
20
27
13
9
17
26
21
24
6
23
24
11
8
4
25
16
10
2
18

Артикул

Название

Примечание

Количество

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission; For N.A. only; 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

S300482

GASKET

GASKET - plate, at transmission housing

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

2

S300483

LARGE PLATE

PLATE, LARGE PLATE - valve, transmission housing to channel plate

1шт.

3

S300484

GASKET

GASKET - valve plate to channel plate

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

4

E135132

SPRING

SPRING - ball check

1шт.

5

E135050

BALL

BALL - check, 16 mm OD

1шт.

6

A52230

PLUG

PLUG - hex, 10 mm - 1

1шт.

7

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

8

S300485

PLATE

PLATE - hydraulic channel,to valve

1шт.

9

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 30, 8.8

3шт.

10

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 X 40 mm

9шт.

11

N14709

SET SCREW,M5 x 6mm

SETSCREW - hex socket head, 5 mm x 6 mm

1шт.

12

E135207

RESTRICTOR

PLUG - orifice, hex socket headless

1шт.

13

S300487

GASKET

GASKET - at channel, Serial Range: plate-valve

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

14

S300488

LARGE PLATE

PLATE, LARGE PLATE - valve, channel plate to control valve

1шт.

15

S300489

GASKET

GASKET - at control valve to channel plate

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

16

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 80 mm

6шт.

17

A52230

PLUG

PLUG - hex,10 mm - 1

1шт.

18

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

19

864-8070

HEX SOC SCREW,M8 x 70mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 70 mm

1шт.

20

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 50 mm

9шт.

21

S300492

VALVE

VALVE ASSEMBLY - transmission control, see Figures 6-66 and 6-68 for additional components

1шт.

22

E135090

BOLT

CONNECTOR - hydraulic, hex head

1шт.

23

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Connector M12 x 15.5 x 1.5

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

24

S300574

HOSE

HOSE - hydraulic

1шт.

25

E135088

BANJO BOLT

CONNECTOR - hydraulic, hex head

1шт.

26

A52231

SEALING RING

RING - seal, plug

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

27

A52230

PLUG

PLUG - hex, 10 mm - 1

6шт.

28

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

6шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 1, 3, 7, 13, 15, 18, 23, 26 and 28 on Figures 6-36 through 6-68 and 7-4

1шт.

Выбрано товаров: 41
