Запчасти Case 621 (6-052) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

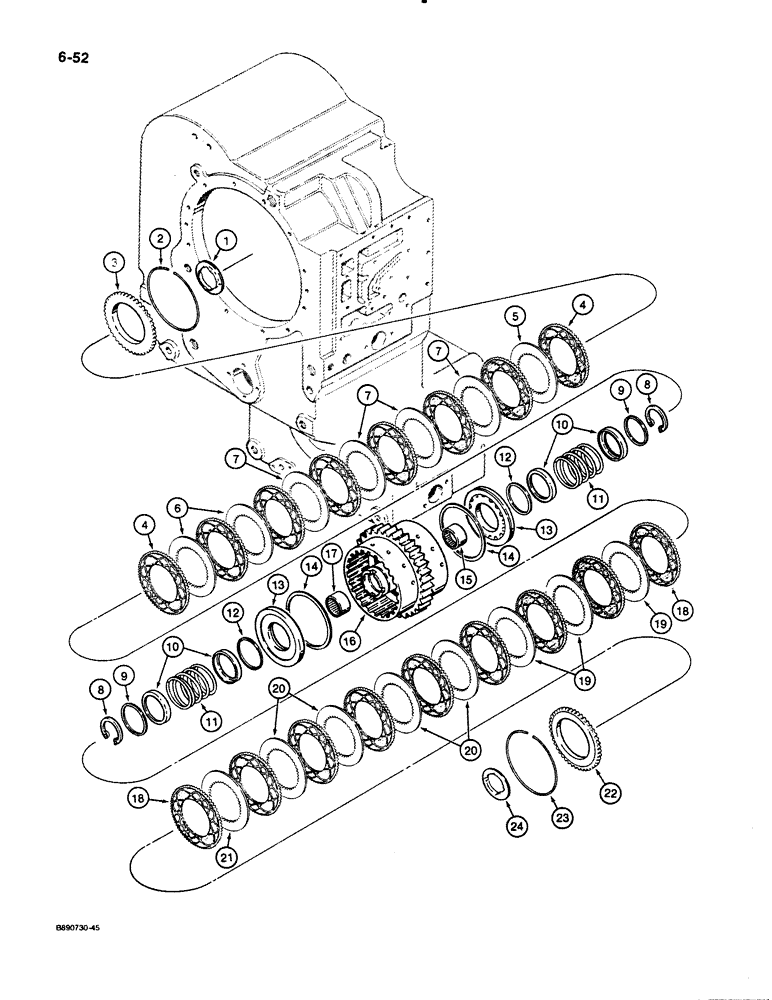

Схема запчастей Case 621 - (6-052) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN
18
13
8
22
4
11
6
7
12
21
9
17
2
14
7
18
9
16
5
13
15
20
11
1
10
3
8
14
19
7
20
23
12
4
19
10
24

Артикул

Название

Примечание

Количество

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches

1шт.

1

E135227

THRUST RING

PLATE - thrust

1шт.

2

E135125

RING, SNAP

RING SNAP RING - retaining, internal

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, steel,outer

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - 2.0 mm thick, clutch, if used

1шт.

5

E135272

NOTCHED DISK

DISC - 2.5 mm thick, clutch, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, steel

2шт.

7

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

SPRING - clutch

2шт.

12

E135141

SEALING RING

SEALRING RING - seal, piston ID

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

13

N14711

PISTON

PISTON - clutch

2шт.

14

E135140

SEALING RING

SEALRING RING - seal, piston OD

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle, 40 mm ID x 47 mm OD x 26 mm

1шт.

16

E135234

GEAR

HOUSING - forward and low clutch

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle, 35 mm ID x 42 mm OD X 26mm

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch

3шт.

20

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch

4шт.

21

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, clutch, if used

1шт.

21

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, clutch, if used

1шт.

22

E135261

NOTCHED DISK

DISC - clutch, steel, outer

1шт.

23

E135125

RING, SNAP

RING SNAP RING - retaining, internal

1шт.

24

E135218

THRUST RING

WASHER - thrust

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 12 and 14 on Figures 6-36 through 6-68 and 7-4

1шт.

Выбрано товаров: 33
