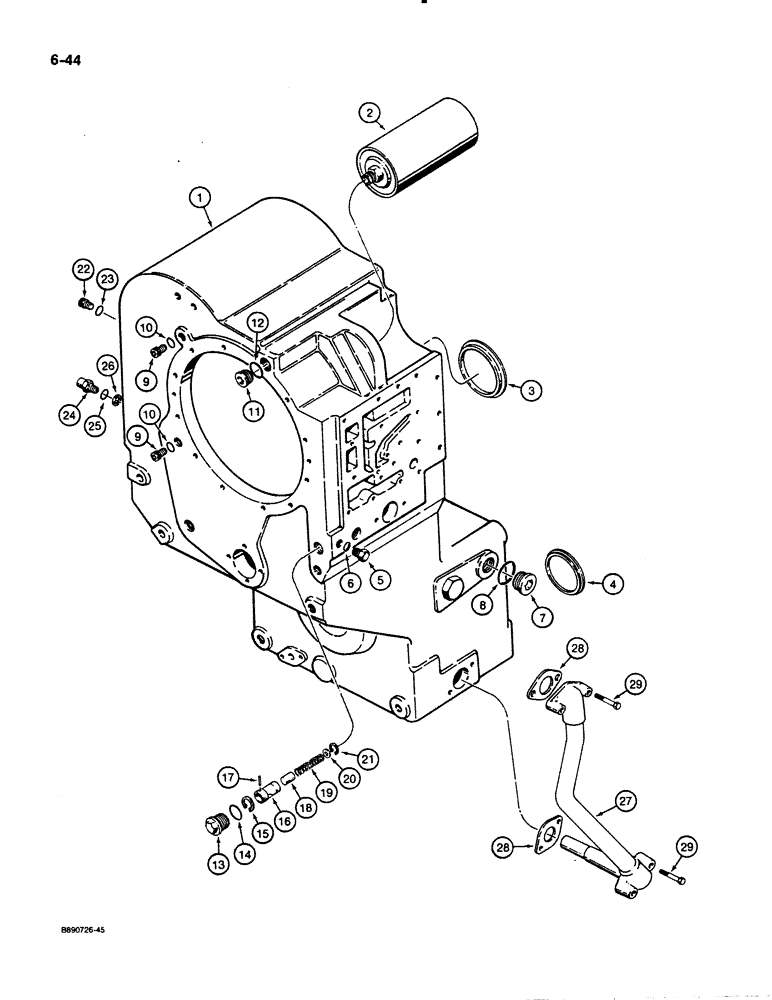

Запчасти Case 621 (6-044) - TRANSMISSION ASSEMBLY, HOUSING, P.I.N. JAK0020901 AND AFTER (06) - POWER TRAIN

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - includes items 2 through 5 on Figure 6-36, items 12 through 16 and item 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

LC127202

CORE-TRANSMISSION

Return Number

1шт.

1

E135249

HOUSING

HOUSING - transmission

1шт.

2

S300650

FILTER

FILTER - transmission oil

1шт.

3

E135201

SEAL

PLUG - 106 mm, expansion

1шт.

Ref. items 3 &4--Frost plugs. There are two more frost plugs neer the output shaft (on the parking brake side). The 22mm is E135010 & the 30mm is E135011.- by bb 10/30/95

1шт.

4

E135169

PLUG

PLUG - 80 mm, expansion

2шт.

5

E135079

PLUG

PLUG - hex, 14 mm x 1.5

1шт.

6

1968430C1

O-RING

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

7

E135077

PLUG,Hex, M36 x 1.5

PLUG - 36 mm x 1.5, pipe, hex socket head

1шт.

8

E135033

O-RING,2.2mm Thk x 33mm ID

SEAL - x 2, O-ring 33 mm ID

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

9

E135075

PLUG

PLUG - hex socket, 14 mm x 1.5

2шт.

10

1968430C1

O-RING

O-RING - plug

2шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

11

A48885

PLUG

PLUG - hex socket head, 30 mm x 1.5

1шт.

12

S300450

O-RING,23.3mm ID x 2.4mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

13

E135082

PLUG

PLUG - hex head, 30 mm x 1.5

1шт.

14

A52368

SEAL

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

15

A37550

SNAP RING,1.00", Int, #100

RING - snap, internal, 28 mm x 1.2

1шт.

16

E135200

SPACER

SLEEVE - valve, converter pressure

1шт.

17

E135126

DOWEL,4mm OD x 27.5mm L

PIN - dowel, 4 mm x 27.5

1шт.

18

E135166

VALVE POPPET

PISTON - converter pressure valve

1шт.

19

E135134

SPRING

SPRING - converter pressure valve

1шт.

20

E135092

WASHER

WASHER - spring stop, 10 mm ID x 19.9 OD x 2.5

1шт.

21

E135020

CIRCLIP

RING - snap, internal, 20 mm x 1.5

1шт.

22

E135076

PLUG

PLUG - hex socket head, 18 mm x 1.5

1шт.

23

S300495

O-RING,2mm Thk x 15mm ID

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

24

S300494

SENDER UNIT

SENDER - torque converter oil temperature

1шт.

Ref. 24 is Speed Sensor Sender, that sends the speed signal to the "black box." behind the seat in the cab.

1шт.

25

S300496

SEALING RING

SEAL - sender

1шт.

Part of seal and gasket kit P/N S300588 and parts on figures 6-36 through 6-68 and 7-4

1шт.

26

S300497

SHIM,1.5mm Thk

SHIM, , Sender 1.5mm Thk

1шт.

26

S300498

SHIM,1.4mm Thk

SHIM, , Sender 1.4mm Thk

1шт.

26

S300499

SHIM,1.2mm Thk

SHIM, , Sender 1.2mm Thk

1шт.

26

S300500

SHIM,1mm Thk

SHIM, , Sender 1mm Thk

1шт.

26

S300501

SHIM,2mm Thk

SHIM, , Sender 2mm Thk

1шт.

26

S300502

SHIM,0.5mm Thk

SHIM, , Sender 0.5mm Thk

1шт.

26

S300503

SHIM,0.3mm Thk

SHIM, , Sender 0.3mm Thk

1шт.

26

S300504

SHIM,0.2mm Thk

SHIM, , Sender 0.2mm Thk

1шт.

27

E135235

HYD TUBE,480, 161 mm L

TUBE - suction

1шт.

28

E135282

GASKET

GASKET - suction tube

2шт.

29

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

BOLT, Hex, M8 x 50, 10.9

4шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 6, 8, 10, 12, 14, 23 and 25 on Figures 6-36 through 6-68 and 7-4

1шт.
