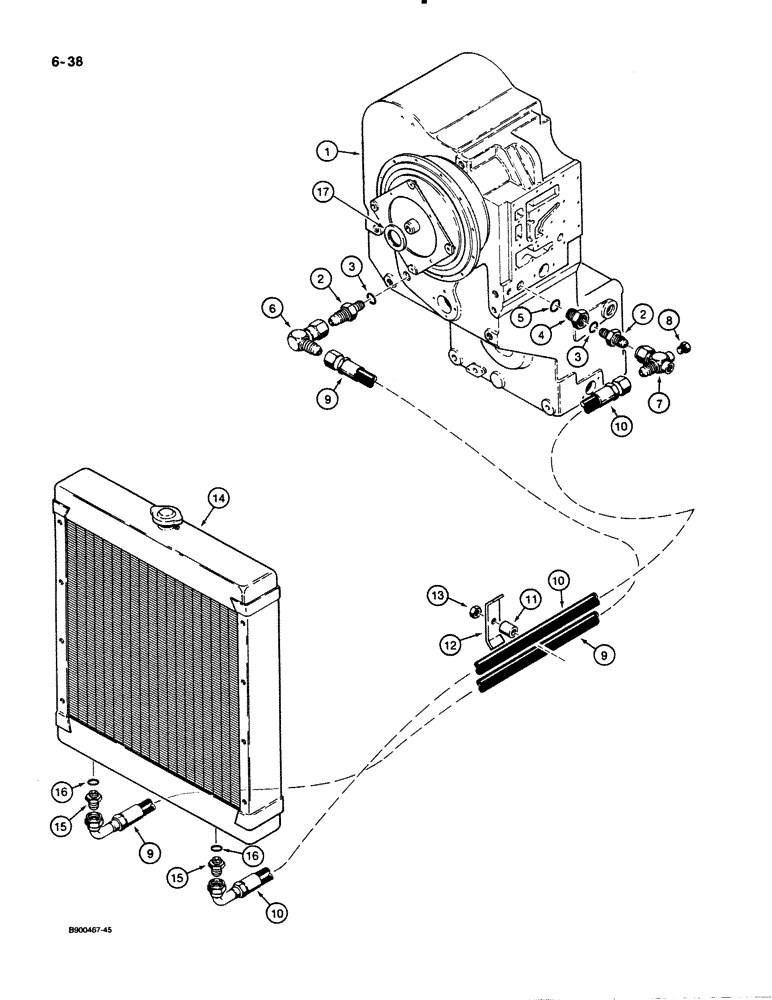

Запчасти Case 621 (6-038) - TRANSMISSION HYDRAULIC CIRCUIT, P.I.N. JAK0021337 AND AFTER (06) - POWER TRAIN

1

L127202

TRANSMISSION

TRANSMISSION ASSEMBLY - ZF P/N 4644-004-208, Includes: Ref. 2 through 5 on Figure 6-38, Ref. 12 through 16 and Ref. 31 on Figure 6-40, and all items on Figures 6-42 through 6-68 and Figure 7-4

1шт.

P/N L127202 is ZF 4644-004-208

1шт.

1

LR127202

REMAN-TRANSMISSION

Remanufactored Transmission, 621, Prior to JAK0021701, Model Number 4WG180, Stock Number 4644 004 208

1шт.

1

LC127202

CORE-TRANSMISSION

Return Number

1шт.

2

S300453

FITTING

ADAPTER - hydraulic, included with L127202 transmission

2шт.

3

S300450

O-RING,23.3mm ID x 2.4mm Width

O-RING - adapter, included with L127202 transmission

2шт.

Part of seal and gasket kit P/N S300588.

1шт.

4

S300452

RESTRICTOR

REDUCER - hydraulic, included with L127202 transmission

1шт.

5

81284C1

O-RING,2.2mm Thk x 33mm ID

O-RING - reducer, included with L127202 transmission

1шт.

Part of seal and gasket kit P/N S300588.

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ELBOW - 90 deg, 1-5/16-12 flare x 1-5/16-12 inch fem swivel

1шт.

7

L125441

FITTING

CROSS - hydraulic

1шт.

8

221-1664

PLUG

PLUG - hex, 1/2 inch PT

1шт.

9

L125496

HOSE ASSY.

HOSE - 2550 mm long, Serial Range: cooler-transmission

1шт.

10

L128090

HOSE

HOSE - 1700 mm long, Serial Range: transmission-cooler

1шт.

11

E62230

SPACER

SPACER - hose, clamp to rear chassis

3шт.

12

R34049

CLAMP

CLAMP - hose to rear chassis

3шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

14

A190619

RADIATOR

RADIATOR - includes transmission oil cooler

1шт.

An optional tranmission cooling kit is on the service bulletin linked to Ref. 14.

1шт.

15

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1 inch flare x 5/8 O-ring boss

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

L128777

SPACER

SPACER - transmission to engine flywheel housing

1шт.

S300588

SEAL PACKAGE

KIT - seal and gasket, Includes: Ref. 3 and 5 on this figure and items on Figures 6-37 through 6-68 and 7-4

1шт.
