(6-034) - TRANS. ASSEMBLY, MODULATOR VALVE ASSEMBLY, PRIOR TO P.I.N. JAK0020901

Запчасти Case 621 (6-034) - TRANS. ASSEMBLY, MODULATOR VALVE ASSEMBLY, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

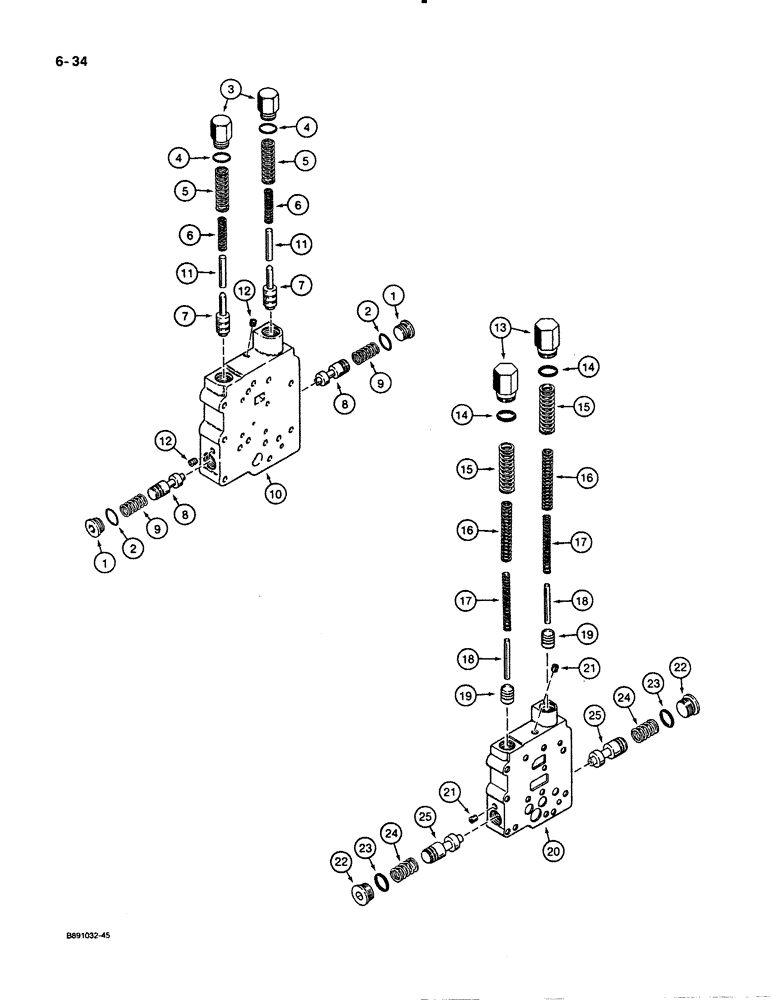

Схема запчастей Case 621 - (6-034) - TRANS. ASSEMBLY, MODULATOR VALVE ASSEMBLY, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN
25
8
4
6
19
4
7
9
21
3
5
8
11
24
18
15
15
23
22
1
10
17
2
7
14
13
12
6
18
17
5
11
21
24
25
14
23
12
22
16
9
1
20
16
2
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S300051

VALVE

ASSEMBLY - modulator, prior to P.I.N. JAK0020620

1шт.

1

86625138

PLUG,7/18" - 14

Prior to P.I.N. JAK0020620 Hex Soc, 7/8"-14 ORB

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, prior to P.I.N. JAK0020620

1шт.

3

D78314

PLUG

- accumulator stop, prior to P.I.N. JAK0020620

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, prior to P.I.N. JAK0020620

2шт.

5

D76982

SPRING

- accumulator, outer, prior to P.I.N. JAK0020620

2шт.

6

D76975

SPRING

- accumulator, inner, prior to P.I.N. JAK0020620

2шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - accumulator, prior to P.I.N. JAK0020620

2шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - regulator, prior to P.I.N. JAK0020620

2шт.

9

N8547

SPRING

- regulator, prior to P.I.N. JAK0020620

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - modulator valve, prior to P.I.N. JAK0020620

1шт.

11

D78315

PIN

- valve, accumulator, prior to P.I.N. JAK0020620

2шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, prior to P.I.N. JAK0020620

2шт.

S300755

VALVE

ASSEMBLY - modulator, P.I.N. JAK0020620 through JAK0020900

1шт.

13

D78314

PLUG

- accumulator stop, P.I.N. JAK0020620 through JAK0020900

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, P.I.N. JAK0020620 through JAK0020900

2шт.

15

S300756

SPRING

- accumulator, outer, P.I.N. JAK0020620 through JAK0020900

2шт.

16

S300757

SPRING

- accumulator, center, P.I.N. JAK0020620 through JAK0020900

2шт.

17

S300758

SPRING

- accumulator, inner, P.I.N. JAK0020620 through JAK0020900

2шт.

18

S300759

PIN

- valve, accumulator, P.I.N. JAK0020620 through JAK0020900

2шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - accumulator, P.I.N. JAK0020620 through JAK0020900

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - modulator valve, P.I.N. JAK0020620 through JAK0020900

1шт.

21

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, P.I.N. JAK0020620 through JAK0020900

2шт.

22

86625138

PLUG,7/18" - 14

P.I.N. JAK0020620 through JAK0020900 Hex Soc, 7/8"-14 ORB

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, P.I.N. JAK0020620 through JAK002090

1шт.

24

N8547

SPRING

- regulator, P.I.N. JAK0020620 through JAK0020900

2шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - regulator, P.I.N. JAK0020620 through JAK0020900

2шт.
