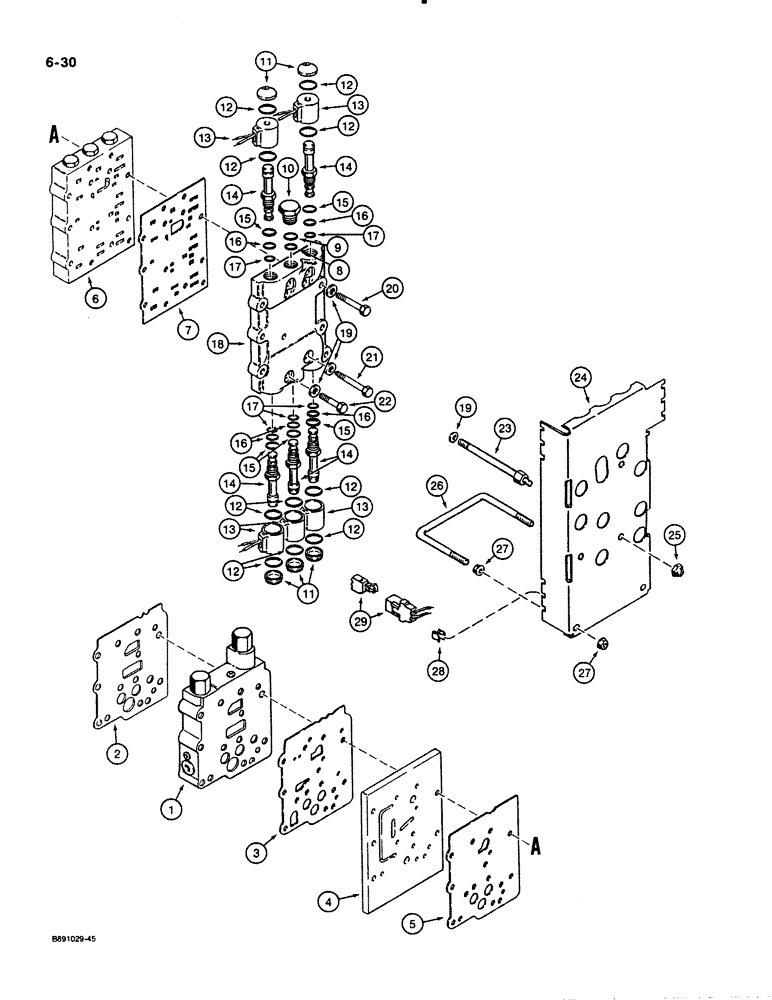

Запчасти Case 621 (6-030) - TRANSMISSION ASSEMBLY, SOLENOID VALVE, P.I.N. JAK0020620 THRU JAK0020900 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

S300755

VALVE

ASSEMBLY - modulator, see parts list Figure 6-34

1шт.

2

D76972

GASKET

- modulator valve to converter housing gasket (Replaces S300052,193468A1)

1шт.

3

S300053

GASKET

- modulator valve to adapter plate

1шт.

4

S300054

SUPPORT

PLATE - adaptor, valve mounting

1шт.

5

S300707

GASKET

- adapter plate to control valve

1шт.

6

S300056

VALVE

ASSEMBLY - control, see parts list Figure 6-32

1шт.

7

S300057

GASKET

- control valve to solenoid

1шт.

8

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- solenoid plug, small

1шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- solenoid plug, large

1шт.

10

S300063

PLUG

- solenoid

1шт.

11

S300748

NUT

CAP - solenoid coil

5шт.

12

238-7020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

- 7/8 ID x 1/16 inch wide

10шт.

13

S300747

COIL

- 24 volt, solenoid

5шт.

S300066

VALVE

SPOOL ASSEMBLY - solenoid

5шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

15

S300089

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- outer, lower spool end

1шт.

16

G107871

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

- middle, lower spool end

1шт.

17

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- inner, lower spool end

1шт.

18

S300745

HOUSING

BODY - solenoid

1шт.

19

S300068

WASHER

- special, copper

13шт.

20

113-2238

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

5шт.

21

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

22

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

23

S300749

BOLT

- special, valve mounting

3шт.

24

S300750

COVER

- protection, valve

1шт.

25

S300751

NUT

- special, valve mounting bolt

3шт.

26

S300752

BOLT

U-BOLT - valve mounting

1шт.

27

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex, flange lock, 3/8 inch NC

4шт.

28

214-1104

CLAMP

CLIP - connector

5шт.

29

S300753

ROD, CONNECTING

CONNECTOR - female

5шт.
