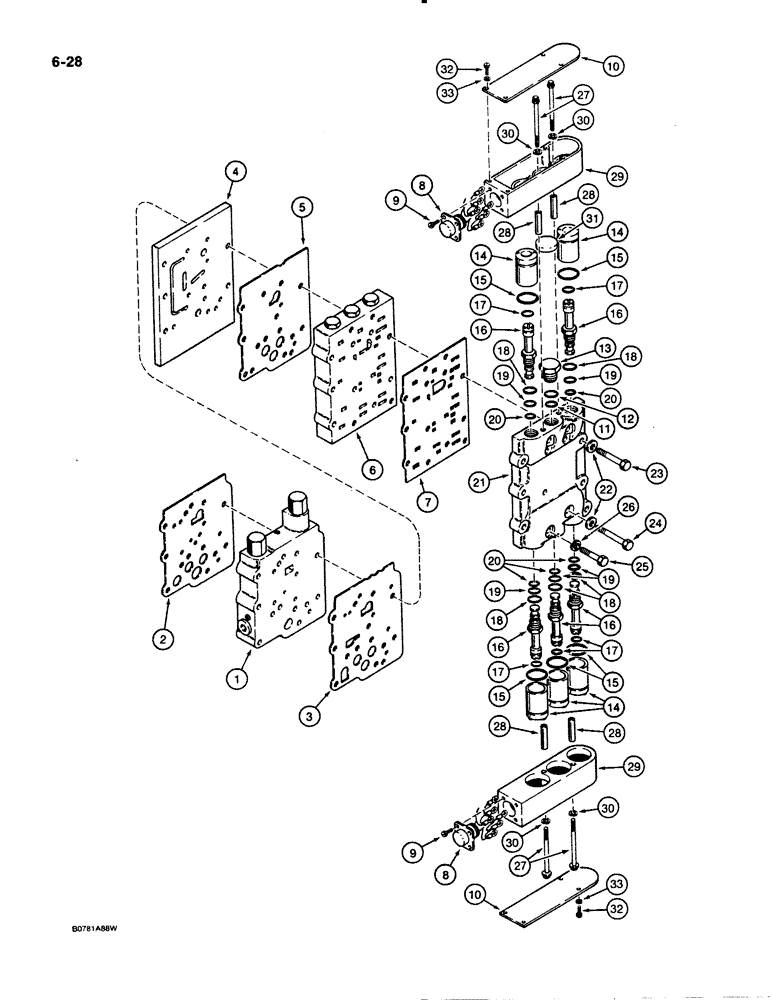

Запчасти Case 621 (6-028) - TRANSMISSION ASSEMBLY, SOLENOID VALVE, PRIOR TO P.I.N. JAK0020620 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

S300051

VALVE

ASSEMBLY - modulator, see parts list Figure 6-34

1шт.

2

D76972

GASKET

- modulator valve to converter housing (Replaces S300052, 193468A1)

1шт.

3

S300053

GASKET

- modulator valve to adapter plate

1шт.

4

S300054

SUPPORT

PLATE - adaptor, valve mounting

1шт.

5

S300707

GASKET

- adapter plate to control valve

1шт.

6

S300056

VALVE

ASSEMBLY - control, see parts list Figure 6-32

1шт.

7

S300057

GASKET

- control, Serial Range: valve-solenoid

1шт.

8

S300652

ROD, CONNECTING

CONNECTOR - transmission, solenoid to rear harness

2шт.

9

187-1526

SELF-TAP SCREW,Hex Hd, #4 x 3/8"

SCREW - hex head, self-tapping, No. 4 - 48 NF x 3/8"

8шт.

10

S300708

COVER

- dust, solenoid

2шт.

11

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- solenoid plug, small

1шт.

12

S300062

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

- solenoid plug, large

1шт.

13

S300063

PLUG

- solenoid

1шт.

14

S300709

COIL

- solenoid (Replaces S300064) MUST advise dealer to review service bulletin (mod)

5шт.

15

S300065

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- solenoid

5шт.

S300066

VALVE

SPOOL ASSEMBLY - solenoid

5шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

17

28377R1

O-RING,-015, Cl 7, .551" ID x .070" Thk

- inner, upper spool end

1шт.

18

S300089

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

inner, lower spool end

1шт.

19

G107871

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

outer, lower spool end

1шт.

20

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

middle, lower spool end

1шт.

21

S300067

HOUSING

BODY - solenoid

1шт.

22

S300068

WASHER

- special, copper

9шт.

23

113-2237

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

5шт.

24

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

25

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

27

S300254

BOLT

BOLT - Ferry head, special, dust cover

4шт.

28

S300070

TUBE

SLEEVE - bolt

4шт.

29

S300713

COVER

HOUSING - dust cover

2шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

31

S300255

PLUG

- special, upper dust cover

1шт.

32

187-1508

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, self-tapping, No. 10 NC x 1/2 inch, control cable bracket to pan

8шт.

33

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.
