Запчасти Case 621 (6-026) - TRANSMISSION ASSEMBLY, PRESSURE REGULATOR VALVE, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

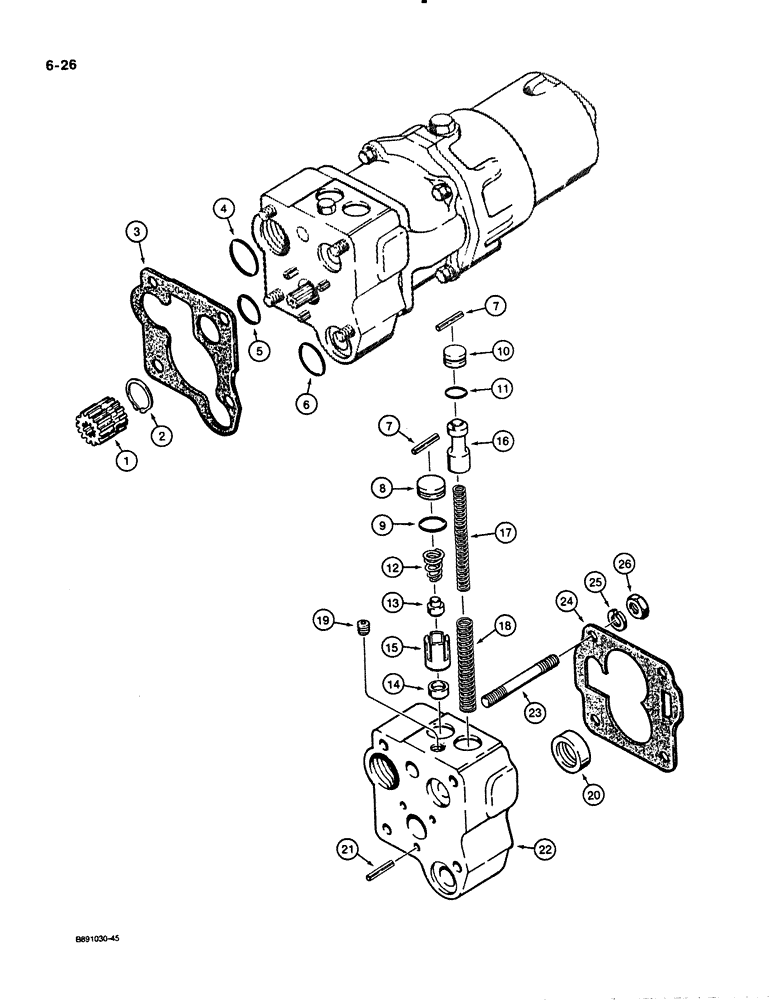

Схема запчастей Case 621 - (6-026) - TRANSMISSION ASSEMBLY, PRESSURE REGULATOR VALVE, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN
13
7
11
8
26
5
4
16
10
3
1
17
20
25
15
24
23
22
7
21
6
9
14
12
2
19
18

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

D78317

GEAR WHEEL

GEAR ASSEMBLY - drive

1шт.

2

A18024

RING, SNAP

RING - snap, drive gear

1шт.

3

N6271

GASKET

- valve

1шт.

4

L33541

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

- 1-3/16" (30 mm) ID

1шт.

5

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- 13/16" (21 mm) ID

1шт.

6

L33540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 7, 70 Duro

- 1" (25 mm) ID

1шт.

L33537

VALVE

ASSEMBLY - pressure regulator

1шт.

7

138-83

LOCK PIN,5/32" x 1 3/4", Slotted

PIN, 5/32" x 1 3/4", Slotted

2шт.

8

D59677

STOP

- large

1шт.

9

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- large stop

1шт.

10

A18038

STOP

- small

1шт.

11

A64436

O-RING,0.549" ID x 0.755" OD

- small

1шт.

12

A18004

SPRING

- stop valve

1шт.

13

A18003

PLUNGER

POPPET - stop valve

1шт.

14

D59678

SEAT

- poppet

1шт.

15

D59679

SEAT

SLEEVE - stop valve

1шт.

16

L33553

VALVE

PISTON - valve

1шт.

17

L30048

VALVE SPRING

SPRING - inner

1шт.

18

D76971

SPRING

- outer

1шт.

19

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

20

L33556

OIL SEAL

- oil, shaft

1шт.

21

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

3шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

L33544

STUD

- 7/16" - 20 NF

4шт.

24

L33539

GASKET,0.71mm Thk

- valve

1шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

26

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

4шт.

Выбрано товаров: 28
