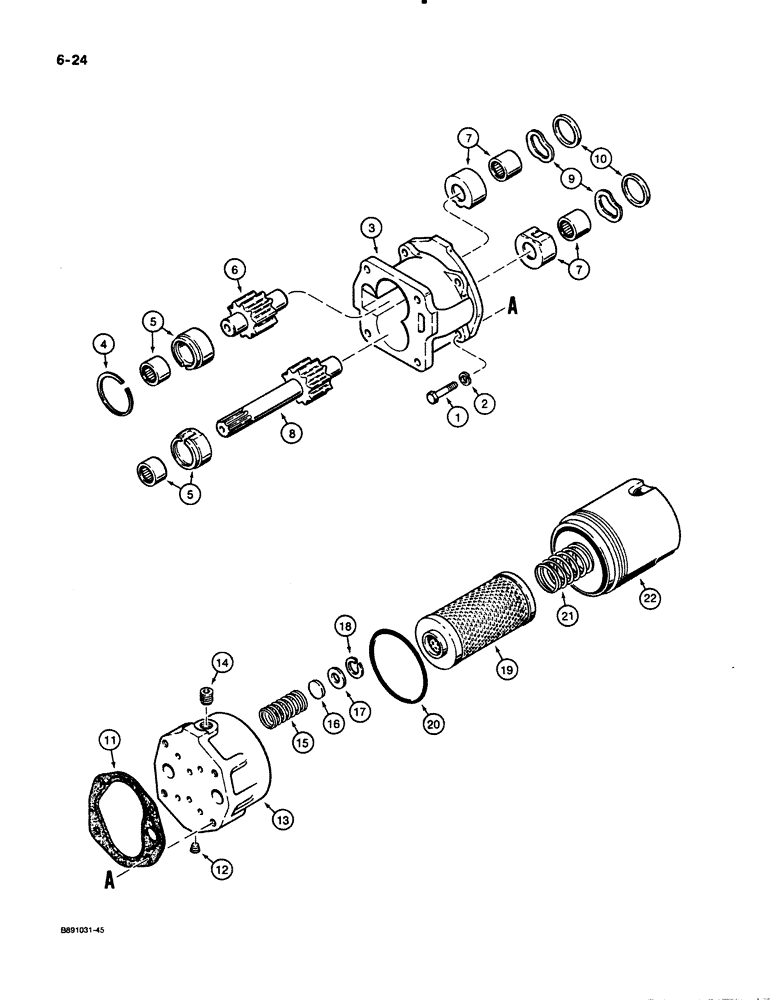

Запчасти Case 621 (6-024) - TRANSMISSION ASSEMBLY, CHARGING PUMP AND FILTER, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

S300047

PUMP

CHARGING PUMP AND FILTER ASSEMBLY - transmission

1шт.

1

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

2

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

D77005

PUMP

ASSEMBLY - charging

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - charging pump

1шт.

4

S300135

RING, SNAP

RING - retaining, short shaft

1шт.

5

S300130

PLATE

AND BEARING - thrust and needle, rear

2шт.

6

S300131

SHAFT

- short, driven gear

1шт.

7

S300132

PLATE

AND BEARING - thrust and needle, front

2шт.

8

S300133

SHAFT

- long, pump drive

1шт.

9

D73734

SPRING

- wave

2шт.

10

D73735

RING

SEAL - shaft

2шт.

11

L33566

GASKET

-, Serial Range: pump-filter

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16" NPT

1шт.

13

D73733

ADAPTER

- filter

1шт.

14

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

15

L33571

VALVE SPRING

SPRING - bypass

1шт.

16

L33572

DISC

- bypass

1шт.

17

L33573

SEAT

- bypass

1шт.

18

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , seat 1.06", Int, #106

1шт.

S300073

ELEMENT

KIT - filter element, Serial Range: prior-JAK0020620

1шт.

S300744

ELEMENT

KIT - filter element, P.I.N. JAK0020620 through JAK0020900

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

20

22411R1

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- filter

1шт.

21

L33570

SPRING

- filter

1шт.

22

L33569

HOUSING

COVER - filter

1шт.
