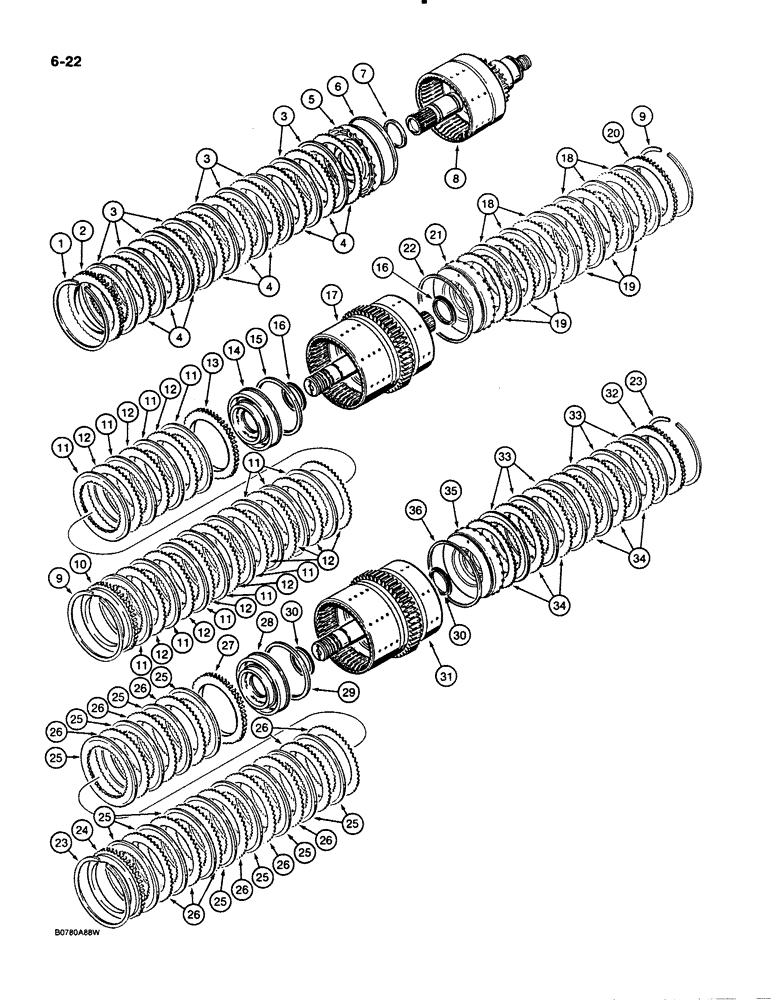

Запчасти Case 621 (6-022) - TRANSMISSION ASSEMBLY, CLUTCHES, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34, first clutch

1шт.

1

A17918

RING

- retaining, backing plate, first clutch

1шт.

2

A17919

PLATE

GEAR - backing plate, clutch disc, first

1шт.

3

S94326

DISC

- clutch, internal tooth, first clutch

9шт.

4

A17921

DISC

- clutch, external tooth, first

9шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - clutch, first

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - clutch, first

1шт.

6

N13959

SEAL

- outer, first clutch

1шт.

7

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, first clutch

1шт.

8

S300037

DRUM

AND SHAFT - clutch, first

1шт.

9

A17918

RING

- retaining, backing plate, forward and third clutch

2шт.

10

D76979

CLUTCH ASSEMBLY

GEAR - backing plate, clutch disc, forward and third

1шт.

11

D77063

PLATE ASSY.

DISC - clutch, internal tooth, forward and third

12шт.

12

A17921

DISC

- clutch, external tooth, forward and third

11шт.

13

S300034

PLATE

GEAR - backing plate, forward clutch piston, forward and third

1шт.

14

S300033

PISTON

- forward clutch, third clutch

1шт.

15

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

- outer, forward and third clutch

1шт.

16

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, forward and third clutch

2шт.

17

N8853

DRUM

AND SHAFT - clutch, forward and third clutch

1шт.

18

D77063

PLATE ASSY.

DISC - clutch, internal tooth, forward and third

6шт.

19

A17921

DISC

- clutch, external tooth, forward and third

6шт.

20

A17919

PLATE

GEAR - backing plate, clutch disc, forward and third

1шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - third clutch, forward and third

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - third clutch, forward and third

1шт.

22

N13959

SEAL

- outer, forward and third clutch

1шт.

23

A17918

RING

- retaining, backing plate, reverse and second clutch

2шт.

24

D76979

CLUTCH ASSEMBLY

GEAR - backing plate, clutch disc, reverse and second

1шт.

25

D77063

PLATE ASSY.

DISC - clutch, internal tooth, reverse and second

12шт.

26

A17921

DISC

- clutch, external tooth, reverse and second

11шт.

27

S300034

PLATE

GEAR - backing plate, reverse clutch piston, reverse and second

1шт.

28

S300033

PISTON

- reverse clutch, revese and second

1шт.

29

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

- outer, reverse and second clutch

1шт.

30

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, reverse and second clutch

2шт.

31

S300036

DRUM

AND SHAFT - clutch, reverse and second

1шт.

32

A17919

PLATE

GEAR - backing plate, clutch disc, reverse and second

1шт.

33

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

- clutch, internal tooth, reverse and second

6шт.

34

A17921

DISC

- clutch, external tooth, reverse and second

6шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - second clutch, reverse

1шт.

35

NSS

NOT SOLD SEPARAT

PISTON - second clutch, reverse

1шт.

36

N13959

SEAL

- outer, reverse and second clutch

1шт.
