Запчасти Case 621 (6-020) - TRANSMISSION ASSEMBLY, FOURTH CLUTCH SHAFT PARTS, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

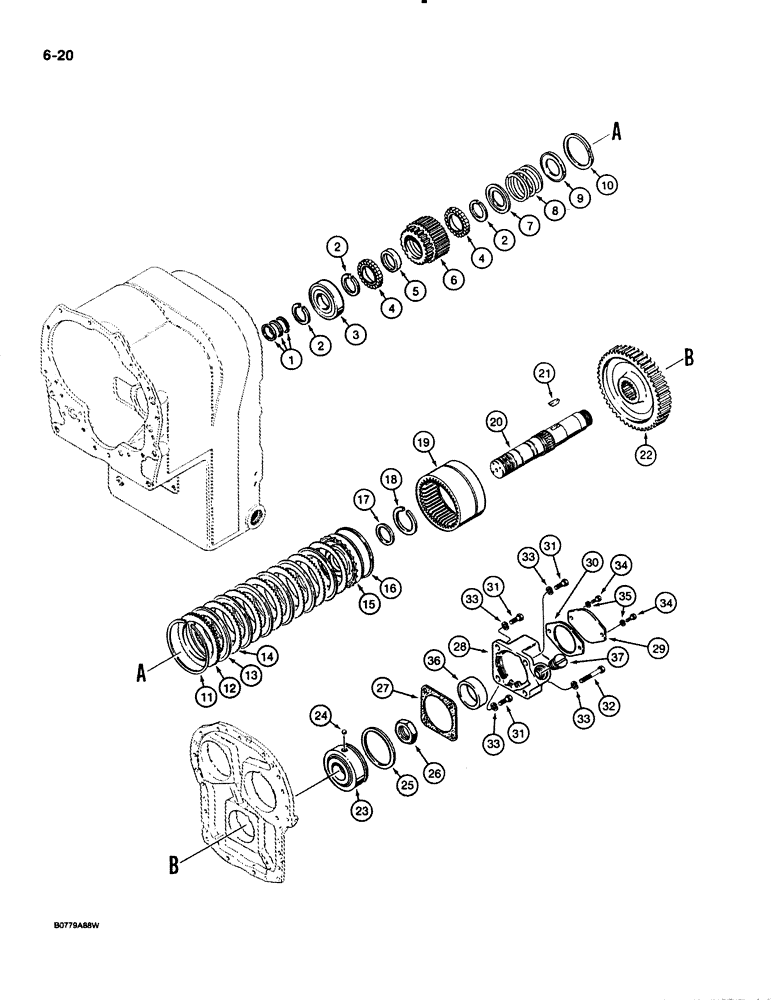

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

D77016

RING

- piston, shaft

3шт.

2

S89656

RING

- retaining, bearing

3шт.

3

D77018

BEARING, ROLLER, CYL,49.99mm ID x 90mm OD x 20mm W

BEARING - ball, rear

1шт.

4

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - roller, fourth gear

2шт.

5

D77041

SPACER

- bearing

1шт.

6

S300043

GEAR

- fourth

1шт.

7

L33488

RETAINER

SEAT - spring, rear

1шт.

8

L33487

VALVE SPRING

SPRING - return

1шт.

9

S89661

RETAINER

SEAT - spring, front

1шт.

10

L33512

RING

- oil baffle

1шт.

11

A17918

RING

- retaining, backing plate

1шт.

12

A17919

PLATE

GEAR - backing plate, clutch disc

1шт.

13

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

- clutch, inner teeth

6шт.

14

A17921

DISC

- clutch, outer teeth

6шт.

N13957

PISTON ASSY.

PISTON ASSEMBLY - clutch

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

16

N13959

SEAL

- outer

1шт.

17

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

- inner, clutch

1шт.

18

S89681

RING

- retaining, shaft

1шт.

19

D77025

HUB

DRUM - clutch

1шт.

20

S300040

SHAFT

- idler

1шт.

21

N8869

KEY

- idler shaft

1шт.

22

S300041

GEAR

- idler

1шт.

23

S89673

BALL BEARING

BEARING ASSEMBLY - roller, dual tapered

1шт.

24

211-213

BALL,15/32" Dia

- 15/32", grade 25, chrome alloy steel

1шт.

25

S89674

RING

- bearing

1шт.

26

S89676

NUT

- special

1шт.

27

S89677

GASKET

- cover

1шт.

28

S300042

CAP

- bearing

1шт.

29

E104132

COVER

- bearing cap

1шт.

30

E104134

GASKET

- cover, bearing cap

1шт.

31

113-515

BOLT,Hex, 9/16" - 12 x 1-1/4", Gr 5, Full Thd

3шт.

32

113-517

BOLT,Hex, 9/16" - 12 x 2-1/2", Gr 5

- hex head, 9/16" - 12 NC x 2-1/2", plated

1шт.

33

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

34

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

S89675

SPACER

- shaft, idler

1шт.

37

S89679

PLUG

- bearing cap

1шт.
