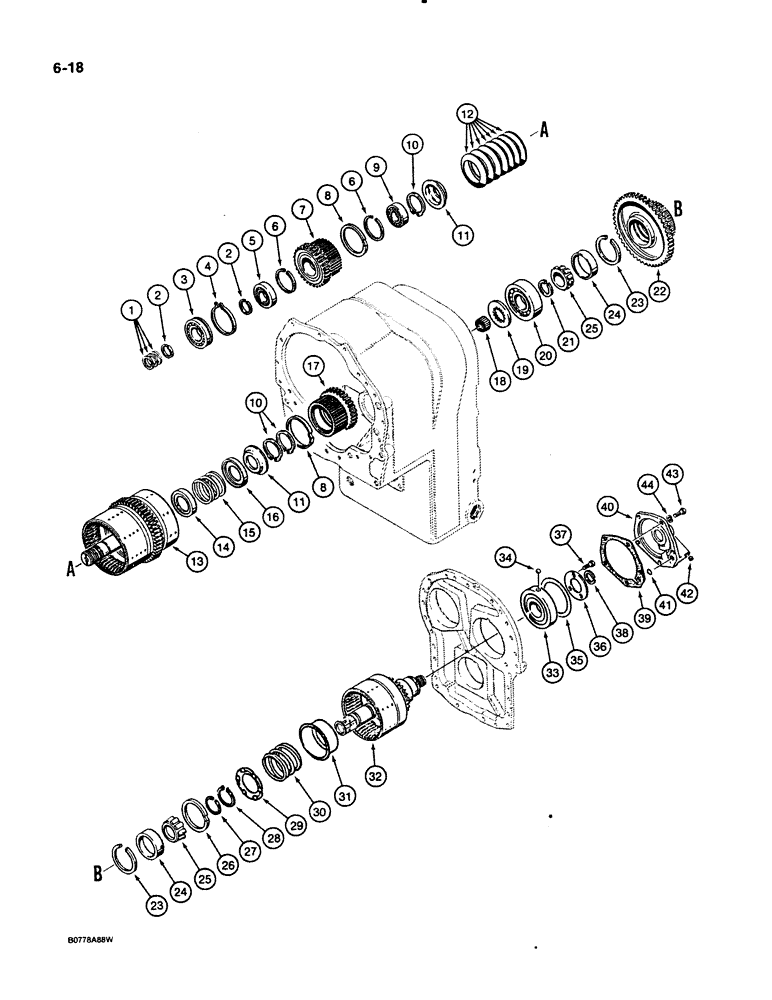

Запчасти Case 621 (6-018) - TRANSMISSION ASSEMBLY, REVERSE, SECOND, AND FIRST CLUTCH SHAFT PARTS, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

A17925

SPRING

RING - piston, shaft

3шт.

2

L33518

RING

- retaining, bearing

2шт.

3

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - ball, reverse and second clutch, rear

1шт.

4

S89652

RING

- snap, rear bearing

1шт.

5

D77046

BALL BEARING

BEARING - ball, clutch driven gear, outer

1шт.

6

D77019

RING

- retaining, bearing

2шт.

7

N13339

GEAR

- driven

1шт.

8

L33512

RING

- oil baffle, reverse and second clutch

2шт.

9

S89657

BEARING

- ball, clutch driven gear, inner

1шт.

10

E114328

RING, SNAP

RING - snap, spring retaining

3шт.

11

N6812

RETAINER

- springs

2шт.

12

D80421

WASHER

SPRING - Belleville, piston return

7шт.

13

REF

INSTRUCTION

CLUTCH - reverse and second, parts list Figure 6-18

1шт.

14

S89661

RETAINER

SEAT - spring, rear

1шт.

15

L33487

VALVE SPRING

SPRING - return

1шт.

16

L33488

RETAINER

SEAT - spring, front

1шт.

17

N8415

GEAR

- second

1шт.

18

S89660

NEEDLE BEARING

BEARING - needle, pilot

1шт.

19

D77036

PLATE

- end

1шт.

20

D77037

BEARING, ROLLER, CYL

BEARING - ball, second gear

1шт.

21

D77065

RING

- retaining, bearing, set of three

1шт.

22

S300038

GEAR

- first

1шт.

D77038

TAPERED BEARING,49.99mm ID x 85.04mm OD x 49.5mm W

BEARING ASSEMBLY - first gear

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining, bearing

2шт.

24

NSS

NOT SOLD SEPARAT

CUP - tapered roller bearing

2шт.

25

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

2шт.

26

L33512

RING

- oil baffle, low clutch, prior to P.I.N. JAK0020620

1шт.

26

S300741

OIL SEAL

RING - oil baffle, low clutch, P.I.N. JAK0020620 through JAK0020900

1шт.

27

D77040

RING

- retaining, bearing retainer

1шт.

28

E114328

RING, SNAP

RING - retaining, spring retaining

1шт.

29

N13305

RETAINER

SEAT - spring, rear

1шт.

30

L33487

VALVE SPRING

SPRING - return

1шт.

31

N13304

RETAINER

SEAT - spring, front

1шт.

32

REF

INSTRUCTION

CLUTCH - first, parts list Figure 6-18

1шт.

33

S300039

ROLLER BEARING,63.5mm ID x 112.74mm OD x 55.97mm W

BEARING ASSEMBLY - roller, dual tapered

1шт.

34

211-213

BALL,15/32" Dia

- 15/32", grade 5, chrome alloy steel

1шт.

35

N8865

RING

SPACER - bearing

1шт.

36

N8862

PLATE

- bearing retainer

1шт.

37

193124A1

CAPSCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - hex head, 3/8" - 16 NC x 7/8", plated (Replaces 113-221)Has hole in head for locking wire

3шт.

38

N8864

RING

- piston, clutch shaft

1шт.

39

S89671

GASKET,0.43mm Thk

- front bearing cover

1шт.

40

N8863

CAP

COVER - front, bearing

1шт.

41

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- front cover

1шт.

42

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.
