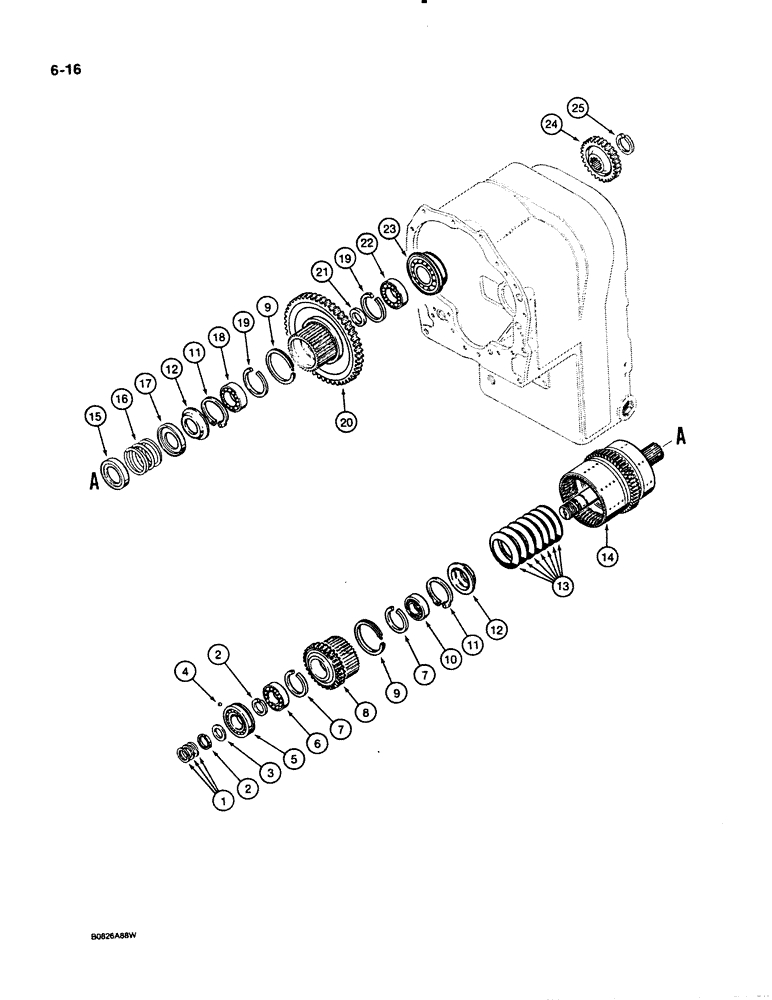

Запчасти Case 621 (6-016) - TRANSMISSION ASSEMBLY, FORWARD AND THIRD CLUTCH SHAFT PARTS, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

A17925

SPRING

RING - piston, clutch shaft

3шт.

2

L33518

RING

- retaining, rear bearing

2шт.

3

N8851

BACK PLATE

SPACER - end, rear bearing

1шт.

4

211-203

BALL,1/8" Dia

- 1/8", grade 25, chrome alloy steel

1шт.

5

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING - ball, clutch, rear

1шт.

6

D77046

BALL BEARING

BEARING - ball, clutch driven gear

1шт.

7

D77019

RING

- retaining, clutch bearing

2шт.

8

N13339

GEAR

- driven

1шт.

9

L33512

RING

- oil baffle

2шт.

10

S89657

BEARING

- ball, driven gear

1шт.

11

E114328

RING, SNAP

RING - snap, spring retainer

2шт.

12

N6812

RETAINER

- spring

2шт.

13

D80421

WASHER

SPRING - Belleville, piston return

7шт.

14

REF

INSTRUCTION

CLUTCH - forward and third, parts list Figure 6-16 (Ref #14 - Should refer to Figure 6-22, not 6-16. )

1шт.

15

S89661

RETAINER

SEAT - spring, rear

1шт.

16

L33487

VALVE SPRING

SPRING - piston return

1шт.

17

L33488

RETAINER

SEAT - spring, front

1шт.

18

L33515

BALL BEARING

BEARING - ball, third gear, rear

1шт.

19

L33516

RING

- retaining, bearing

2шт.

20

D77026

GEAR WHEEL

GEAR - third

1шт.

21

S89649

SPACER

- third gear

1шт.

22

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

BEARING - ball, third gear, front

1шт.

23

S300035

BALL BEARING

BEARING - ball, clutch, front

1шт.

24

S300026

GEAR

- drive, first gear

1шт.

25

S89666

RETAINER

RING - retaining, gear

1шт.
