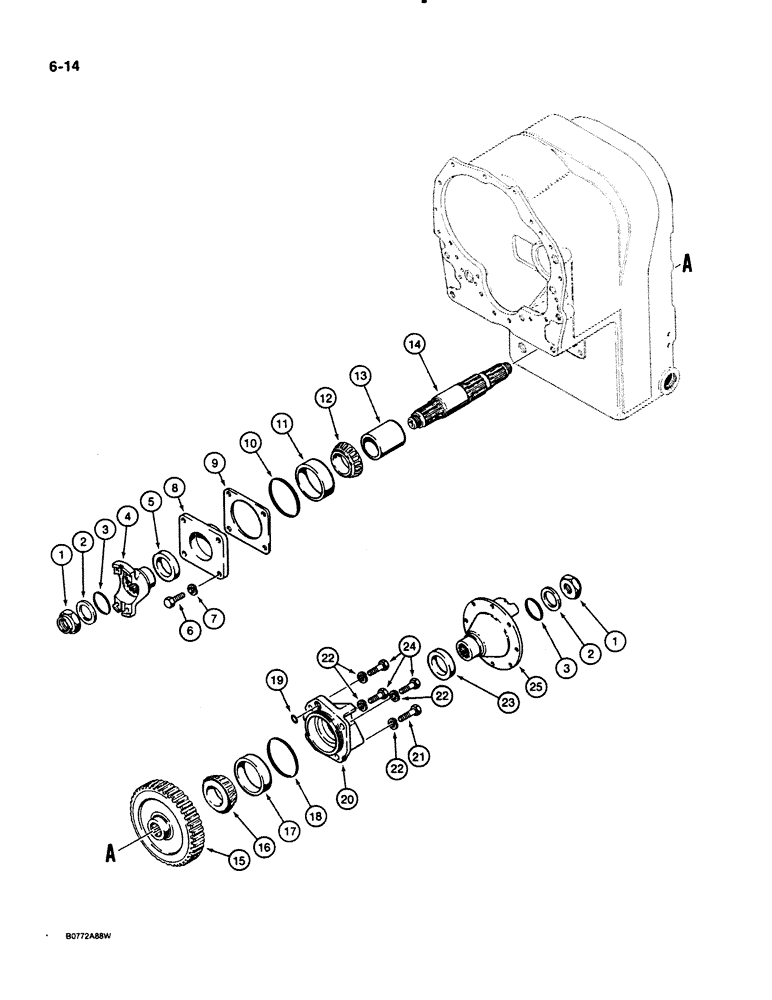

Запчасти Case 621 (6-014) - TRANSMISSION ASSEMBLY, OUTPUT SHAFT, FRONT AND REAR, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

1

131-487

LOCK NUT,1 1/4"-18

NUT - hex, self-locking, 1-1/4" - 18 NF, special

2шт.

2

A55828

WASHER

- special

2шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- flange

2шт.

4

S300024

FLANGE

- output, rear

1шт.

5

D77023

SEAL

- flange

1шт.

6

113-515

BOLT,Hex, 9/16" - 12 x 1-1/4", Gr 5, Full Thd

4шт.

7

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

8

S89700

CAP

SUPPORT - bearing, rear

1шт.

9

S89702

SHIM,.004" Thk

(0.10 mm) .004" Thk

1шт.

9

S89703

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

9

S89704

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

9

S89705

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- bearing seal

1шт.

11

N8875

CAP

CUP - tapered roller bearing, prior to P.I.N. JAK0020620

1шт.

11

S300742

CAP

CUP - tapered roller bearing, P.I.N. JAK0020620 through JAK0020900

1шт.

12

E104209

CONE

BEARING - tapered roller

1шт.

13

S300044

SPACER

- shaft, rear

1шт.

14

S300045

SHAFT

- output

1шт.

15

S300027

GEAR

- output shaft

1шт.

16

E104209

CONE

BEARING - tapered roller

1шт.

17

1968292C1

BEARING

CUP - tapered roller bearing, prior to P.I.N. JAK0020620

1шт.

17

S300743

CAP

CUP - tapered roller bearing, P.I.N. JAK0020620 through JAK0020900

1шт.

18

S92346

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- bearing seal

1шт.

19

S89712

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- bearing support, small

1шт.

20

S300046

CAP

SUPPORT - bearing

1шт.

21

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4", plated

1шт.

22

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

23

A55817

OIL SEAL,60.33mm ID x 79.55mm OD x 11.11mm Thk

- flange

1шт.

24

113-515

BOLT,Hex, 9/16" - 12 x 1-1/4", Gr 5, Full Thd

3шт.

25

S300025

FLANGE

- output, front

1шт.
