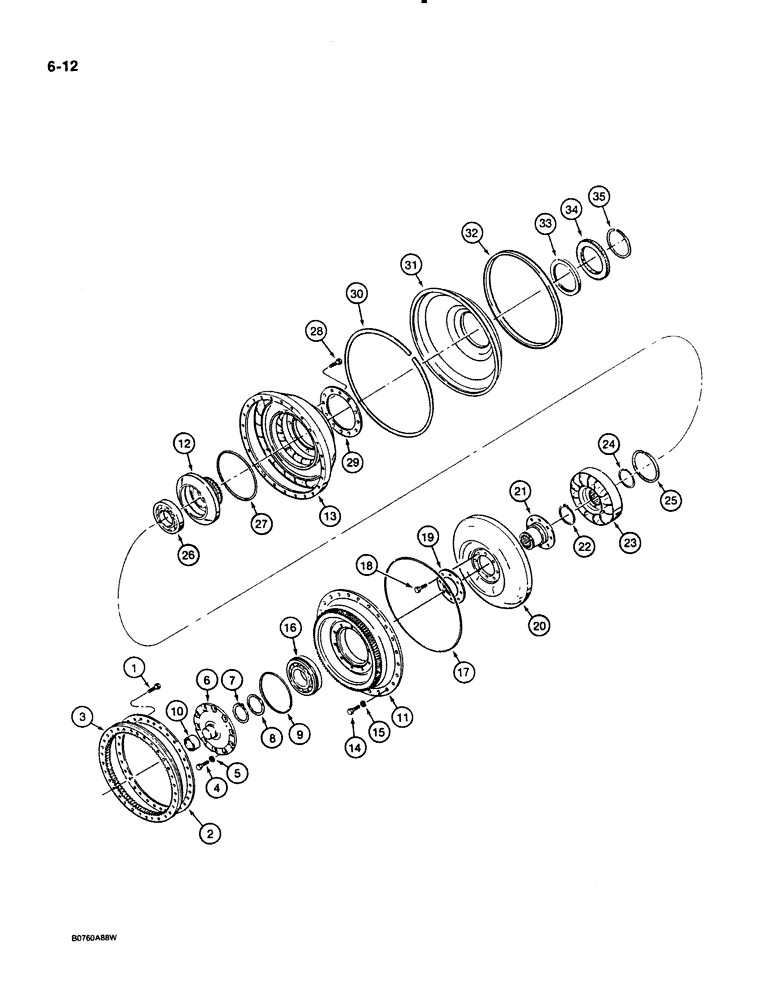

Запчасти Case 621 (6-012) - TRANSMISSION ASSEMBLY, TORQUE CONVERTER, PRIOR TO P.I.N. JAK0020901 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-4 for correct transmission, parts lists Figures 6-6 through 6-34

1шт.

S300050

GEAR

ring gear, Does not include bolts

1шт.

1

E156297

BOLT,5/16" - 18 x 1 1/2"

BOLT - special, ring gear

32шт.

2

E156296

LOCKING RING

RING - special, ring gear

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - ring, flywheel

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

6

N8850

CAP

- bearing

1шт.

7

N8866

RING

- snap, bearing, prior to P.I.N. JAK0020620

1шт.

7

S300740

RING, SNAP

RING - snap, bearing, P.I.N. JAK0020620 through JAK0020900

1шт.

8

N8849

WASHER

- bearing

1шт.

9

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

- bearing cap

1шт.

10

A18036

SLEEVE

- shaft

1шт.

11

N8847

COVER

- impeller

1шт.

12

D80318

HUB

- impeller

1шт.

13

S300029

IMPELLER

- torque converter

1шт.

14

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

24шт.

15

194-106

LOCK WASHER

- special, lock, 3/8", phosphate coat w/oil

24шт.

16

N8848

BALL BEARING,60 mm ID x 139.7 mm OD x 31 mm

BEARING - impeller cover

1шт.

17

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- sealing

1шт.

18

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, 3/8" - 24 NF x 3/4", epoxy coated

8шт.

REF #18 - PER PRINT DOES NOT COME EPOXY COATED, DLR MUST APPLY EPOXY FINISH.

1шт.

19

S300031

OIL SEAL

RING - spacer, turbine

1шт.

20

N7995

TURBINE

- torque converter

1шт.

21

N8846

HUB

- turbine

1шт.

22

N8865

RING

- snap, stator, prior to P.I.N. JAK0020620 (Replaces F35283)

1шт.

22

N8856

DRUM

RING - snap, stator, P.I.N. JAK0020620 through JAK0020900

1шт.

23

D86577

STATOR

- torque converter

1шт.

24

L30685

SPACER

- stator

1шт.

25

T38110

SNAP RING,5.00", Int, #500

Ring, Snap, , brg 5.00", Int, #500

1шт.

26

N7277

BALL BEARING,59.98mm ID x 130mm OD x 30.87mm W

BEARING - impeller hub

1шт.

27

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- impeller hub

1шт.

28

D80315

BOLT

- special, epoxy coated

12шт.

29

D80316

RING

- spacer

1шт.

30

L33461

RING

- retaining, oil baffle, prior to P.I.N. JAK0020620

1шт.

30

S300739

RING, SNAP

RING - retaining, oil baffle, P.I.N. JAK0020620 through JAK0020900

1шт.

31

L33459

BAFFLE

- oil

1шт.

32

L33460

RING

- seal, oil baffle

1шт.

33

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

- oil, impeller hub

1шт.

34

L33462

GEAR

- impeller hub

1шт.

35

A18009

RING

- retaining, impeller hub gear

1шт.
