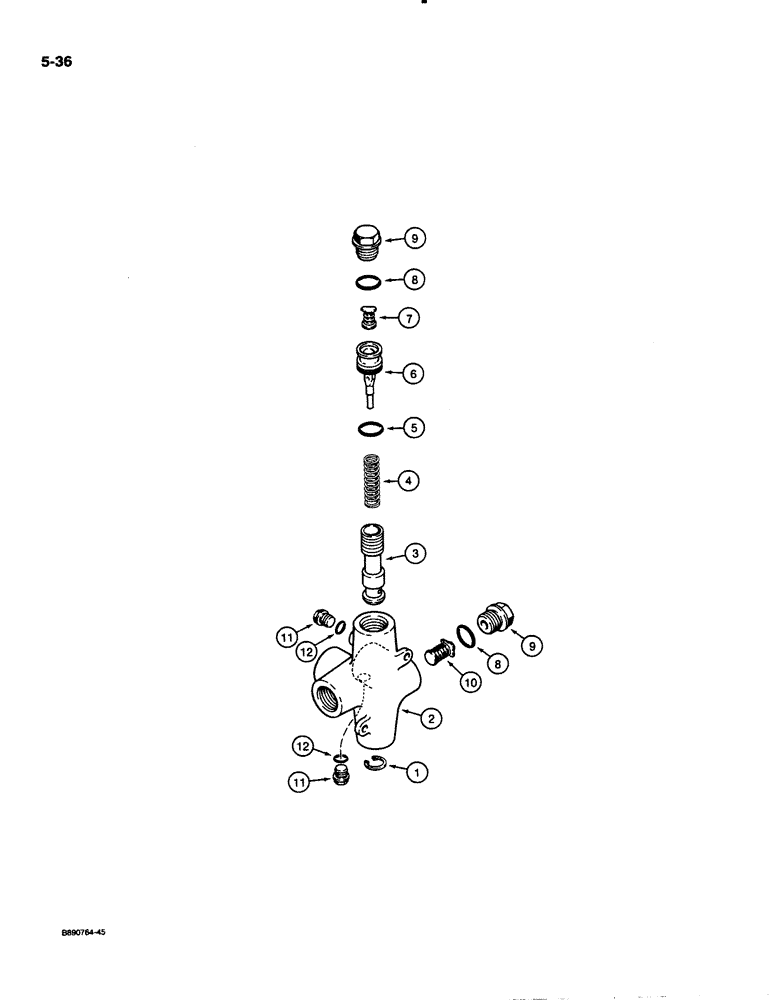

Запчасти Case 621 (5-36) - AUXILIARY STEERING VALVE, L125515, P.I.N. JAK0020901 AND AFTER (05) - STEERING

L125515

SELECTOR

VALVE ASSEMBLY - auxiliary steering, stand by

1шт.

1

933579R1

SNAP RING,M35, Int

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, stand by

1шт.

3

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

4

S300684

SPRING

- spool

1шт.

5

A52096

O-RING,2.5mm Thk x 38mm ID

- 38 mm x 2.5 mm wide, 70 duro

1шт.

Part of seal kit P/N S300686.

1шт.

6

S300682

SEAT

SPOOL - valve, large

1шт.

7

S300683

SPOOL

PLUNGER - spool

1шт.

8

3051823R1

O-RING

- 29 mm x 3 mm wide, 70 duro

2шт.

Part of seal kit P/N S300686.

1шт.

9

S300685

PLUG

- valve, large

2шт.

10

S300681

VALVE POPPET

SPOOL - valve, small

1шт.

11

S300695

PLUG

- valve, small

2шт.

12

E135039

O-RING,18 mm ID x 22 mm OD

- 18 mm x 1.5 mm wide

2шт.

Part of seal kit P/N S300686.

1шт.

S300686

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 8 and 12

1шт.
