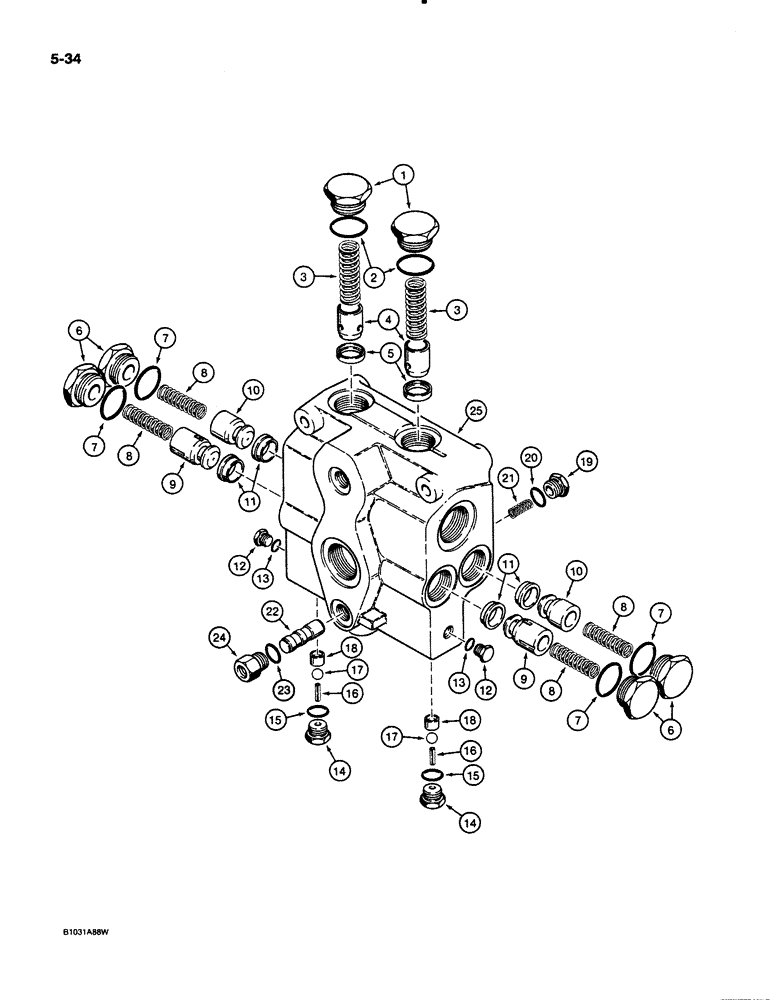

Запчасти Case 621 (5-34) - AUXILIARY STEERING VALVE, L123919, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

L123919

VALVE

ASSEMBLY - steering, 45 GPM

1шт.

1

N8180

CAP

PLUG - check valve

2шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

2шт.

3

1978240C1

SPRING

- check valve

2шт.

4

1978238C1

VALVE, CHECK

POPPET - check valve

2шт.

5

NSS

NOT SOLD SEPARAT

SEAT - check valve

2шт.

6

N8180

CAP

PLUG - check valve

4шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

4шт.

8

N8184

SPRING

- check valve

4шт.

9

1978237C1

VALVE, CHECK

POPPET - long, valve

2шт.

10

N8178

VALVE, CHECK

POPPET - short, valve

2шт.

11

N8175

SEAT

- check valve

4шт.

12

9410357

PLUG

- hydraulic, valve

2шт.

14

1978242C1

CAP

PLUG - check valve

2шт.

15

876106C1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

- plug

2шт.

16

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

17

1978239C1

BALL

- nylon, 7/16"

2шт.

18

NSS

NOT SOLD SEPARAT

SEAT - ball

2шт.

19

N8182

CAP

PLUG - valve

1шт.

20

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

21

N8185

SPRING

- valve

1шт.

22

N8176

PLUNGER

SPOOL - auxiliary steering valve

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- fitting

1шт.

24

N8179

CAP

FITTING - valve

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - auxiliary steering valve

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Plug

2шт.
