(5-30) - AUXILIARY STEERING PUMP, L123918, PRIOR TO P.I.N. JAK0020901

Запчасти Case 621 (5-30) - AUXILIARY STEERING PUMP, L123918, PRIOR TO P.I.N. JAK0020901 (05) - STEERING

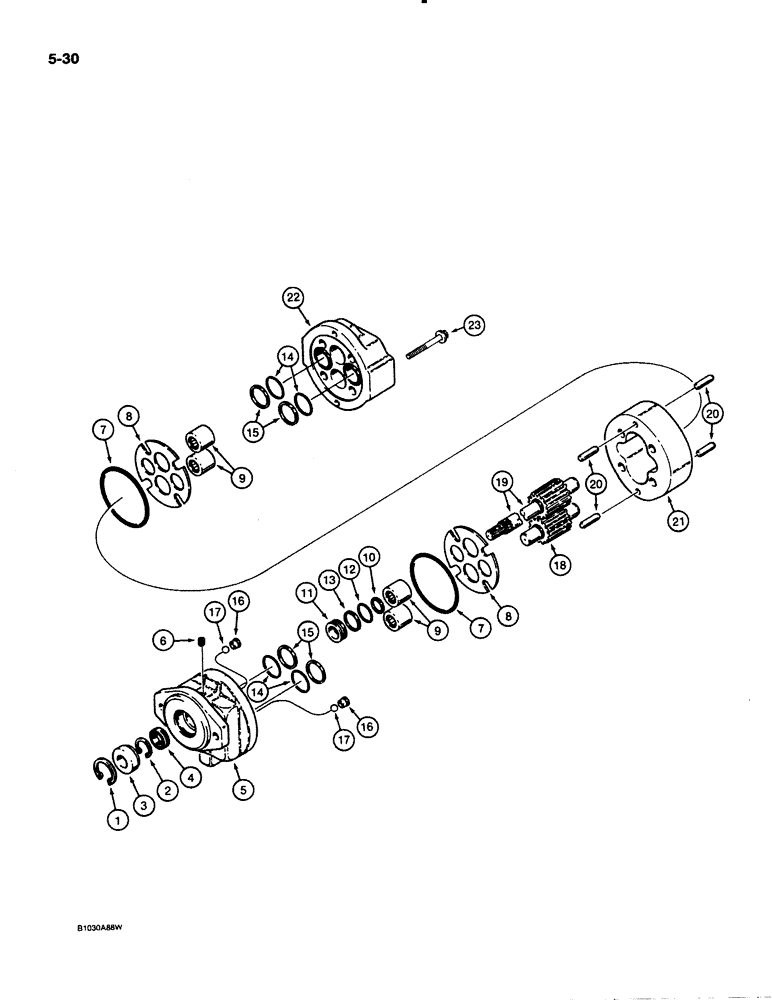

Схема запчастей Case 621 - (5-30) - AUXILIARY STEERING PUMP, L123918, PRIOR TO P.I.N. JAK0020901 (05) - STEERING
14
12
15
22
18
14
7
8
5
13
8
1
4
9
16
17
20
16
3
6
11
2
15
19
10
9
21
23
17
7
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L123918

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering

1шт.

1

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, , brg 1.852", Int, #185

1шт.

2

58102R1

SNAP RING,1.312", Int, #131

Seal 1.312", Int, #131

1шт.

3

N14456

WIPER

SEAL - lip, shaft

1шт.

4

N8223

SEAL

- shaft

1шт.

5

1978231C1

ADAPTER

COVER - shaft end

1шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

7

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

- cover

2шт.

8

D32078

PLATE

- wear

2шт.

9

N8227

BEARING

- roller, shaft

4шт.

10

N8222

RING

- seal, drive shaft

1шт.

11

N8221

BUSHING

- drive shaft

1шт.

12

343900R1

O-RING,1.051" ID x 0.07" Width

- bushing

1шт.

13

1978235C1

RING

- backup, O-ring

1шт.

14

N8225

O-RING

- wear plate

4шт.

15

N8224

O-RING

RING - backup, O-ring

4шт.

16

1978236C1

RETAINER

- ball

2шт.

17

17011R1

BALL

- steel

2шт.

18

N8220

SHAFT

GEAR - driven

1шт.

19

N8219

SHAFT

GEAR - drive

1шт.

20

20138R1

PIN

- dowel, pump

4шт.

21

N8218

HOUSING

- gear

1шт.

22

1978233C1

COVER

- closed end

1шт.

23

1978232C1

12 PT SCREW

BOLT - Ferry head, 1/2" - 20 NC x 4"

4шт.
