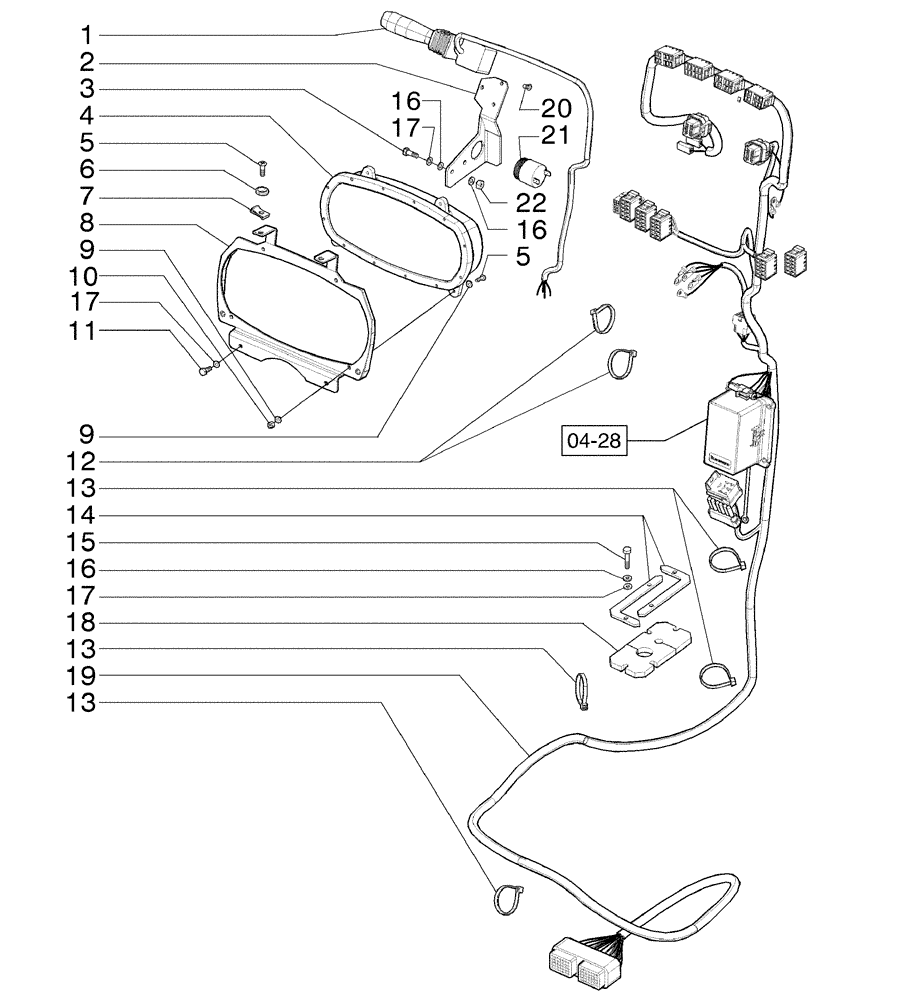

Запчасти Case 865B AWD (04-27[01]) - INSTRUMENT PANEL, FRONT CONSOLES (04) - ELECTRICAL SYSTEMS

1

73163234

SWITCH

1шт.

2

84192468

SUPPORT

1шт.

3

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

4

84141605

INSTRUMENT PANEL

1шт.

4

84141605R

REMAN-ELECT MONITOR

1шт.

4

84141605C

CORE-MONITOR

Return Number

1шт.

5

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

6шт.

6

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

6шт.

7

833-40306

SPRING NUT,M6, U

6шт.

8

84192789

SUPPORT

1шт.

9

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

10

86625075

NUT,M4 x 0.7, Cl 8

4шт.

11

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

6шт.

12

75201641

CLAMP

4шт.

13

75201642

CLAMP

5шт.

14

84259103

STEEL PLATE

2шт.

15

86508617

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9

4шт.

16

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

17

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

6шт.

18

84259096

RUBBER SEAL

1шт.

19

84161623

HARNESS

1шт.

20

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

3шт.

21

75241340

HORN

1шт.
