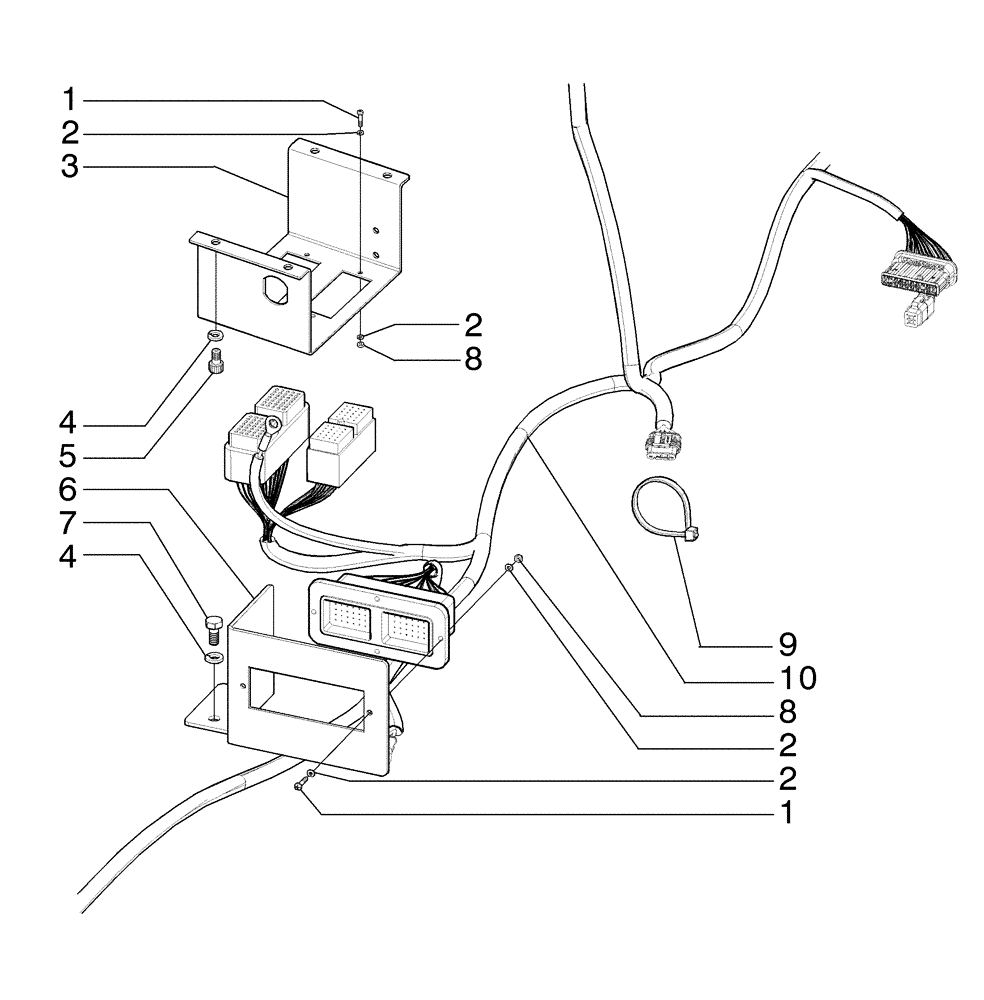

Запчасти Case 865B AWD (04-09[01]) - ELECTRICAL SYSTEM, REAR FRAME (04) - ELECTRICAL SYSTEMS

1

87619755

SCREW,Phillips Drive, Pan HD, M3 x 16mm, Cl 4.8

4шт.

2

86509827

LOCK WASHER,M3

12шт.

3

84323800

SUPPORT

1шт.

4

10516671

LOCK WASHER

6шт.

5

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

6

84323803

SUPPORT

1шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

8

86508812

NUT,M3, Cl 8

6шт.

9

75201642

CLAMP

10шт.

10

84180529

HARNESS

1шт.

10

84577273

WIRE HARNESS

1шт.
