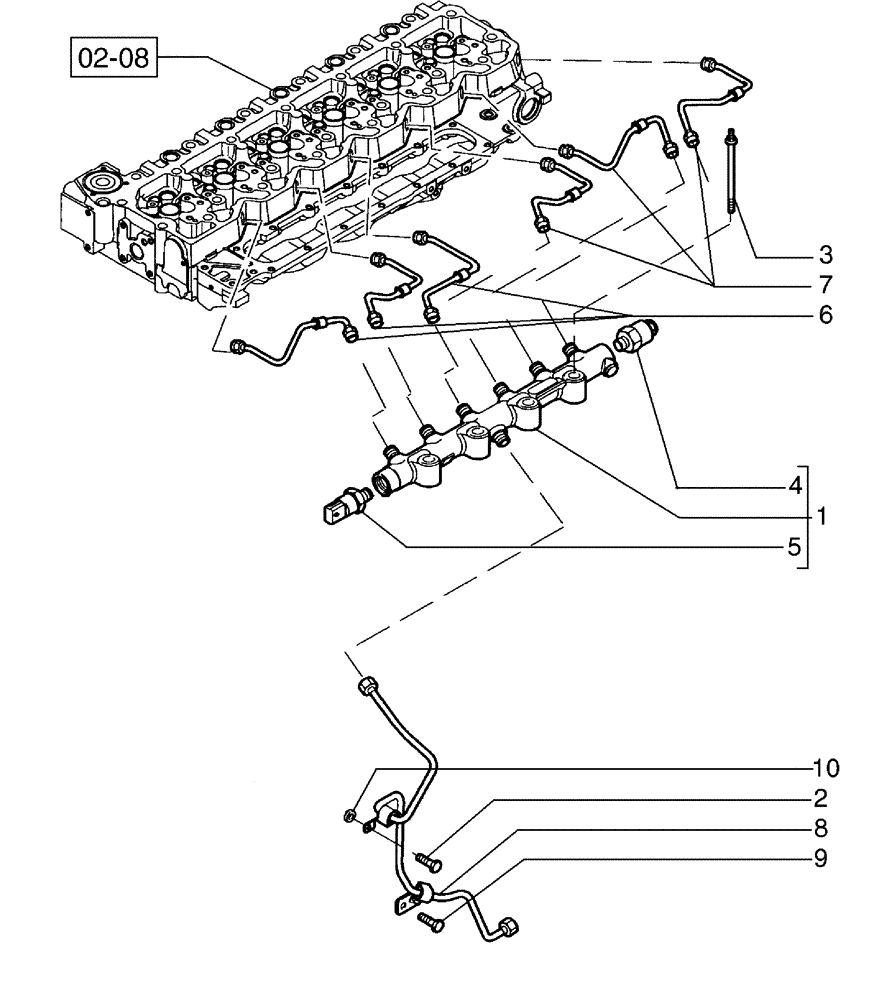

Запчасти Case 865B AWD (03-09[01]) - FUEL INJECTION TUBES (03) - FUEL SYSTEM

1

2859144

MANIFOLD

ASSY; Incl. Ref 4, 5

1шт.

2

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

3

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

Special

4шт.

4

2854543

VALVE PRESSURE RELIE

Pressure

1шт.

5

2859145

SENSOR

Pressure

1шт.

6

2857017

PIPE

Fuel Supply

3шт.

7

2857046

PIPE

Fuel Supply

3шт.

8

2857048

PIPE

Fuel Supply

1шт.

9

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.

10

2852434

SPACER

8.5 ID x 18 OD x 5 lg; Replaces 2852434

1шт.
