Запчасти Case 865B AWD (03-08[01]) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

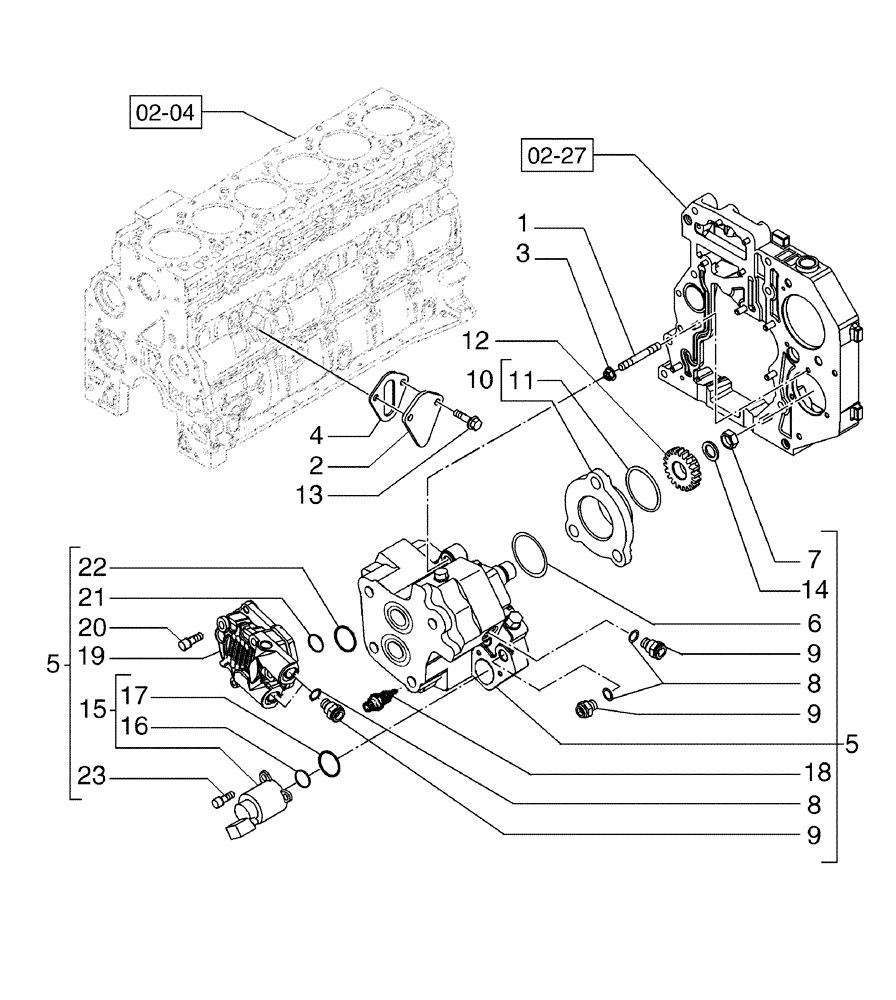

Схема запчастей Case 865B AWD - (03-08[01]) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
1
8
23
13
20
9
8
12
9
5
7
9
6
02-27
10
18
15
5
4
11
02-04
3
22
2
21
17
14
19

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

Replaces 4899003

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

STUD, M8X1.25X50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

Incl. Ref 6 - 9, 14

1шт.

5

4898921R

REMAN-INJECTION PUMP

Reman for New PN 4898921

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

84385110R

REMAN-INJECTION PUMP

865B, 885B, Both AWD MOTOR GRADER TIER 3 (NEW CAB) (10/11-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18X1.5

1шт.

8

93156604

GASKET

Replaces 4891385

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

M12, Quick Disconnect

4шт.

10

2852804

HUB

ASSY; Adapter, Incl. Ref 11

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

Fuel Pump

1шт.

13

87803136

SCREW

Flange, M8 x 20; Replaces 2852234

2шт.

14

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

Spring; Replaces 4890635

1шт.

15

42541851

SOLENOID

1шт.

16

42541850

O-RING

1шт.

17

42541849

O-RING

1шт.

18

42550486

VALVE

1шт.

19

42547619

FUEL PUMP

4шт.

20

42550487

SCREW

1шт.

21

42550488

O-RING

1шт.

22

42548060

O-RING

1шт.

23

42550932

SCREW

3шт.

Выбрано товаров: 27
